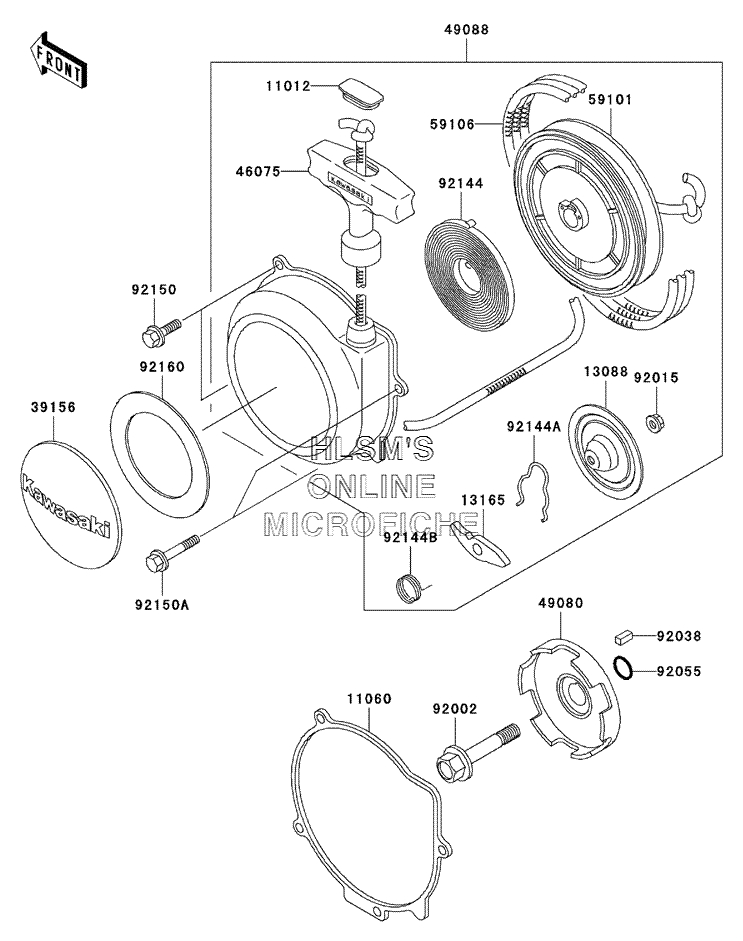

STARTER - RECOIL для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1420 CAP, RECOIL GRIPCAP, RECOIL GRIP
-
1106011060-1696 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1308813088-1073 PLATE-FRICTION, RECOILPLATE-FRICTION, RECOIL
-
1316513165-1123 PAWL, RECOILPAWL, RECOIL
-
3915639156-1527 PAD, RECOIL STARTERPAD, RECOIL STARTER
-
4607546075-1073 GRIP, RECOILGRIP, RECOIL
-
4908049080-1055 PULLEY-STARTINGPULLEY-STARTING
-
4908849088-1055 STARTER-RECOILSTARTER-RECOIL
-
5910159101-1109 REELREEL
-
5910659106-1103 ROPEROPE
-
9200292002-1296 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
9201592015-1464 NUT, 6MMNUT, 6MM
-
9203892038-1051 KEY, SUNKKEY, SUNK
-
9205592055-1235 RING-O, 16.8MMRING-O, 16.8MM
-
9214492144-1205 SPRING, RECOILSPRING, RECOIL
-
92144A92144-1206 SPRING, FRICTIONSPRING, FRICTION
-
92144B92144-1207 SPRING, RETURNSPRING, RETURN
-
9215092150-1916 BOLT, 6X14BOLT, 6X14
-
92150A92150-1917 BOLTBOLT
-
9216092160-1691 DAMPER, RECOIL STARTERDAMPER, RECOIL STARTER
