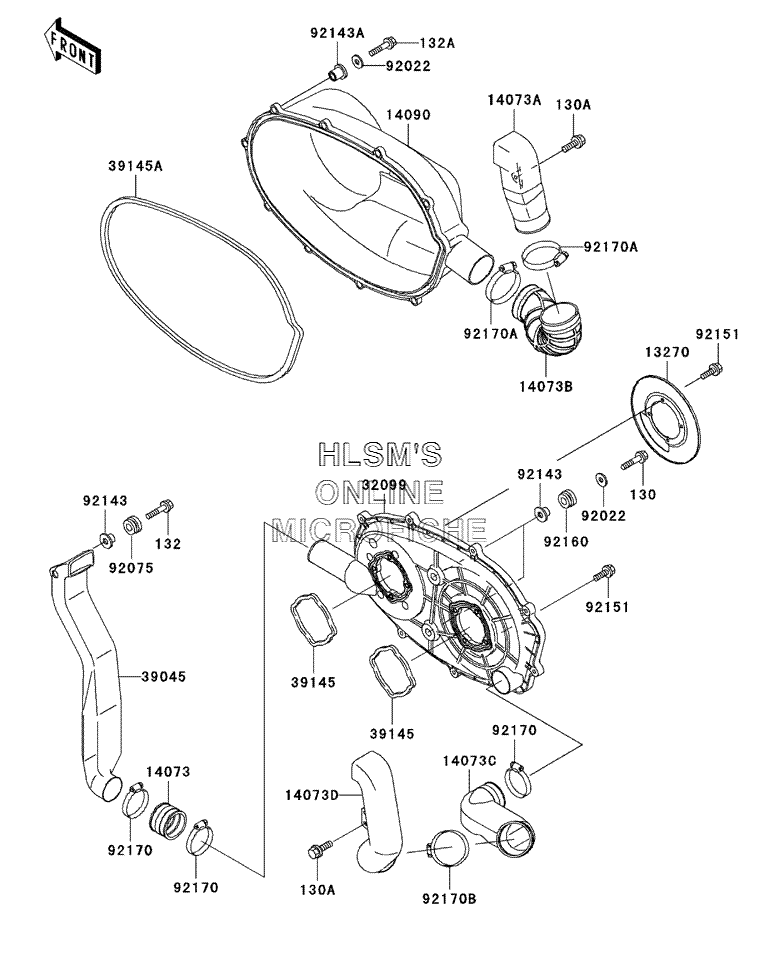

CONVERTER COVER для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
130130B0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
130A130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
132132G0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132A132J0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
1327013270-1989 PLATEPLATE
-
1407314073-1324 DUCTDUCT
-
14073A14073-1678 DUCT, SNORKEL, EXDUCT, SNORKEL, EX
-
14073B14073-1680 DUCT, SNORKEL, EXDUCT, SNORKEL, EX
-
14073C14073-1683 DUCT, SNORKEL, EXDUCT, SNORKEL, EX
-
14073D14073-1684 DUCT, SNORKEL, EXDUCT, SNORKEL, EX
-
1409014090-1917 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
3209932099-1191 CASE, BELT CONVERTERCASE, BELT CONVERTER
-
3904539045-1061 DUCT-ASSYDUCT-ASSY
-
3914539145-1110 TRIM-SEALTRIM-SEAL
-
39145A39145-1113 TRIM-SEAL, CONVERTER COVERTRIM-SEAL, CONVERTER COVER
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1353 COLLARCOLLAR
-
92143A92143-1888 COLLARCOLLAR
-
9215192151-1353 BOLT, 6X18BOLT, 6X18
-
9216092160-1167 DAMPERDAMPER
-
9217092170-1674 CLAMPCLAMP
-
92170A92170-1763 CLAMPCLAMP
-
92170B92170-1764 CLAMPCLAMP
