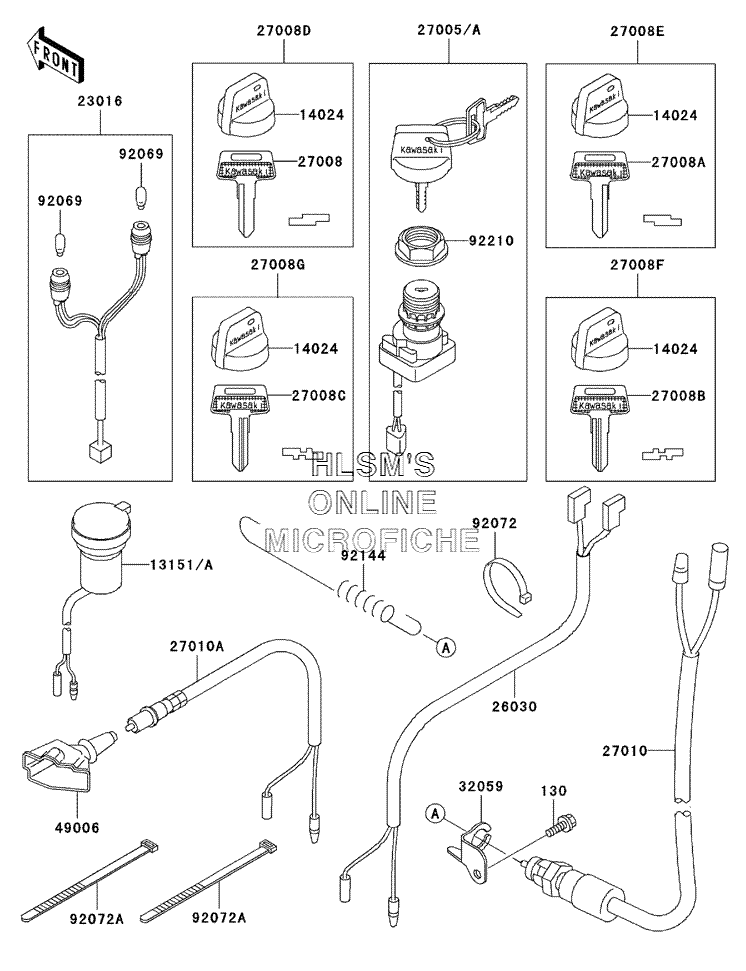

IGNITION SWITCH для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
13151A13151-1094 SWITCH-COMP, D.C.TERMINALSWITCH-COMP, D.C.TERMINAL
-
1402414024-1551 COVER, KEY (OPT)COVER, KEY (OPT)
-
2301623016-1083 LAMP-ASSY, NEUTRAL AND REVERSELAMP-ASSY, NEUTRAL AND REVERSE
-
2603026030-1058 HARNESSHARNESS
-
27005A27005-1229 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1041 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008A27008-1042 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008B27008-1043 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008C27008-1044 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008D27008-1132 KEY-LOCK, BLANK, W/COVER (OPT)KEY-LOCK, BLANK, W/COVER (OPT)
-
27008E27008-1133 KEY-LOCK, BLANK, W/COVER (OPT)KEY-LOCK, BLANK, W/COVER (OPT)
-
27008F27008-1134 KEY-LOCK, BLANK, W/COVER (OPT)KEY-LOCK, BLANK, W/COVER (OPT)
-
27008G27008-1135 KEY-LOCK, BLANK, W/COVER (OPT)KEY-LOCK, BLANK, W/COVER (OPT)
-
2701027010-025 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
27010A27010-1294 SWITCH, BRAKESWITCH, BRAKE
-
3205932059-1136 BRACKET-SWITCH, REAR BRAKEBRACKET-SWITCH, REAR BRAKE
-
4900649006-1261 BOOTBOOT
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-056 BAND, L=186BAND, L=186
-
9214492144-1343 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
9221092210-1109 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
