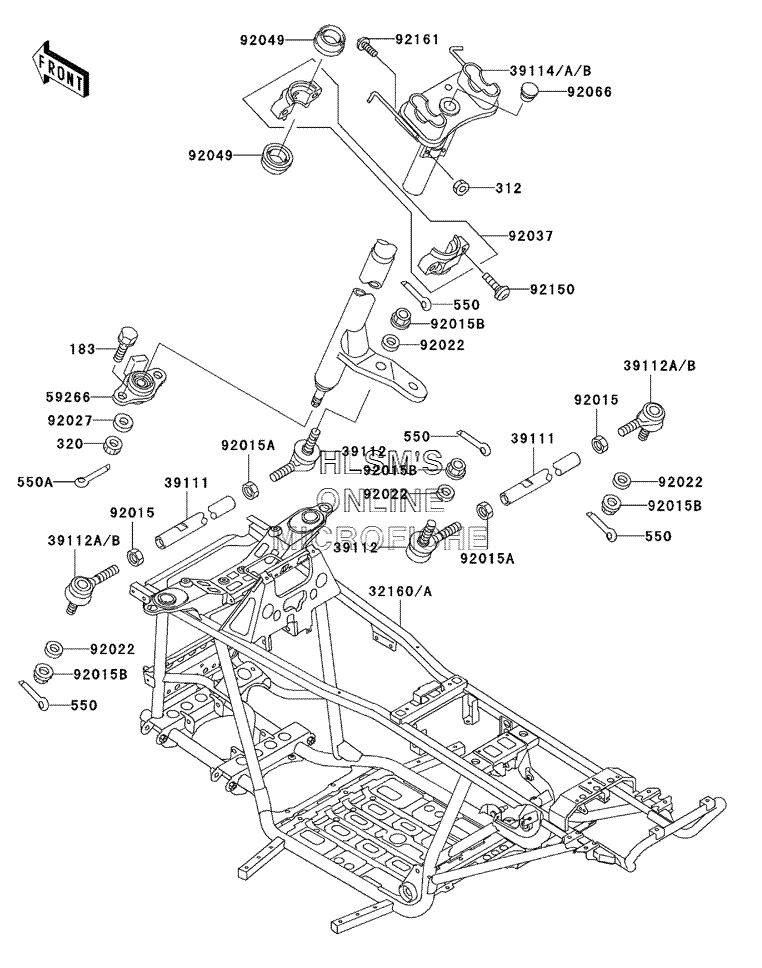

FRAME для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
183183G0822 BOLT-UPSET-WS-SMALL, 8X22BOLT-UPSET-WS-SMALL, 8X22
-
312312C0600 NUT-HEX, 6MM (BLACK)NUT-HEX, 6MM (BLACK)
-
320320H1000 NUT-CASTLENUT-CASTLE
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
32160A32160-1675 FRAME-COMPFRAME-COMP
-
3911139111-1090 ROD-TIEROD-TIE
-
3911239112-1063 RODEND-TIERODEND-TIE
-
39112B39112-1083 RODEND-TIERODEND-TIE
-
39114B39114-1089 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
5926659266-1105 JOINT-BALLJOINT-BALL
-
9201592015-1460 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015A92015-1494 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015B92015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9202292022-239 WASHER, 10.5X20X1WASHER, 10.5X20X1
-
9202792027-1817 COLLAR, 10X21.3X7COLLAR, 10X21.3X7
-
9203792037-1975 CLAMP, STEERING SHAFTCLAMP, STEERING SHAFT
-
9204992049-1278 SEAL-OIL, SR7 25 34 7.8 NSSEAL-OIL, SR7 25 34 7.8 NS
-
9206692066-1220 PLUGPLUG
-
9215092150-1058 BOLTBOLT
-
9216192161-1101 DAMPERDAMPER
