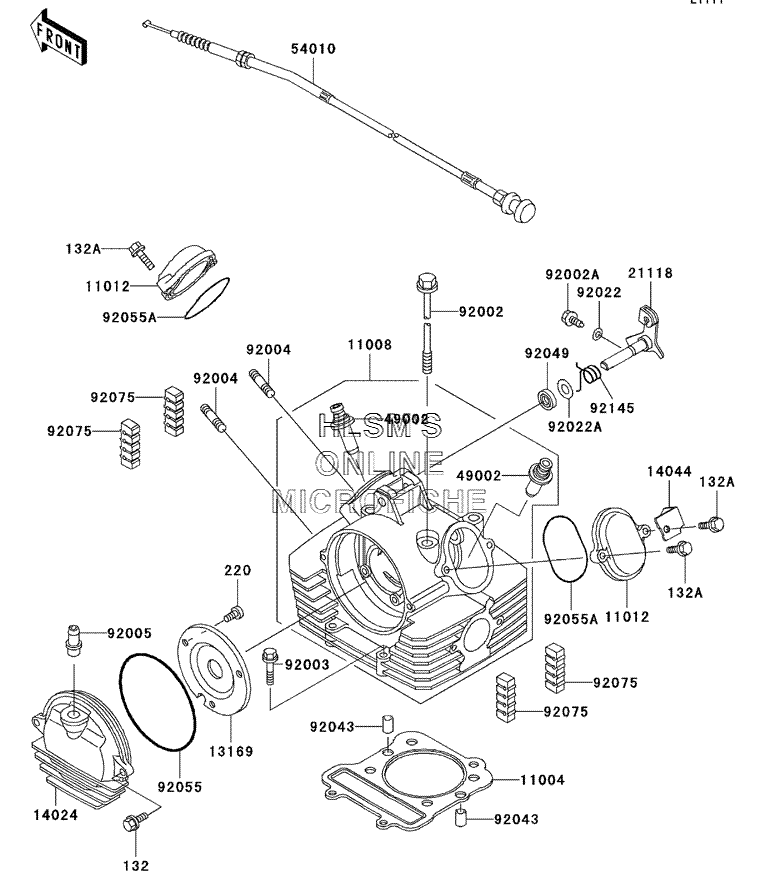

CYLINDER HEAD для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
132132Y0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132Y0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
220220B0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
1100411004-1340 GASKET-HEADGASKET-HEAD
-
1100811008-1292 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1101211012-1486 CAP, ROCKER ARMCAP, ROCKER ARM
-
1316913169-1961 PLATE, CAMSHAFT COVERPLATE, CAMSHAFT COVER
-
1402414024-1060 COVER, CAMSHAFTCOVER, CAMSHAFT
-
1404414044-1095 HOLDER-CABLEHOLDER-CABLE
-
2111821118-1081 DECOMPRESSORDECOMPRESSOR
-
4900249002-1092 GUIDE-VALVEGUIDE-VALVE
-
5401054010-1113 CABLE, DECOMPRESSORCABLE, DECOMPRESSOR
-
9200292002-1515 BOLT, 8X233BOLT, 8X233
-
92002A92002-1962 BOLT, FLANGED-SMALL, 6X8.1X2.5BOLT, FLANGED-SMALL, 6X8.1X2.5
-
9200392003-229 BOLT, FLANGED, 6X32BOLT, FLANGED, 6X32
-
9200492004-1121 STUD, 8X30STUD, 8X30
-
9200592005-1124 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204992049-1542 SEAL-OILSEAL-OIL
-
9205592055-107 RING-O, 99X3.1RING-O, 99X3.1
-
92055A92055-112 RING-O, 53.5X2.6RING-O, 53.5X2.6
-
9207592075-1657 DAMPERDAMPER
-
9214592145-1132 SPRINGSPRING
