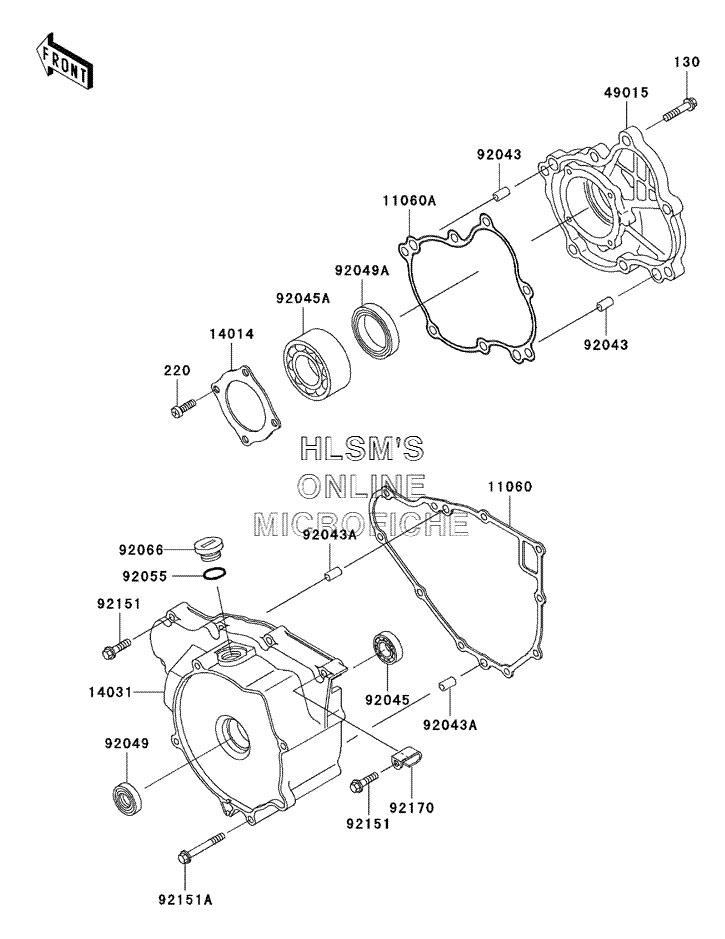

ENGINE COVER(S) для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
130130P0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
220220B0612 SCREW-PAN-CROS, 6X12SCREW-PAN-CROS, 6X12
-
1106011060-1656 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11060A11060-1850 GASKETGASKET
-
1401414014-1138 PLATE-POSITIONPLATE-POSITION
-
1403114031-1339 COVER-GENERATORCOVER-GENERATOR
-
4901549015-1055 COVER-CRANKCASECOVER-CRANKCASE
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
92043A92043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1266 BEARING-BALL, 6903C3BEARING-BALL, 6903C3
-
92045A92045-1329 BEARING-BALL, 5206BEARING-BALL, 5206
-
9204992049-1317 SEAL-OIL, TC25356SEAL-OIL, TC25356
-
92049A92049-1451 SEAL-OIL, TC30458SEAL-OIL, TC30458
-
9205592055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-1163 PLUG, COVERPLUG, COVER
-
9215192151-1139 BOLT, 6X30BOLT, 6X30
-
92151A92151-1430 BOLT, 6X80BOLT, 6X80
-
9217092170-1863 CLAMPCLAMP
