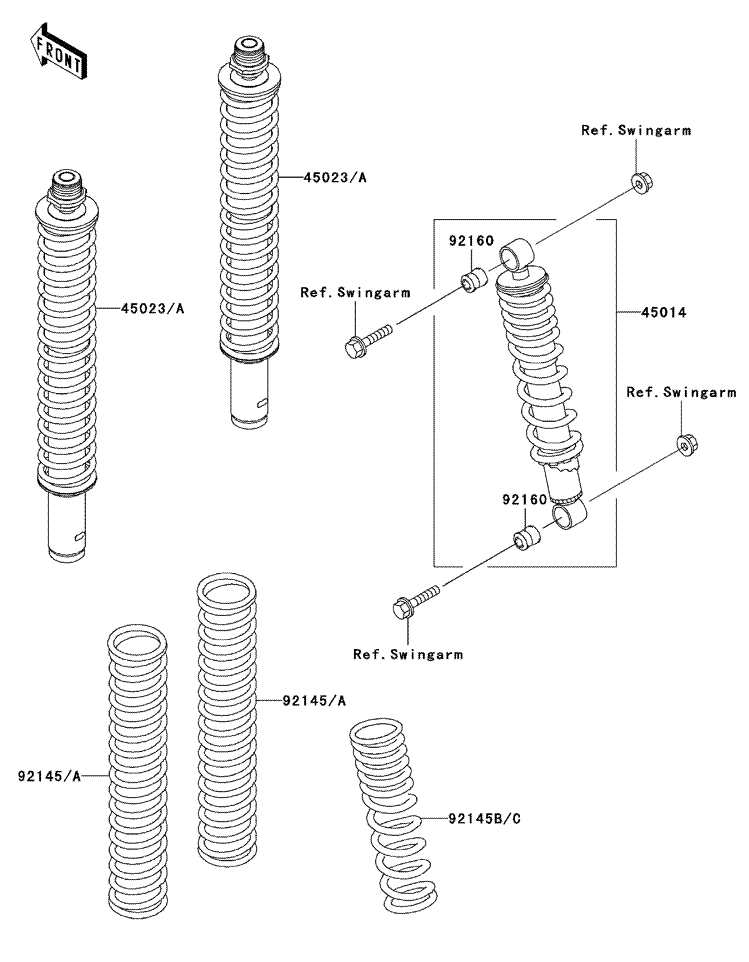

SUSPENSION - SHOCK ABSORBER для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
4501445014-1692 SHOCKABSORBER, REARSHOCKABSORBER, REAR
-
45023A45023-1012 STRUT, FRONTSTRUT, FRONT
-
9214592145-1225 SPRING, STRUT, K=9.8N/MMSPRING, STRUT, K=9.8N/MM
-
92145B92145-1271 SPRING, SHOCK, K=22.6N/MMSPRING, SHOCK, K=22.6N/MM
-
9216092160-1777 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
