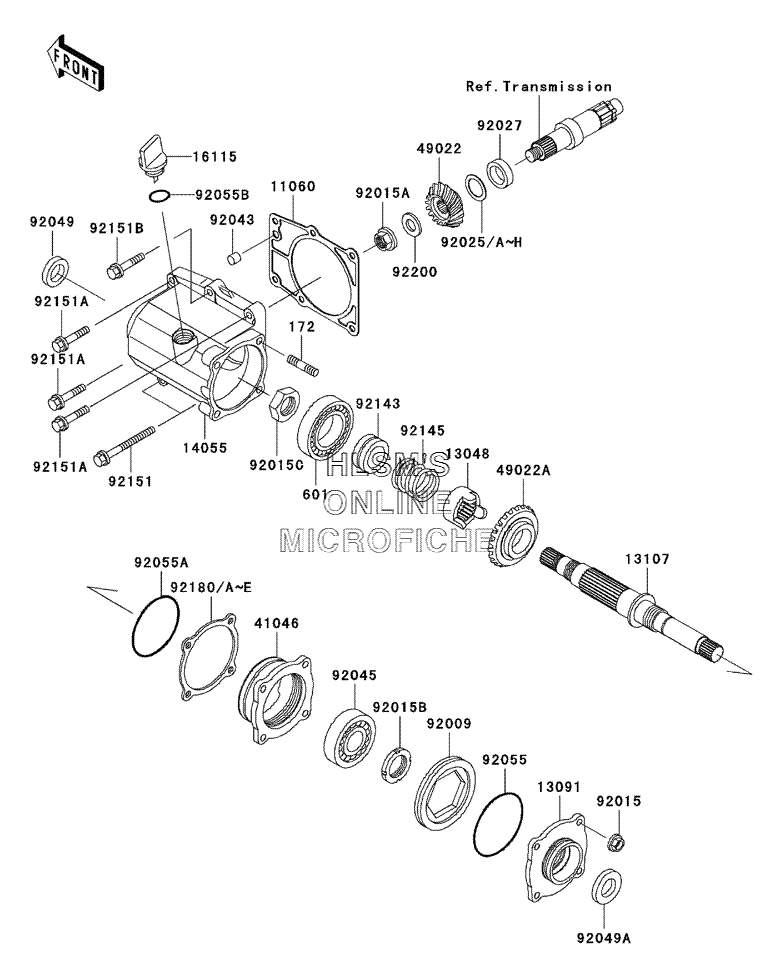

FRONT BEVEL GEAR для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
1106011060-1728 GASKET, GEAR CASEGASKET, GEAR CASE
-
1304813048-1080 CAM-DAMPERCAM-DAMPER
-
1309113091-1950 HOLDERHOLDER
-
1310713107-1388 SHAFTSHAFT
-
1405514055-1127 CASE-GEARCASE-GEAR
-
1611516115-1065 CAP-OIL FILLERCAP-OIL FILLER
-
4104641046-1094 HOUSING-BEARINGHOUSING-BEARING
-
4902249022-1151 GEAR-BEVEL, 14TGEAR-BEVEL, 14T
-
49022A49022-1180 GEAR-BEVEL, 20TGEAR-BEVEL, 20T
-
9200992009-1667 SCREW-SET-SOCKET, 75X10SCREW-SET-SOCKET, 75X10
-
9201592015-1402 NUT, 8MMNUT, 8MM
-
92015A92015-1581 NUT, 16MMNUT, 16MM
-
92015B92015-1858 NUT, 30MMNUT, 30MM
-
92015C92015-1990 NUT, 26MMNUT, 26MM
-
9202592025-1688 SHIM, 25.3X36X0.15SHIM, 25.3X36X0.15
-
92025A92025-1689 SHIM, 25.3X36X0.50SHIM, 25.3X36X0.50
-
92025B92025-1690 SHIM, 25.3X36X0.60SHIM, 25.3X36X0.60
-
92025C92025-1691 SHIM, 25.3X36X0.70SHIM, 25.3X36X0.70
-
92025D92025-1692 SHIM, 25.3X36X0.80SHIM, 25.3X36X0.80
-
92025E92025-1693 SHIM, 25.3X36X0.90SHIM, 25.3X36X0.90
-
92025F92025-1694 SHIM, 25.3X36X1.00SHIM, 25.3X36X1.00
-
92025G92025-1695 SHIM, 25.3X36X1.10SHIM, 25.3X36X1.10
-
92025H92025-1696 SHIM, 25.3X36X1.20SHIM, 25.3X36X1.20
-
9202792027-1968 COLLAR, 25.3X36X10COLLAR, 25.3X36X10
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
9204592045-1190 BEARING-BALL, 6306SH2BEARING-BALL, 6306SH2
-
9204992049-1395 SEAL-OIL, AE1252E0SEAL-OIL, AE1252E0
-
92049A92049-1400 SEAL-OIL, AE1265E0SEAL-OIL, AE1265E0
-
9205592055-081 RING-ORING-O
-
92055A92055-1230 RING-O, 79.5MMRING-O, 79.5MM
-
92055B92055-2185 RING-O, 20X3RING-O, 20X3
-
9214392143-1900 COLLARCOLLAR
-
9214592145-1209 SPRING, BEVELSPRING, BEVEL
-
9215192151-1431 BOLT, 8X100BOLT, 8X100
-
92151A92151-1432 BOLT, 8X35BOLT, 8X35
-
92151B92151-1446 BOLT, 8X32BOLT, 8X32
-
9218092180-1126 SHIM, T=1.00SHIM, T=1.00
-
92180A92180-1127 SHIM, T=0.10SHIM, T=0.10
-
92180B92180-1128 SHIM, T=0.15SHIM, T=0.15
-
92180C92180-1129 SHIM, T=0.50SHIM, T=0.50
-
172172G0830 BOLT-STUD, 8X30BOLT-STUD, 8X30
-
601601A6209 BEARING-BALLBEARING-BALL
-
92180D92180-1130 SHIM, T=0.80SHIM, T=0.80
-
92180E92180-1131 SHIM, T=1.20SHIM, T=1.20
-
9220092200-1104 WASHER, 16.3X31X3.2WASHER, 16.3X31X3.2
