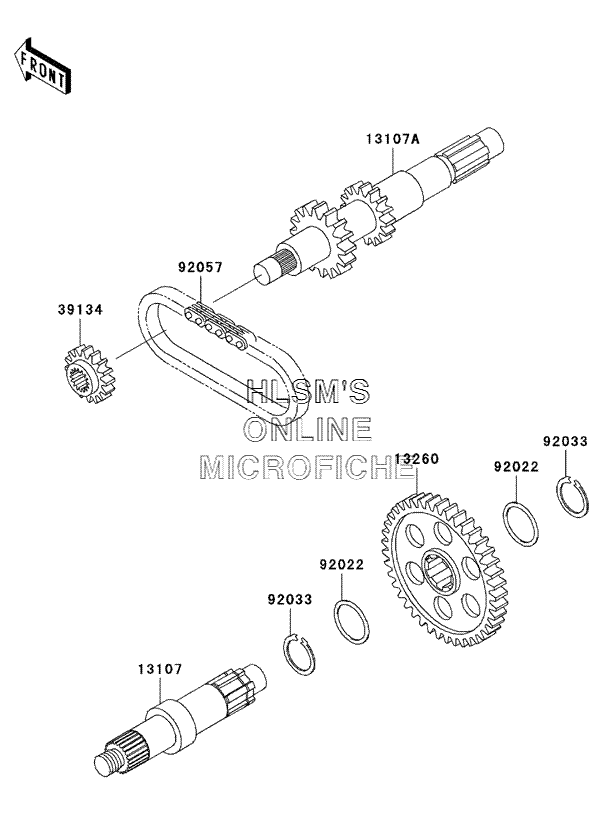

TRANSMISSION для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
1310713107-1390 SHAFT, OUTPUTSHAFT, OUTPUT
-
13107A13107-1400 SHAFT, INPUTSHAFT, INPUT
-
1326013260-1719 GEAR, OUTPUT (44 TEETH)GEAR, OUTPUT (44 TEETH)
-
3913439134-1059 SPROCKET-DRIVE, REVERSE (18 TEETH)SPROCKET-DRIVE, REVERSE (18 TEETH)
-
9202292022-1731 WASHER, 28.1X34X1.0WASHER, 28.1X34X1.0
-
9203392033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9205792057-1421 CHAIN, REVERSE, 81RH2520CHAIN, REVERSE, 81RH2520
