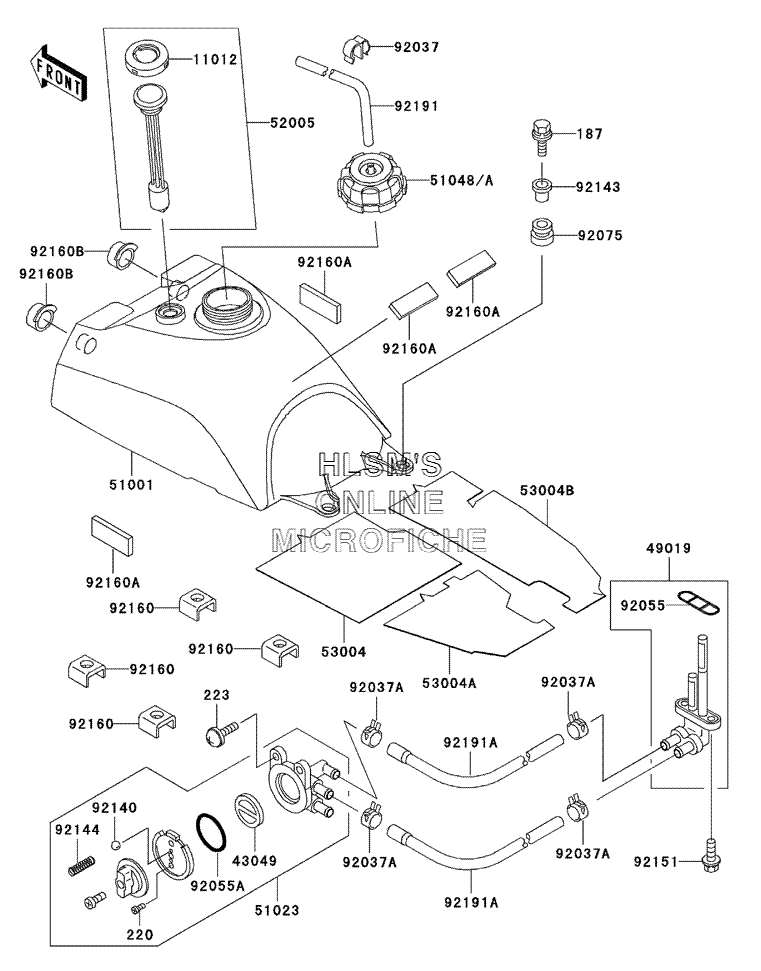

FUEL TANK для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска
-
№АртикулНазвание
-
187187G0635 BOLT-UPSET-WSP, 6X35BOLT-UPSET-WSP, 6X35
-
220220B0308 SCREW-PAN-CROS, 3X8SCREW-PAN-CROS, 3X8
-
223223C0610 SCREW-PAN-WS-CROS, 6X10SCREW-PAN-WS-CROS, 6X10
-
1101211012-1627 CAP, FUEL GAUGECAP, FUEL GAUGE
-
4304943049-1066 PACKING, TAP VALVEPACKING, TAP VALVE
-
4901949019-1084 FILTER-FUELFILTER-FUEL
-
5100151001-1542 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-1247 TAP-ASSY, FUELTAP-ASSY, FUEL
-
51048A51048-1133 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
5200552005-1131 GAUGE, FUELGAUGE, FUEL
-
5300453004-1125 MAT, FUEL TANK (LEFT)MAT, FUEL TANK (LEFT)
-
53004A53004-1126 MAT, FUEL TANK (CENTER/REAR)MAT, FUEL TANK (CENTER/REAR)
-
53004B53004-1127 MAT, FUEL TANK (RIGHT)MAT, FUEL TANK (RIGHT)
-
9203792037-1458 CLAMPCLAMP
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
9205592055-1112 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
92055A92055-1419 RING-O, TAP LEVERRING-O, TAP LEVER
-
9207592075-1787 DAMPERDAMPER
-
9214092140-1051 BALL, STAINLESS, 5/32"BALL, STAINLESS, 5/32"
-
9214392143-1100 COLLAR, L=19.6COLLAR, L=19.6
-
9214492144-1212 SPRING, FUEL TAP KNOBSPRING, FUEL TAP KNOB
-
9215192151-1198 BOLT, 6X14BOLT, 6X14
-
9216092160-1773 DAMPERDAMPER
-
92160A92160-1834 DAMPERDAMPER
-
92160B92160-1909 DAMPERDAMPER
-
9219192191-1107 TUBE, 5X9.4X450TUBE, 5X9.4X450
-
92191A92191-1247 TUBETUBE
