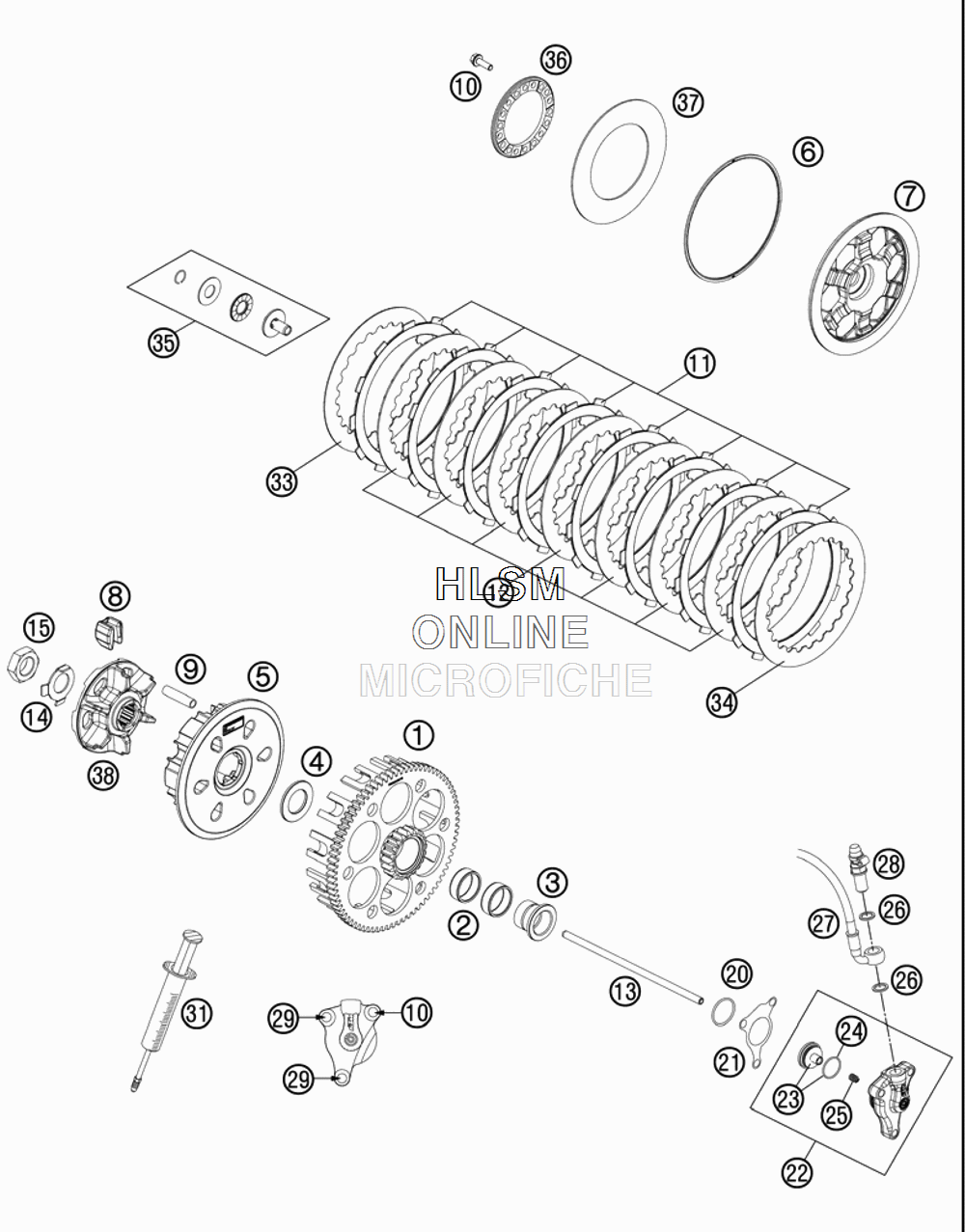

CLUTCH для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
178132001076 CLUTCH CAGECLUTCH CAGE
-
20405252910 NEEDLE BEAR K25X29X10NEEDLE BEAR K25X29X10
-
378132015100 COLLAR SLEEVECOLLAR SLEEVE
-
477232009100 WASHER 21,8 X 37 X 3WASHER 21,8 X 37 X 3
-
578132002008 INNER CLUTCH HUBINNER CLUTCH HUB
-
678132013000 WASHER 112X118X1.5WASHER 112X118X1.5
-
778132003000 PRESSURE PLATEPRESSURE PLATE
-
878132025100 DAMPING RUBBERDAMPING RUBBER
-
978132004000 SLEEVE 7,5X33.4SLEEVE 7,5X33.4
-
100025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
1159032011100 LINING DISC 2MMLINING DISC 2MM
-
1259032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1378132054100 PUSH RODPUSH ROD
-
1478132018000 TAB WASHERTAB WASHER
-
150936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
200770300015 O-RING 30,00X1,50 NBR 70O-RING 30,00X1,50 NBR 70
-
2159032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2254832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
2354832066000 PISTON CPL.PISTON CPL.
-
2454832067000 O-RINGO-RING
-
2554832069000 PRESSURE SPRINGPRESSURE SPRING
-
260603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2778132063000 CLUTCH PIPECLUTCH PIPE
-
2862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
290025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
3150329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
3359032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
3478932010000 INTERMEDIATE DISC 1,2MMINTERMEDIATE DISC 1,2MM
-
3578132057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
3678132006100 SPRING RINGSPRING RING
-
3778132005000 BELLEVILLE SPRING 71X115X1,5 IBELLEVILLE SPRING 71X115X1,5 I
-
3878132002111 HUBHUB
