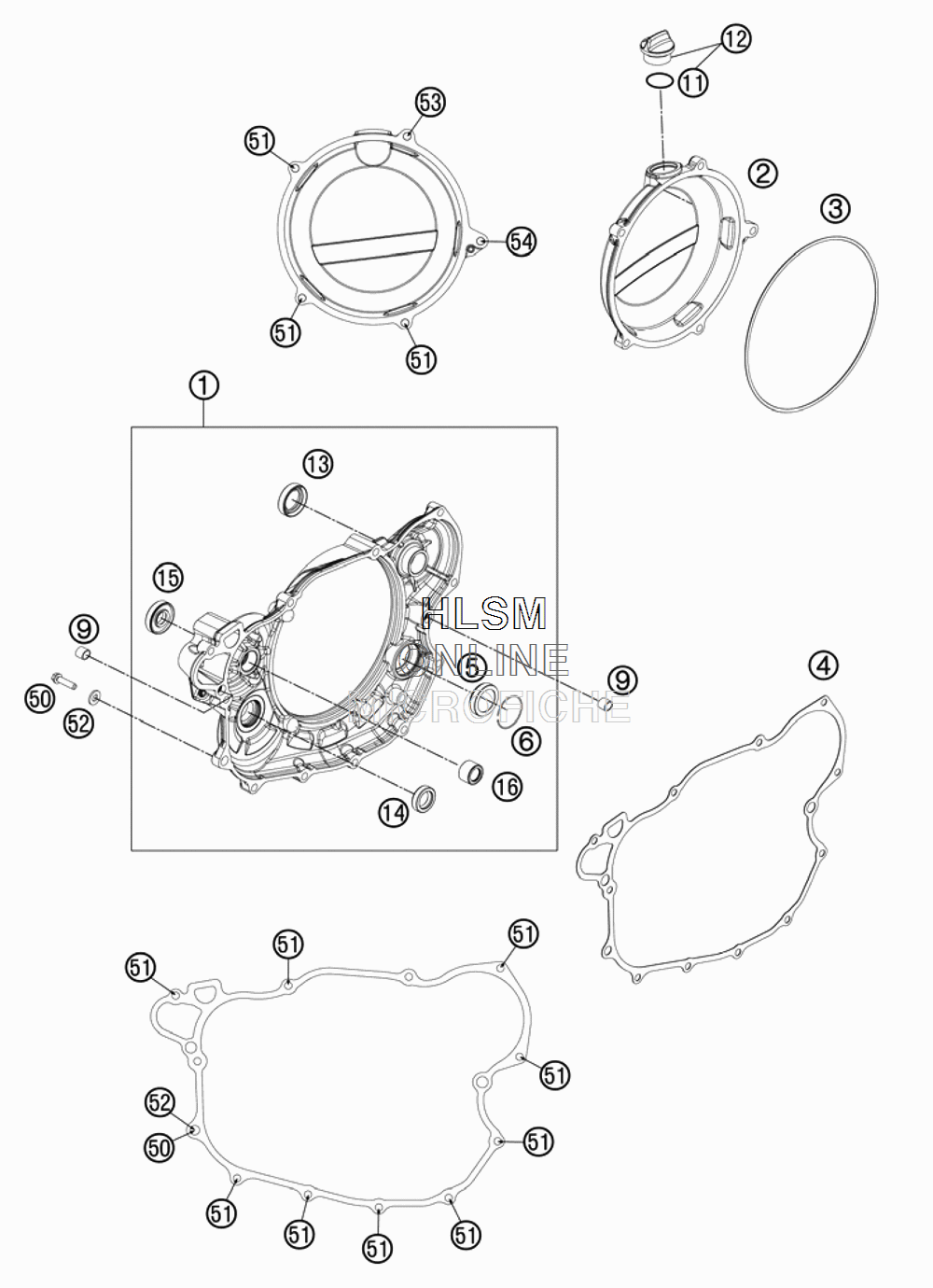

CLUTCH COVER для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
178130001144 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
27813002600015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
378130027000 GASKET - CLUTCH OUTER COVERGASKET - CLUTCH OUTER COVER
-
478130025000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
578030095100 OIL LEVEL GLASS VITONOIL LEVEL GLASS VITON
-
661030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
110770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
1258030120000 OIL FILLER CAP M24X3 WITH O-RINGOIL FILLER CAP M24X3 WITH O-RING
-
130760193070 SHAFT SEAL RING 19X30X7 BSHAFT SEAL RING 19X30X7 B
-
140760142472 SHAFT SEAL RING 14X24X7 VITONSHAFT SEAL RING 14X24X7 VITON
-
150760123073 SHAFT SEAL RING 12X30X7 PTFESHAFT SEAL RING 12X30X7 PTFE
-
160618121912 NEEDLE BUSH NK1212NEEDLE BUSH NK1212
-
5078030080000 LOCATING SCREWLOCATING SCREW
-
510025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
5258030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
530025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
540025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
