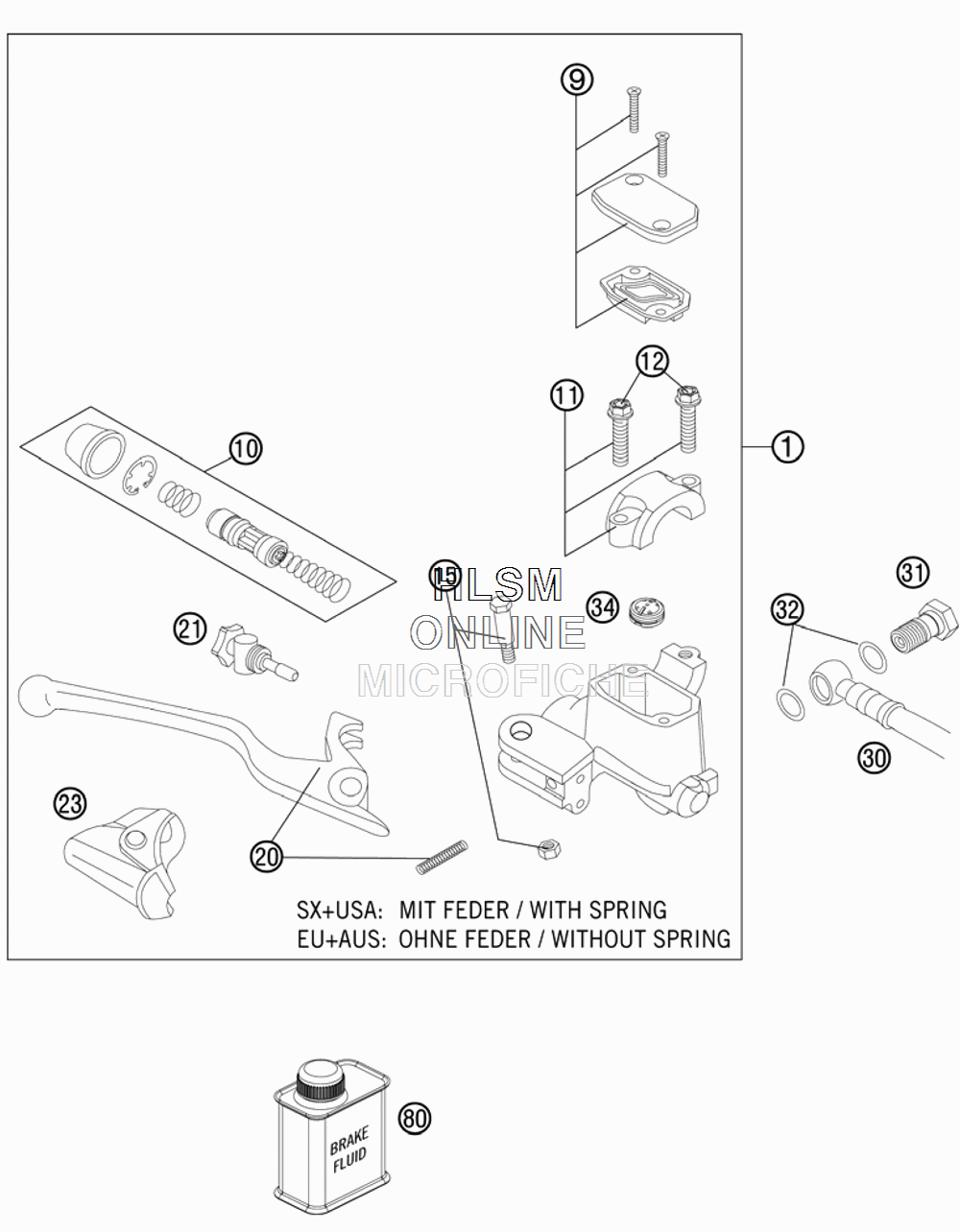

HAND BRAKE CYLINDER для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
177013001044 HAND BRAKE CYLINDER CPL.HAND BRAKE CYLINDER CPL.
-
950313003000 HANDBRAKE CYL.COVER CPL.HANDBRAKE CYL.COVER CPL.
-
1054813008300 REP.SET PISTON D=9MMREP.SET PISTON D=9MM
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
1550313006100 LEVER SCREW CPL.LEVER SCREW CPL.
-
2054813002200 HAND BRAKE LEVER + SPRINGHAND BRAKE LEVER + SPRING
-
2154813007300 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYL.PROTECTION CAP HAND BRAKE CYL.
-
3059013011000 BRAKEHO. FRONT 1300MMBRAKEHO. FRONT 1300MM
-
3154813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
320603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3454802051000 VALVEVALVE
-
8000062030000 BRAKE FLUID DOT 5.1 0,25LBRAKE FLUID DOT 5.1 0,25L
