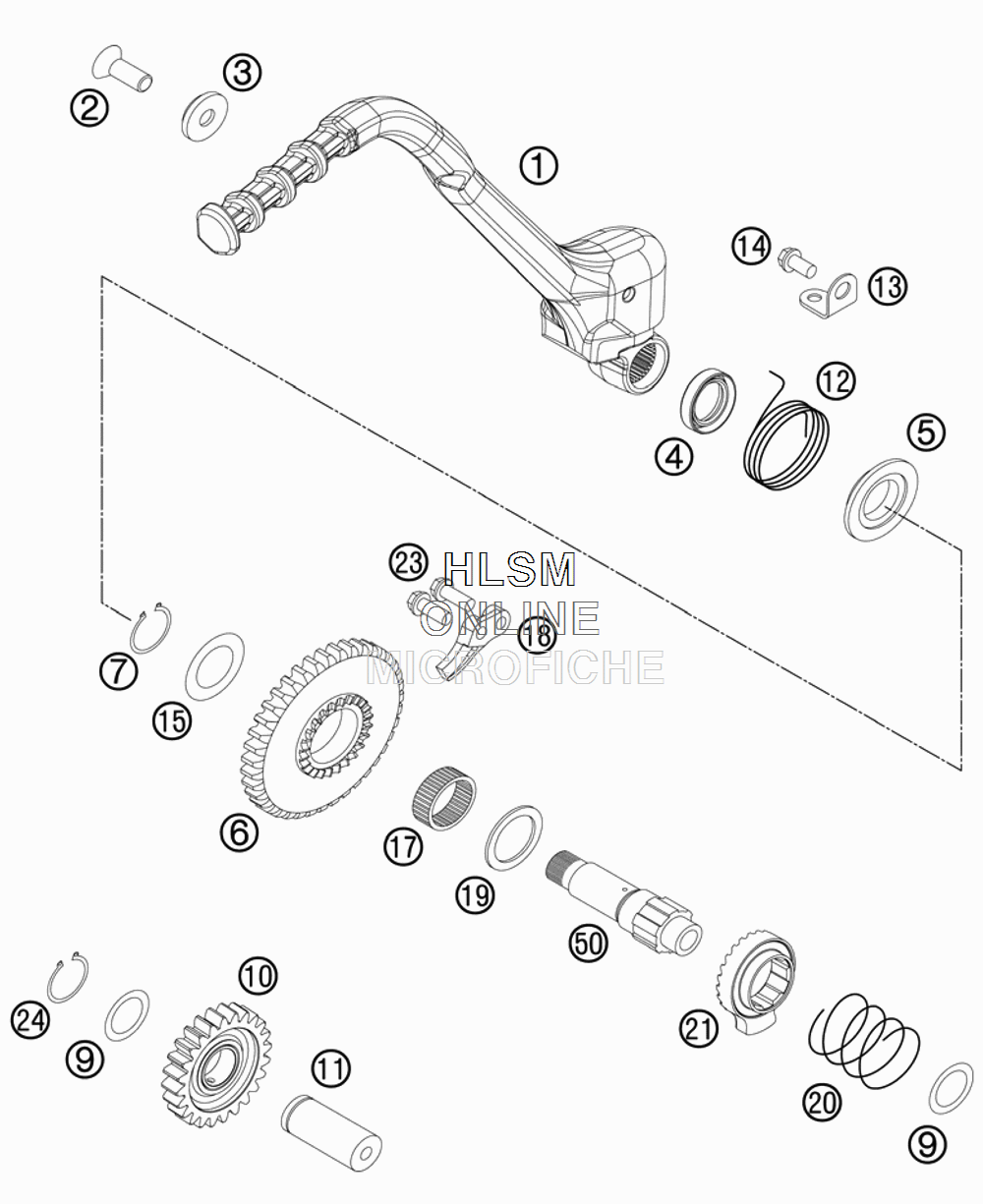

KICK STARTER для Ktm 500 XC-W - 2013 года выпуска

№

Артикул

Название
1

77133070144 KICKSTARTER CPL.

KICKSTARTER CPL.

34 840 ₽
2

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
3

54633037000 WASHER 8MM GALVANIZED

WASHER 8MM GALVANIZED

1 640 ₽
4

0760193070 SHAFT SEAL RING 19X30X7 B

SHAFT SEAL RING 19X30X7 B

1 290 ₽
5

59033055000 DRIVING HUB

DRIVING HUB

970 ₽
6

59033051039 KICKSTARTER GEAR 39-T

KICKSTARTER GEAR 39-T

13 350 ₽
7

0471190120 CIRCLIP DIN0471-19X1,2

CIRCLIP DIN0471-19X1,2

150 ₽
9

0988172405 SHIM WASHER DIN0988-17X24X0,5

SHIM WASHER DIN0988-17X24X0,5

410 ₽
10

78033053200 IDLER GEAR CPL.

IDLER GEAR CPL.

16 850 ₽
11

59033018000 BUSHING PIN

BUSHING PIN

3 210 ₽
12

59033054000 KICKSTARTER SPRING

KICKSTARTER SPRING

1 960 ₽
13

78033074000 SPRINGHOLDER

SPRINGHOLDER

530 ₽
14

0912060123 AH SCREW DIN0912-M 6X12

AH SCREW DIN0912-M 6X12

500 ₽
15

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
17

0405222610 % NEEDLE BEARING K 22X26X10 A

% NEEDLE BEARING K 22X26X10 A

3 130 ₽
18

59033069000 BUMP PART

BUMP PART

3 240 ₽
19

58033031000 STOP DISK 22,2 X 30 X 1,5

STOP DISK 22,2 X 30 X 1,5

910 ₽
20

58033028000 RATCHET GEAR SPRING 1,2 MM

RATCHET GEAR SPRING 1,2 MM

350 ₽
21

78033052000 RATCHET GEAR KICK STARTER

RATCHET GEAR KICK STARTER

10 960 ₽
23

0025060206 HH COLLAR SCREW M6X20 TX30

HH COLLAR SCREW M6X20 TX30

500 ₽
24

0471170010 CIRCLIP DIN0471-17X1

CIRCLIP DIN0471-17X1

290 ₽
50

59033050100 KICKSTARTER SHAFT

KICKSTARTER SHAFT

15 100 ₽
