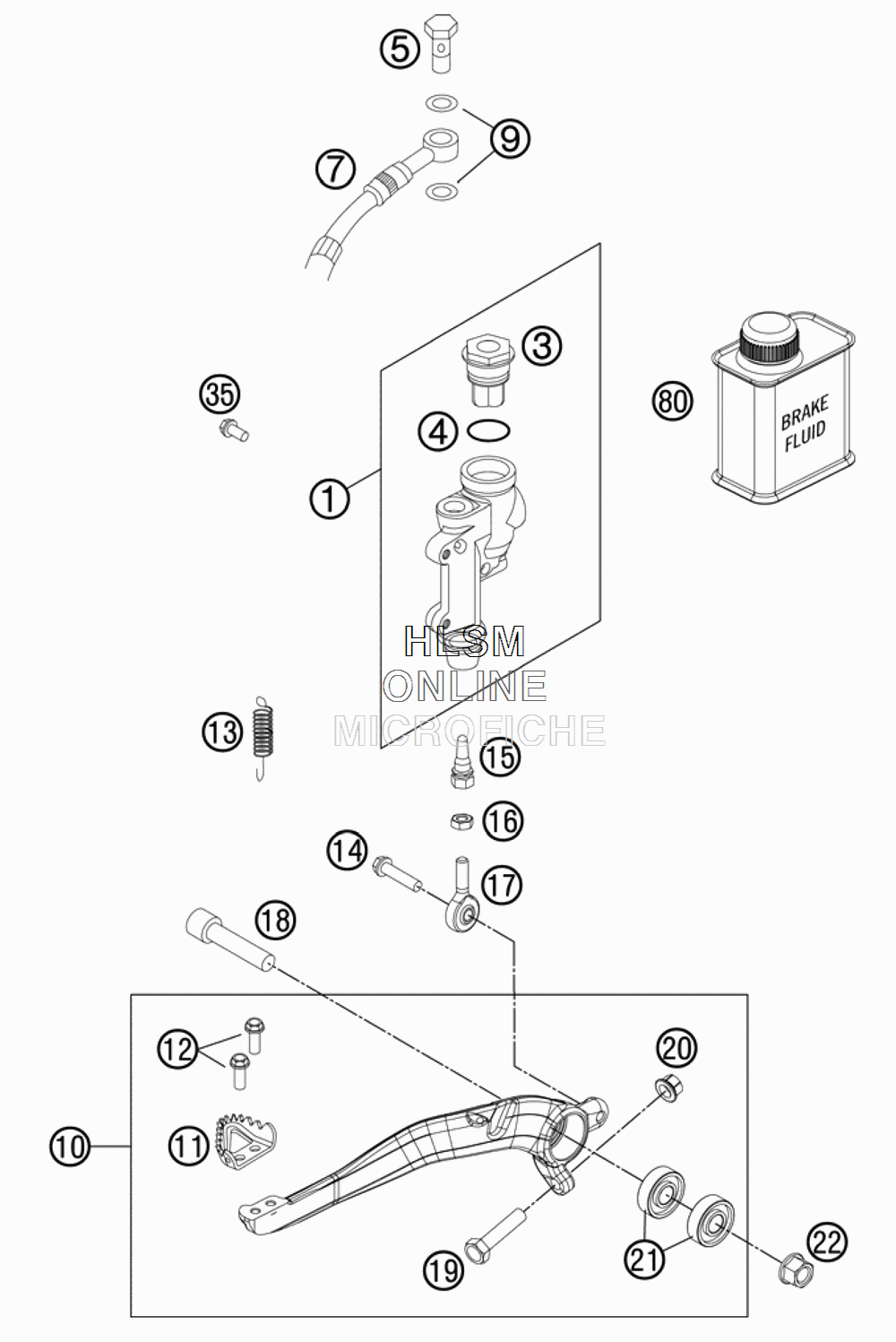

REAR BRAKE CONTROL для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
177013060044 REAR BRAKE CYLINDER CPL.REAR BRAKE CYLINDER CPL.
-
354813062100 REAR BRAKE CYL. COVER CPL.REAR BRAKE CYL. COVER CPL.
-
454813063000 FOOT-BRAKE CYL. GASKETFOOT-BRAKE CYL. GASKET
-
554813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
754813070000 BRAKE HOSE REAR 655MMBRAKE HOSE REAR 655MM
-
90603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1077213050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
1154813051000 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
120025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
1354603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
140025060206S HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1554813056000 PUSH ROD L=28MMPUSH ROD L=28MM
-
160985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
1754813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
180032100406S AH-COLLAR SCREW M10X40 ISA45AH-COLLAR SCREW M10X40 ISA45
-
1959001037000 SPECIAL SCREW M8X26 WS=10SPECIAL SCREW M8X26 WS=10
-
2046030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
210625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
2254630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
350025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
8000062030000 BRAKE FLUID DOT 5.1 0,25LBRAKE FLUID DOT 5.1 0,25L
