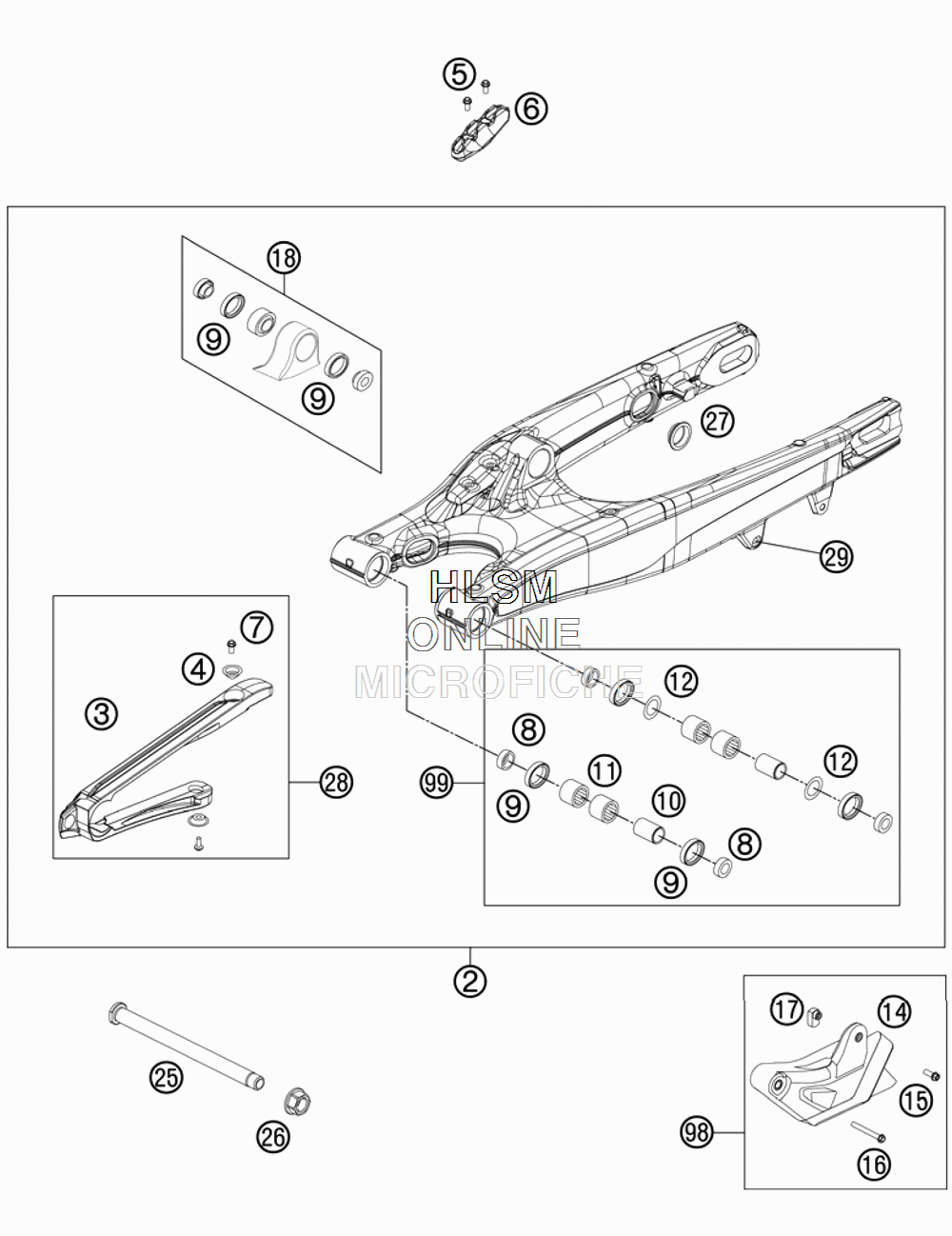

SWING ARM для Ktm 500 XC-W - 2013 года выпуска

№

Артикул

Название
2

78104030144 SWINGARM PDS

SWINGARM PDS

170 ₽
3

51504066000 CHAIN SLID.GUARD PDS

CHAIN SLID.GUARD PDS

5 250 ₽
4

77304066050 BUSHING F. CHAIN SLIDING PR.

BUSHING F. CHAIN SLIDING PR.

530 ₽
5

0009050106 EJOT SPIRAL SCREW SF M5X10-K

EJOT SPIRAL SCREW SF M5X10-K

290 ₽
6

77313047000 BRAKE HOSE GUIDE LOWER

BRAKE HOSE GUIDE LOWER

1 230 ₽
7

59009062013 SPECIAL SCREW M6X13 WS=8 10.9

SPECIAL SCREW M6X13 WS=8 10.9

290 ₽
8

54804034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 330 ₽
9

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
10

59404032000 BEARING SLEEVE 17X22X38,7

BEARING SLEEVE 17X22X38,7

2 330 ₽
11

59004031200 NEEDLE BUSH HK2212V

NEEDLE BUSH HK2212V

2 490 ₽
12

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
14

78004070100 CHAIN GUIDE CPL.

CHAIN GUIDE CPL.

11 440 ₽
15

59009062019 SPECIAL SCREW M6X19 WS=8 10.9

SPECIAL SCREW M6X19 WS=8 10.9

410 ₽
16

0025060456 HH COLLAR SCREW M6X45 TX30

HH COLLAR SCREW M6X45 TX30

470 ₽
17

77304070030 INSERTION NUT F. CHAIN GUIDE

INSERTION NUT F. CHAIN GUIDE

2 050 ₽
18

50304090144 PIVOT BEARING+BUSH. PDS

PIVOT BEARING+BUSH. PDS

17 470 ₽
25

77304037000 SWINGARM BOLT M16X1,5

SWINGARM BOLT M16X1,5

13 080 ₽
26

54804038000 SELF LOCK.NUT M16X1,5 WS=19

SELF LOCK.NUT M16X1,5 WS=19

270 ₽
27

77204041000 CLOSING COVER

CLOSING COVER

760 ₽
28

51504066044 CHAIN SLIDING GUARD KIT

CHAIN SLIDING GUARD KIT

6 690 ₽
29

54603055051 PRESS IN NUT M6 STEEL ZINC

PRESS IN NUT M6 STEEL ZINC

270 ₽
98

77304070310 CHAIN GUIDE KIT REAR

CHAIN GUIDE KIT REAR

14 600 ₽
99

59404230110 SWINGARM--REPAIR KIT

SWINGARM--REPAIR KIT

20 630 ₽
