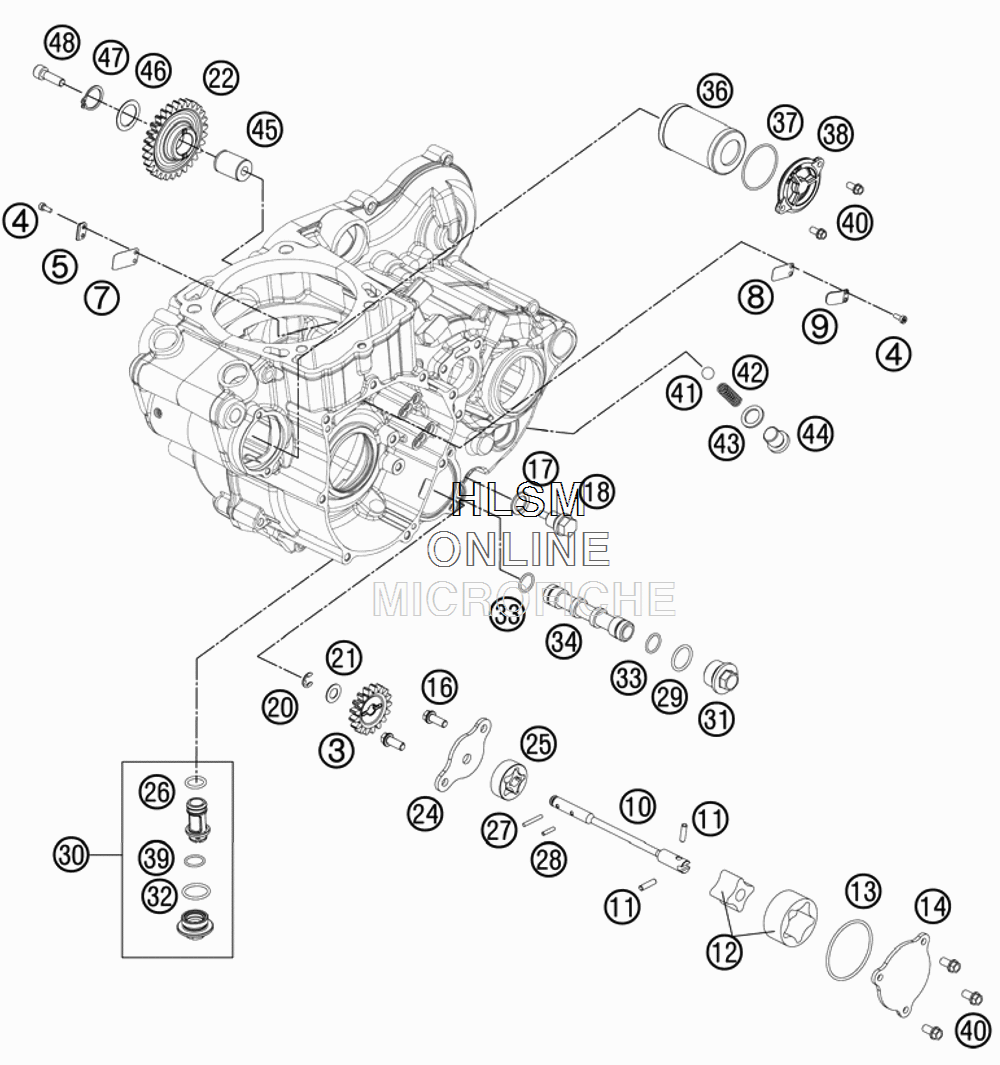

LUBRICATING SYSTEM для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
378038001017 OIL PUMP GEAR 17 TOIL PUMP GEAR 17 T
-
40458030080 CYLIND.SCREW M3X8 ISO 14580 SSCYLIND.SCREW M3X8 ISO 14580 SS
-
575030003050 STOP SHEET MEMBRANESTOP SHEET MEMBRANE
-
775030003051 MEMBRANEMEMBRANE
-
881205027003 MEMBRAN CRANKCASEMEMBRAN CRANKCASE
-
981205027004 TAB WASHER MEMBRAN CSCTAB WASHER MEMBRAN CSC
-
1078138102000 OIL PUMP SHAFT SP-DPOIL PUMP SHAFT SP-DP
-
110402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
1261238111000 ROTOR-SET CPL. 22MMROTOR-SET CPL. 22MM
-
130770440020 O-RING 44,00X2,00 VITONO-RING 44,00X2,00 VITON
-
1478038004000 OIL PUMP COVER SUCTION PUMPOIL PUMP COVER SUCTION PUMP
-
160025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
1758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1858030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
200799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
2158038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
2278138001029 IDLER GEAR 1 29 TEETHIDLER GEAR 1 29 TEETH
-
2478138003000 OIL PUMP COVEROIL PUMP COVER
-
2559038011012 OILPUMP ROTOR 12MM G-95R/003OILPUMP ROTOR 12MM G-95R/003
-
260770012021 O-RING 12X2 VITON GREENO-RING 12X2 VITON GREEN
-
270402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
280402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
290770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
3078138015001 OIL SCREEN CPL.OIL SCREEN CPL.
-
3159038017000 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
320770170200 O-RING 17,00X2,00O-RING 17,00X2,00
-
3307701250151 O-RING 12,5X1,5 VITON V75O-RING 12,5X1,5 VITON V75
-
3459038016100 OIL SCREENOIL SCREEN
-
3677038005044 OIL FILTER WITH GASKETOIL FILTER WITH GASKET
-
3707700390261 O-RING 39,34X2,62O-RING 39,34X2,62
-
3875038041200 OILFILTER CAPOILFILTER CAP
-
390770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
400025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
410401090003 BALL DIN5401-9BALL DIN5401-9
-
4258038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
4358038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
440908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
4578040028000 BUSHING PINBUSHING PIN
-
460988172405 SHIM WASHER DIN0988-17X24X0,5SHIM WASHER DIN0988-17X24X0,5
-
470471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
480912060208 AH SCREW DIN0912-12-M 6X20 SSAH SCREW DIN0912-12-M 6X20 SS
