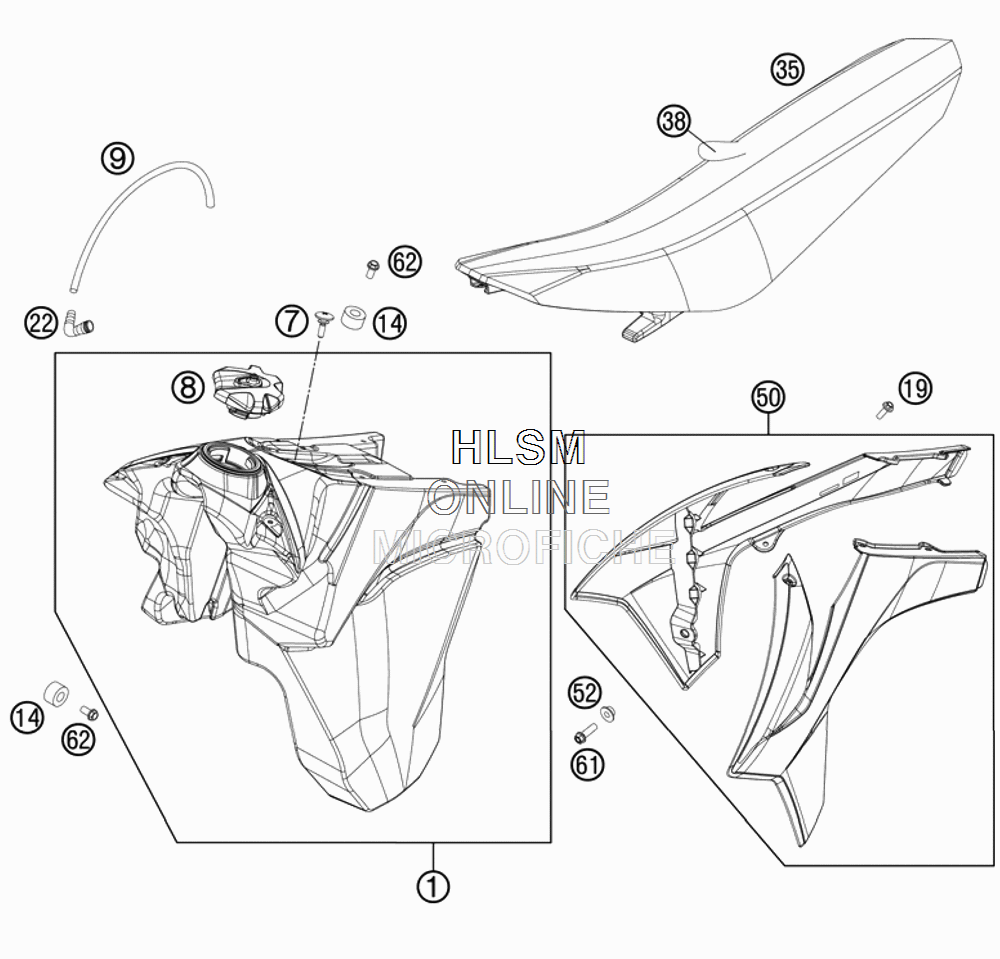

TANK SEAT COVER для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
17810701314499 FUEL TANK CPL. 8,5LFUEL TANK CPL. 8,5L
-
777407011000 SCREW SEAT FIXING M5SCREW SEAT FIXING M5
-
878007008044X4 TANK PLUG ORANGE/BLACKTANK PLUG ORANGE/BLACK
-
978007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
190014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
-
2250330022000 ANGLE PIEC 90 DEGREE M10X1 02ANGLE PIEC 90 DEGREE M10X1 02
-
3577207040000 SEAT CPL.SEAT CPL.
-
3877207040050 SEAT COVERSEAT COVER
-
507720805400004B SPOILER KIT WITH DECALSPOILER KIT WITH DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
620025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
