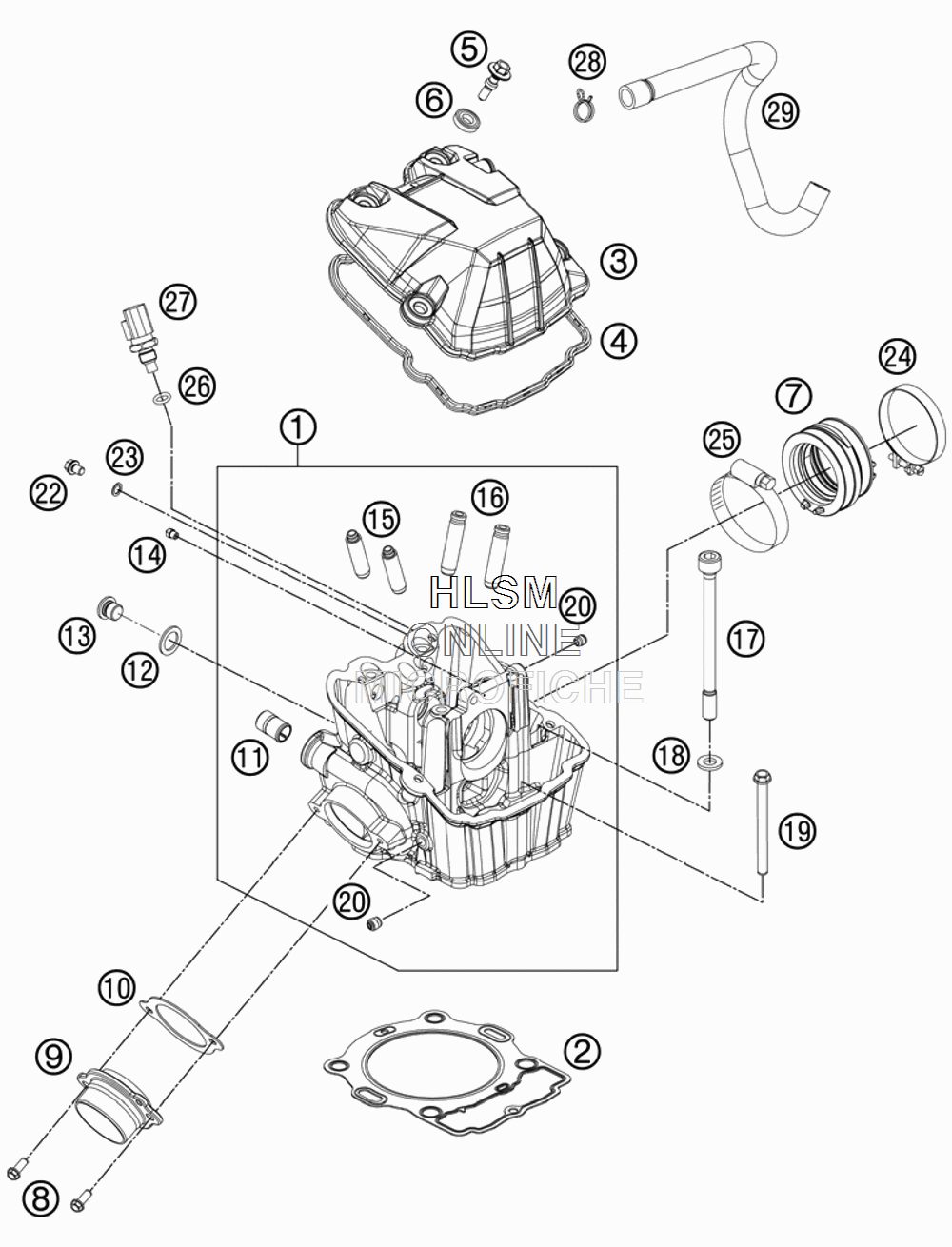

CYLINDER HEAD для Ktm 500 XC-W - 2013 года выпуска

№

Артикул

Название
1

78136020044 CYLINDER HEAD CPL.

CYLINDER HEAD CPL.

170 ₽
2

78030036000 CYLINDER HEAD GASKET

CYLINDER HEAD GASKET

25 610 ₽
3

7803605200033 VALVE COVER BLACK MATT

VALVE COVER BLACK MATT

8 120 ₽
4

78036053000 VALVE COVER GASKET

VALVE COVER GASKET

2 280 ₽
5

78036054100 VALVE COVER SCREW

VALVE COVER SCREW

1 640 ₽
6

75036052010 DECOUPLING ELEMENT

DECOUPLING ELEMENT

790 ₽
7

77236044000 CONNECTION RUBBER EFI

CONNECTION RUBBER EFI

9 810 ₽
8

0025060166 HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

500 ₽
9

78136139000 EXHAUST FLANGE

EXHAUST FLANGE

8 440 ₽
10

78036041000 EXHAUST FLANGE GASKET

EXHAUST FLANGE GASKET

740 ₽
11

58030010200 SCREW IN NOZZLE M20X1,5

SCREW IN NOZZLE M20X1,5

2 390 ₽
12

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
13

78036024000 PLUG SCREW SAS M12X1,5

PLUG SCREW SAS M12X1,5

2 600 ₽
14

60030063070 OIL JET 70 M5

OIL JET 70 M5

1 960 ₽
15

77136026001 VALVE GUIDE OUTLET

VALVE GUIDE OUTLET

7 510 ₽
16

78136025001 VALVE GUIDE INTAKE

VALVE GUIDE INTAKE

5 870 ₽
17

78630044000 CYL. HEAD SCREW M10X1,25 L=138

CYL. HEAD SCREW M10X1,25 L=138

2 720 ₽
18

77336089010 WASHER 19X10,5X2,5

WASHER 19X10,5X2,5

970 ₽
19

0025060856 HH COLLAR SCREW M6X85 TX30

HH COLLAR SCREW M6X85 TX30

530 ₽
20

59030296000 SCREW PLUG

SCREW PLUG

1 520 ₽
22

0025060086 HH COLLAR SCREW M6X8 TX30

HH COLLAR SCREW M6X8 TX30

470 ₽
23

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
24

61036047000 HOSE CLAMP GEMI 63MM

HOSE CLAMP GEMI 63MM

2 020 ₽
25

77236048000 HOSE CLAMP GEMI 58MM

HOSE CLAMP GEMI 58MM

3 240 ₽
26

0770100020 O-RING 10,00X2,00 SILCONE

O-RING 10,00X2,00 SILCONE

500 ₽
27

60011252000 TEMPERAT.-SENSOR WATER LC8

TEMPERAT.-SENSOR WATER LC8

8 470 ₽
28

58431082300 CLAMP YDNAC 10173 (18MM)

CLAMP YDNAC 10173 (18MM)

320 ₽
29

78130087000 ENGINE BREATHER TUBE

ENGINE BREATHER TUBE

5 780 ₽
