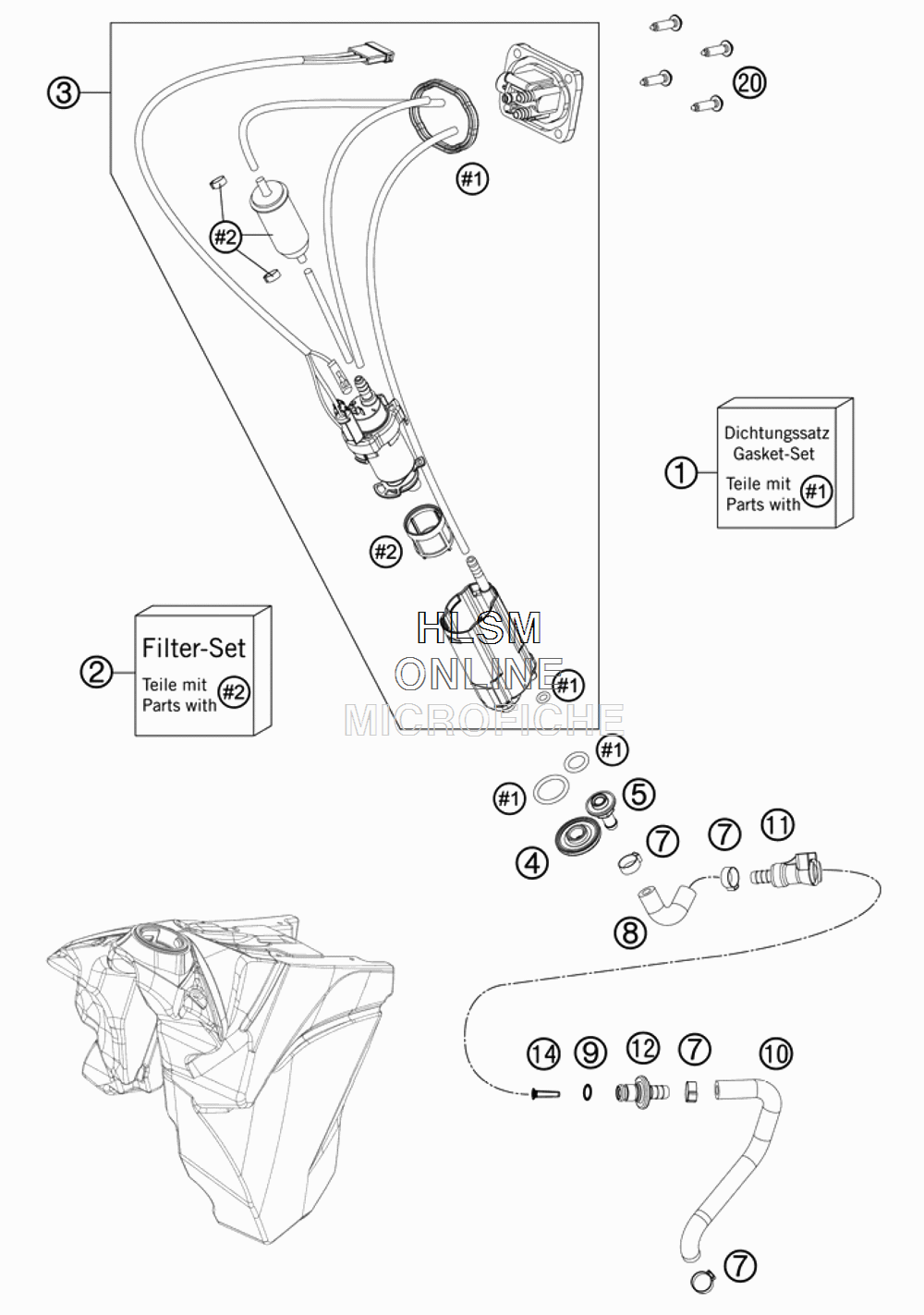

FUEL PUMP для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
178107089000 GASKET KITGASKET KIT
-
281207090000 FILTER KITFILTER KIT
-
378107088000 FUEL PUMP CPL.FUEL PUMP CPL.
-
478107088014 NUT F. FUEL PUMP M12NUT F. FUEL PUMP M12
-
578107088017 FUEL CONNECTOR M8FUEL CONNECTOR M8
-
700050157706 VARIABLE ONE-EAR CLAMP 15,7MMVARIABLE ONE-EAR CLAMP 15,7MM
-
877407116100 FUEL HOSE TANKFUEL HOSE TANK
-
958507012000 O-RING VITON F. PLUG CPCO-RING VITON F. PLUG CPC
-
1078107016100 FUEL HOSE PREFORMED DKKFUEL HOSE PREFORMED DKK
-
115850701050030 CLUTCH CPC BLACKCLUTCH CPC BLACK
-
1277707010000 CONNECTOR FUEL PUMPCONNECTOR FUEL PUMP
-
1478141013190 FUEL FILTERFUEL FILTER
-
200017060253 EJOT PT SCREW K60X25 -Z SW=6EJOT PT SCREW K60X25 -Z SW=6
