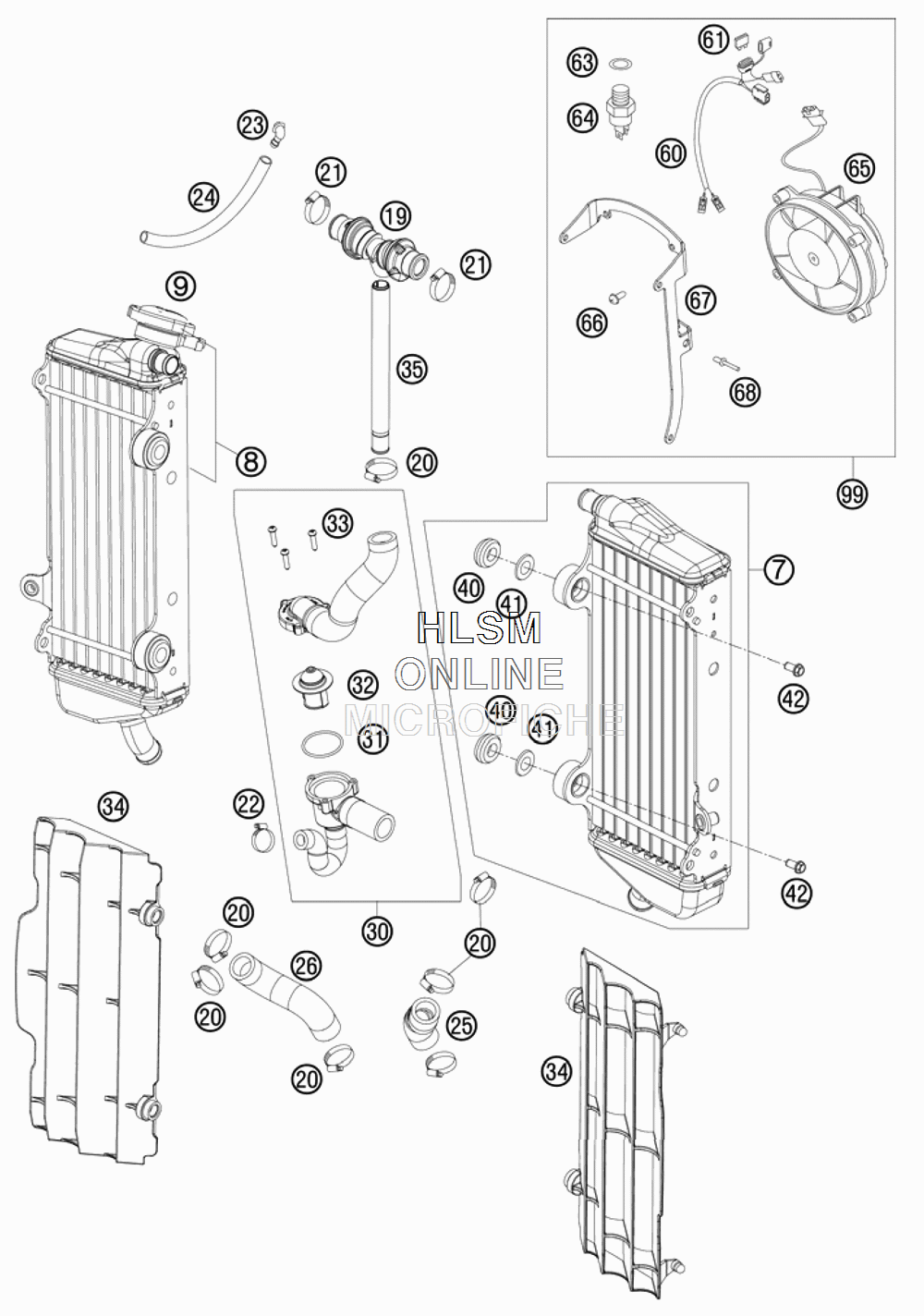

COOLING SYSTEM для Ktm 500 XC-W - 2013 года выпуска
-
№АртикулНазвание
-
777035007300 RADIATOR L/S "55623U"RADIATOR L/S "55623U"
-
878035008200 RADIATOR R/S "65061U"RADIATOR R/S "65061U"
-
977335016000 RADIATOR CAP SMALL 1,8 BARRADIATOR CAP SMALL 1,8 BAR
-
1977235071044 Y-CONNECOTOR CPL.Y-CONNECOTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2142013037400 HOSE CLAMP NORMA 12/24HOSE CLAMP NORMA 12/24
-
2258335099000 HOSE CLAMP GEMI 10-16HOSE CLAMP GEMI 10-16
-
2350303089000 ANGLE PIECEANGLE PIECE
-
2450335030001 PVC-HOSE 6X9PVC-HOSE 6X9
-
2578135025000 RADIATOR HOSE L/SRADIATOR HOSE L/S
-
2678135027000 RADIATOR HOSE R/SRADIATOR HOSE R/S
-
3078135026033 RADIATORHOSE CPL. THERM.70°CRADIATORHOSE CPL. THERM.70°C
-
310770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
3259435017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
330016040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
347733503400004 RADIATOR PROTECTION L/S+R/S SXRADIATOR PROTECTION L/S+R/S SX
-
347733503400030 RADIATOR PROTECTION BLACKRADIATOR PROTECTION BLACK
-
3577235073000 HOSE CONNECTOR L=172,5HOSE CONNECTOR L=172,5
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
420023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
6059011079100 FAN WIRING HARNESSFAN WIRING HARNESS
-
6158011109105 FUSE 5 AFUSE 5 A
-
630603142015 ALU SEALRING DIN7603-14X20X1,5ALU SEALRING DIN7603-14X20X1,5
-
6478035045000 THERMOSWITCH 95-100 DGTHERMOSWITCH 95-100 DG
-
6558435041000 FAN CPL. 12V LC4FAN CPL. 12V LC4
-
660081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
6781235943000 FAN SUPPORTFAN SUPPORT
-
680011400800 RIVET 4,0X 8 ALURIVET 4,0X 8 ALU
-
9981235941044 FAN KIT COMPLETEFAN KIT COMPLETE
