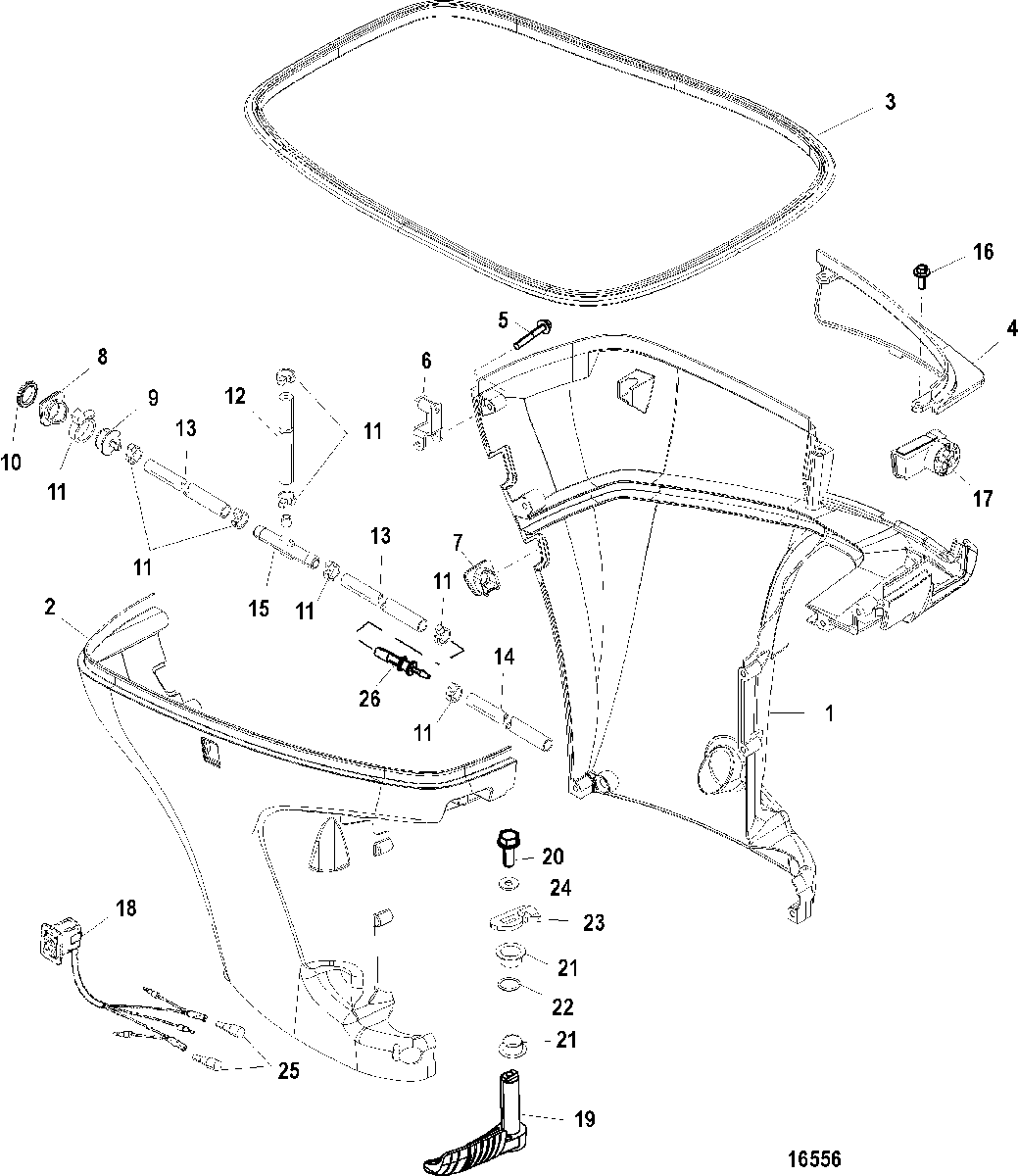

Bottom Cowl для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
1100-878587A1 BOTTOM COWL ASSEMBLY (Port)BOTTOM COWL ASSEMBLY (Port)
-
2100-8M0113913 BOTTOM COWL ASSEMBLY (Starboard)BOTTOM COWL ASSEMBLY (Starboard)
-
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
4878547T INSERTINSERT
-
510-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
6831209 RETAINERRETAINER
-
7858742 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
88M0039078 GROMMETGROMMET
-
922-827948 FITTINGFITTING
-
1012-855576 WASHERWASHER
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1232-881535 HOSE, (32.00 Inches)HOSE, (32.00 Inches)
-
1332-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)
-
1432-9912688 TUBING, (36.00 Inches Bulk) (Cut to 21 Inches)TUBING, (36.00 Inches Bulk) (Cut to 21 Inches)
-
1522-817518 TEETEE
-
1610-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
1725-889724 GROMMETGROMMET
-
1887-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
19889740A02 HANDLE KITHANDLE KIT
-
2010-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2123-33589 BUSHINGBUSHING
-
2225-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
238219423 PAWLPAWL
-
2412-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
2513541 PLUG, MalePLUG, Male
-
2622-898029 FITTING, ReducerFITTING, Reducer
