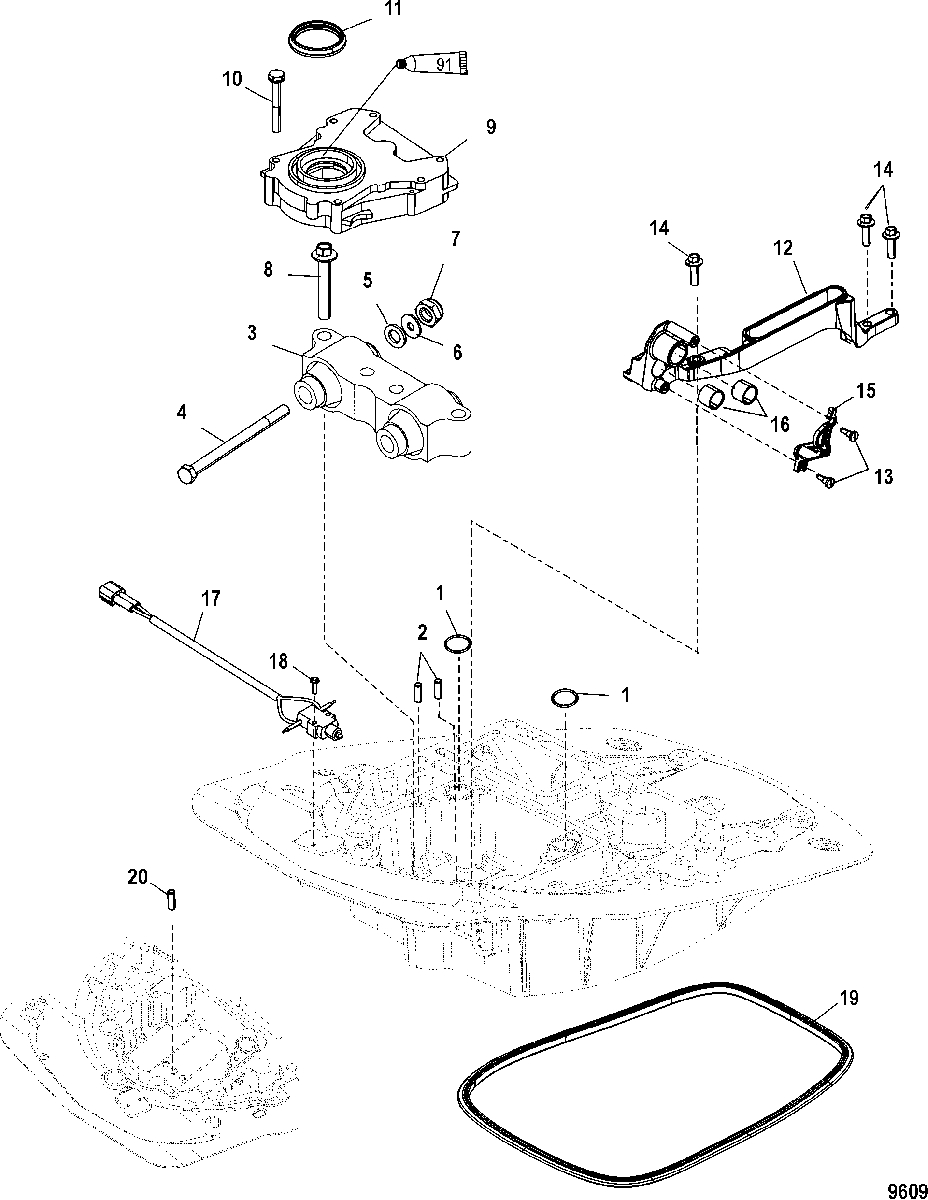

Oil Pump для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
125-62705001 O-RINGO-RING
-
217-41275M PIN, DowelPIN, Dowel
-
3881900T03 MOUNTMOUNT
-
410-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
512-32834 WASHER, NeopreneWASHER, Neoprene
-
612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
711-896963 NUT, (M12)NUT, (M12)
-
810-898442 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
9858579T3 PUMP, OilPUMP, Oil
-
1010-8M0052670 BOLT, (M6 x 45)BOLT, (M6 x 45)
-
1126-804349 SEALSEAL
-
12896843T01 BRACKET, Shift LinkBRACKET, Shift Link
-
1310-42975 DRIVE SCREWDRIVE SCREW
-
1410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15896844 LATCH, Control CableLATCH, Control Cable
-
16824015 CUP, Barrel Retainer, Barrel Retainer (Small)CUP, Barrel Retainer, Barrel Retainer (Small)
-
1787-879996A2 SWITCHSWITCH
-
1810-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
-
198M0043168 SEALSEAL
-
2017-23784 PIN, DowelPIN, Dowel
