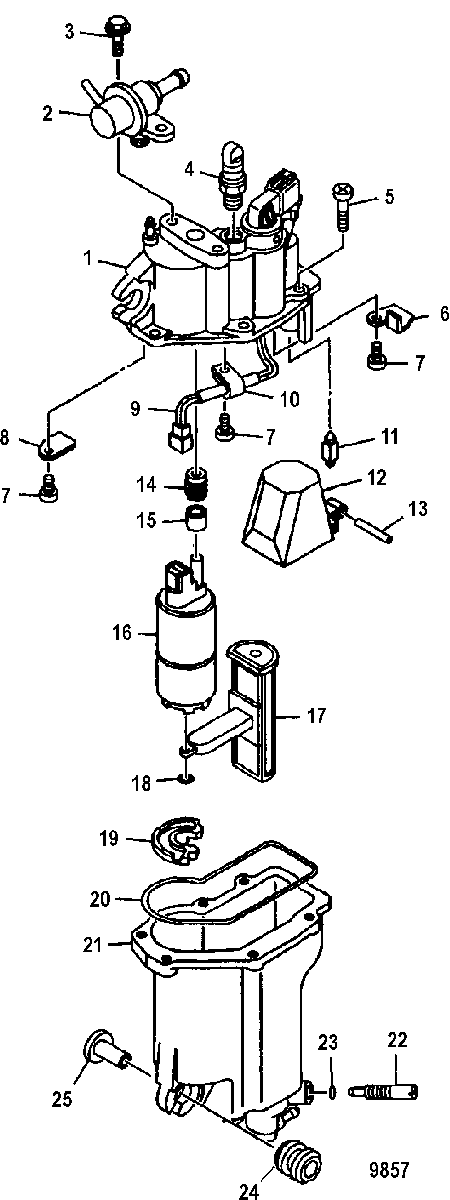

Vapor Separator для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
-8M0120285 VAPOR SEPARATOR ASSEMBLY, CompleteVAPOR SEPARATOR ASSEMBLY, Complete
-
1881316001 COVERCOVER
-
2880888T01 REGULATOR, Fuel PressureREGULATOR, Fuel Pressure
-
310-881326004 SCREWSCREW
-
419-823865001 PLUG, CapPLUG, Cap
-
510-881326005 SCREWSCREW
-
6881327002 PLATE, BafflePLATE, Baffle
-
710-881326003 SCREWSCREW
-
8881327001 PLATE, BafflePLATE, Baffle
-
984-888237001 HARNESS ASSEMBLY, WireHARNESS ASSEMBLY, Wire
-
1054-881530008 CLAMPCLAMP
-
118M0095242 VALVE, NeedleVALVE, Needle
-
12881320001 FLOATFLOAT
-
1317-881321001 PIN, FloatPIN, Float
-
1425-881322004 DAMPERDAMPER
-
1523-881332004 COLLARCOLLAR
-
168M0065218 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1735-881323001 FILTERFILTER
-
188M0091977 CLAMPCLAMP
-
1925-881322003 DAMPERDAMPER
-
2027-881325001 GASKETGASKET
-
21881319001 BODY ASSEMBLYBODY ASSEMBLY
-
2210-881326006 SCREW, DrainSCREW, Drain
-
2325-881318001 O-RINGO-RING
-
2425-93101M GROMMETGROMMET
-
2523-881332005 COLLARCOLLAR
