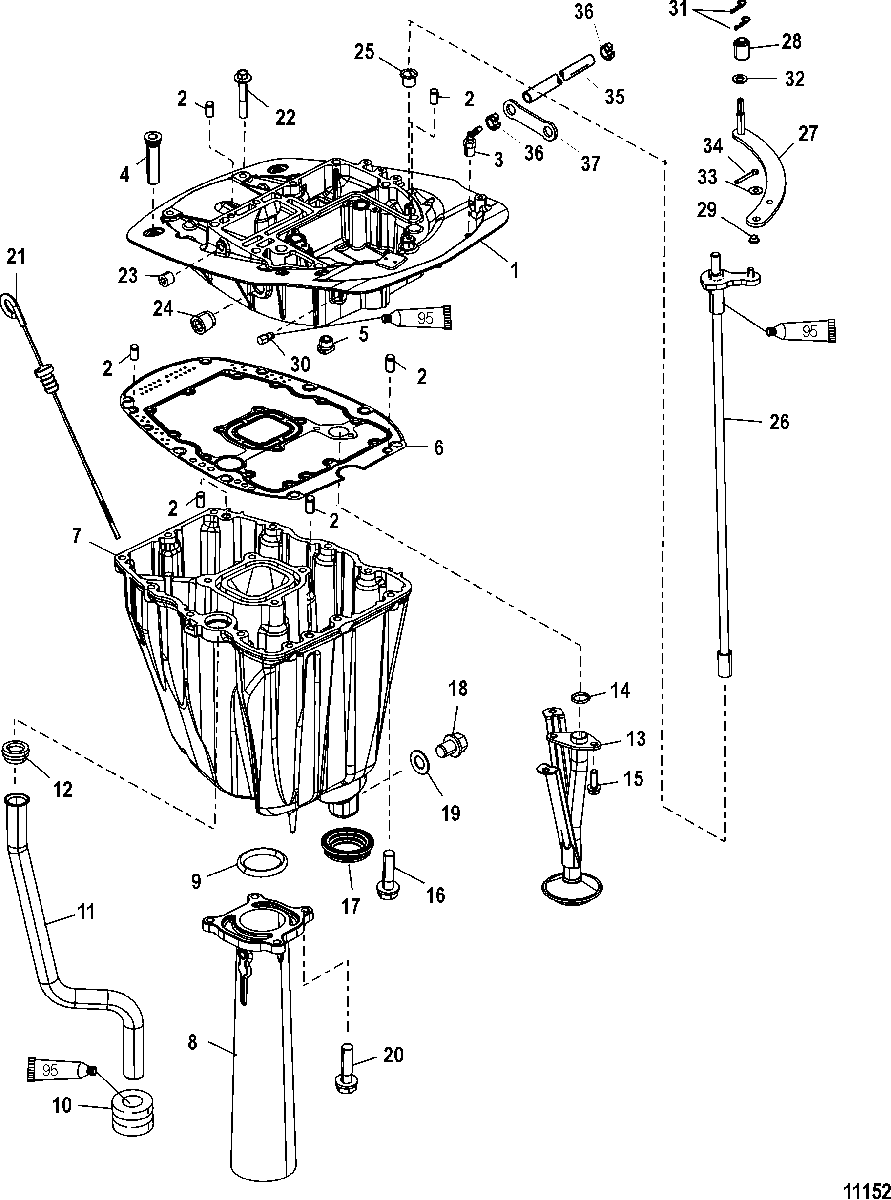

Exhaust Plate для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
1897580A05 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
217-23784 PIN, DowelPIN, Dowel
-
322-897501 FITTINGFITTING
-
421-817519A2 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
525-19565002 GROMMETGROMMET
-
627-8585831 GASKETGASKET
-
7858572T01 SUMP, OilSUMP, Oil
-
8858584A1 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
925-881295 O-RINGO-RING
-
1025-89417004 GROMMETGROMMET
-
1132-8M0026130 TUBE, Water
(LONG)TUBE, Water
(LONG) -
1132-8M0026129 TUBE, Water
(X-LONG)TUBE, Water
(X-LONG) -
12814080001 SEAL (UPPER)SEAL (UPPER)
-
13858571T TUBE, Oil Pick UpTUBE, Oil Pick Up
-
1425-859082 O-RINGO-RING
-
1510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1610-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
178M0039073 SEALSEAL
-
188288181 PLUG, DrainPLUG, Drain
-
1927-828816 GASKETGASKET
-
2010-82483213 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
218596021 DIPSTICKDIPSTICK
-
2210-898442 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2322-479452 PLUGPLUG
-
2422-889567 PLUG, (.500-14)PLUG, (.500-14)
-
2523-27132 BUSHINGBUSHING
-
26888835A1 SHIFT SHAFTSHIFT SHAFT
-
27888840 SHIFT LINKSHIFT LINK
-
28888917 ROLLERROLLER
-
2923-891658 BUSHINGBUSHING
-
30888823001 SHIFT DETENT ASSEMBLYSHIFT DETENT ASSEMBLY
-
3118-82053M PIN, HairPIN, Hair
-
3212-888832 WASHERWASHER
-
3312-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3418-26953 COTTER PINCOTTER PIN
-
3532-897730 HOSE, Fuel Vent (28.00 Inches)HOSE, Fuel Vent (28.00 Inches)
-
3654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
37898006 STRAP, RetainingSTRAP, Retaining
