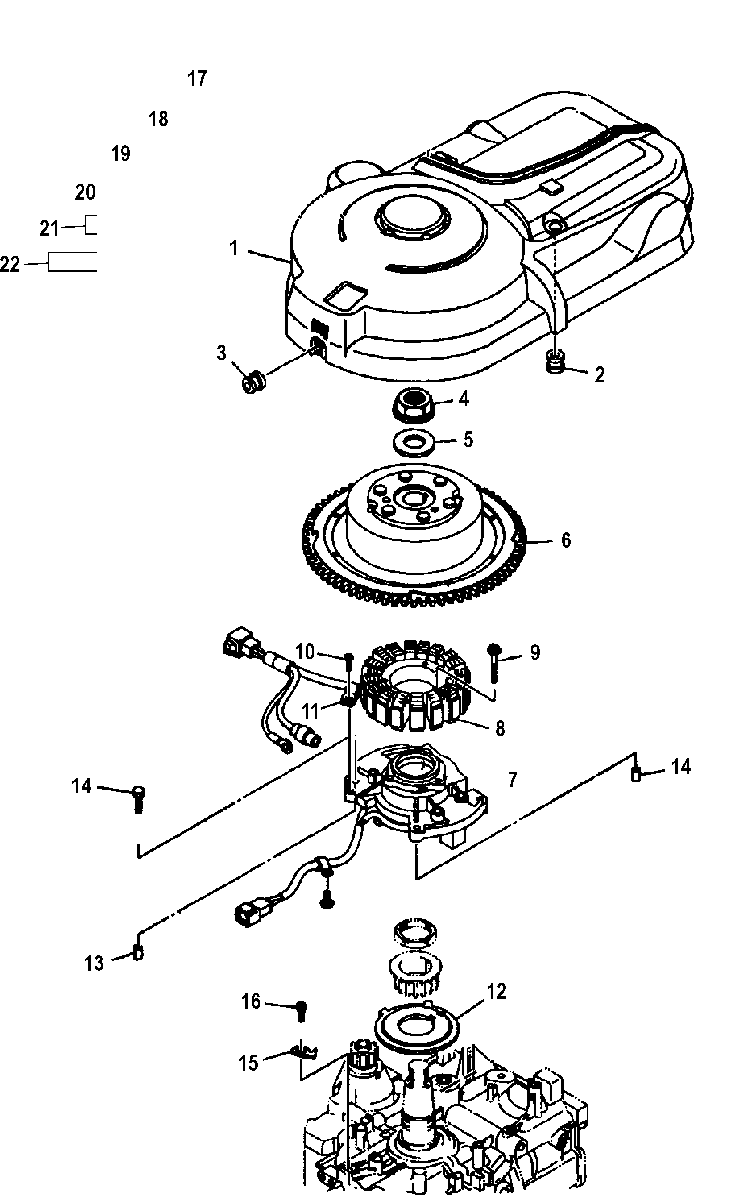

Flywheel для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
1881343T02 COVER, FlywheelCOVER, Flywheel
-
225-888304 GROMMETGROMMET
-
325-855690 GROMMETGROMMET
-
411-804265A1 NUT/WASHER KIT, Hex (36 mm)NUT/WASHER KIT, Hex (36 mm)
-
512-8042641 WASHER, PlateWASHER, Plate
-
6280-881335T01 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
-398-881336A04 STATOR KITSTATOR KIT
-
7881337001 COIL, PulserCOIL, Pulser
-
8398-881336A03 STATOR ASSEMBLYSTATOR ASSEMBLY
-
910-881338 SCREW, (M6 x 28)SCREW, (M6 x 28)
-
1010-881339001 SCREW AND WASHERSCREW AND WASHER
-
1154-881340 CLAMPCLAMP
-
12881341 ROTORROTOR
-
1317-825010 PIN, DowelPIN, Dowel
-
1410-804603 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
15804266001 PLATE, TimingPLATE, Timing
-
1610-804267 SCREWSCREW
-
17NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
18NSS NOT SOLD SEPARATE, Decal-Waring-Sprinning FlywheelNOT SOLD SEPARATE, Decal-Waring-Sprinning Flywheel
-
19NSS NOT SOLD SEPARATE, Decal-Servicing ReferralNOT SOLD SEPARATE, Decal-Servicing Referral
-
20NSS NOT SOLD SEPARATE, Decal-Servicing ReferralNOT SOLD SEPARATE, Decal-Servicing Referral
-
21NSS NOT SOLD SEPARATE, Decal-Engine Oil/ValveNOT SOLD SEPARATE, Decal-Engine Oil/Valve
-
22NSS NOT SOLD SEPARATE, Decal-Emergency StartingNOT SOLD SEPARATE, Decal-Emergency Starting
-
-8M0094898 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
