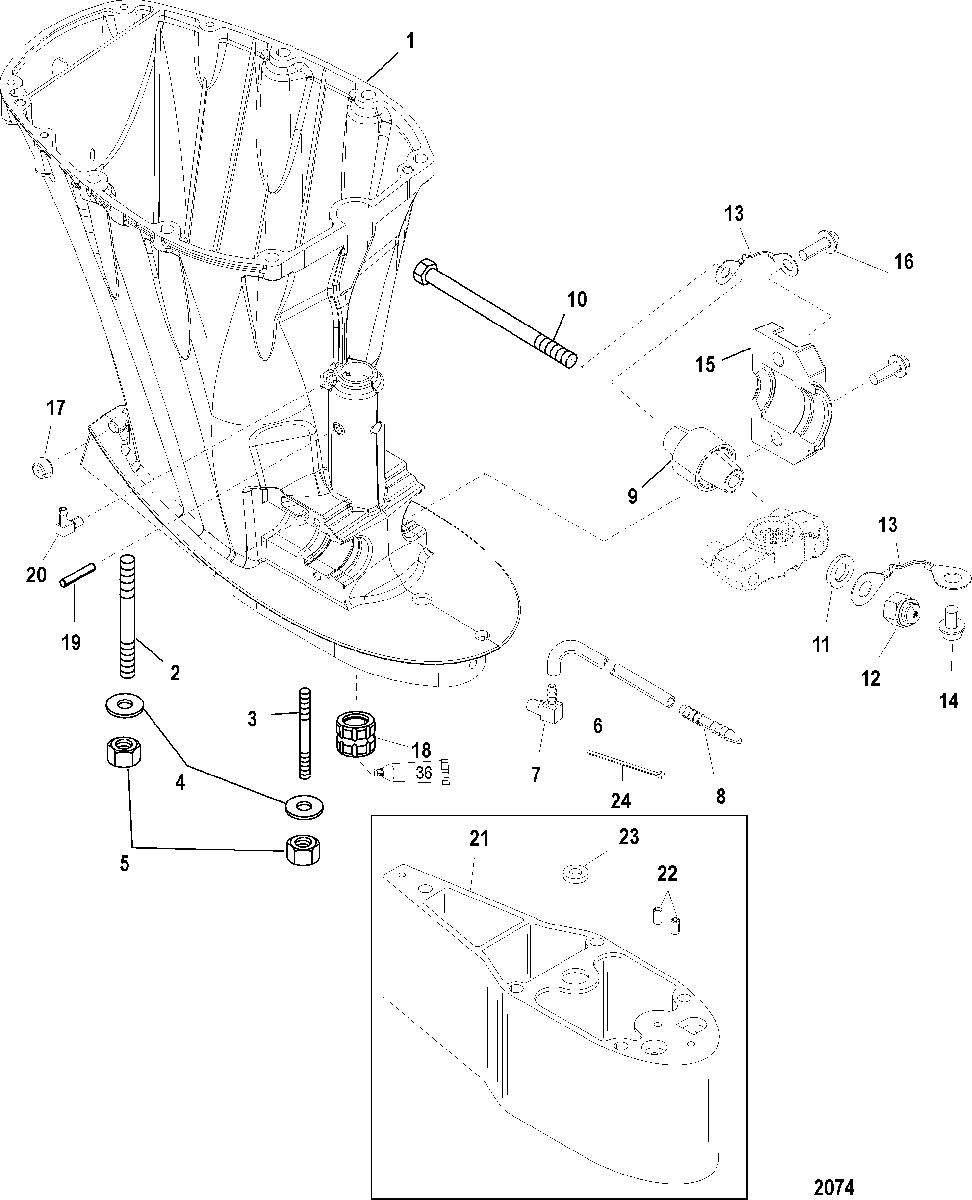

Driveshaft Housing для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822

№

Артикул

Название
1

1507-858576T2 HOUSING ASSEMBLY, Driveshaft

HOUSING ASSEMBLY, Driveshaft

106 770 ₽
2

16-903501 STUD, (M10 x 100)
(Long)

STUD, (M10 x 100)
(Long)

900 ₽
2

16-8M0034467 STUD, (M10 x 227)
(X-Long)

STUD, (M10 x 227)
(X-Long)

2 400 ₽
3

16-9035012 STUD, (M10 x 63)
(Long)

STUD, (M10 x 63)
(Long)

720 ₽
3

16-8M0034462 STUD, (M10 x 190)
(X-Long)

STUD, (M10 x 190)
(X-Long)

1 450 ₽
4

12-856774 WASHER, (.406 x .750 x .105) Stainless Steel

WASHER, (.406 x .750 x .105) Stainless Steel

150 ₽
5

11-40140 NUT, (M10)

NUT, (M10)

380 ₽
6

22-85822A15 PICKUP ASSEMBLY, Speedometer

PICKUP ASSEMBLY, Speedometer

1 550 ₽
7

22-433351 CONNECTOR, 90 Degree - With Vibraseal

CONNECTOR, 90 Degree - With Vibraseal

410 ₽
8

22-85822T CONNECTOR, Straight

CONNECTOR, Straight

180 ₽
9

44343T1 MOUNT

MOUNT

4 710 ₽
10

10-898835001 BOLT, (M12 x 154)

BOLT, (M12 x 154)

1 870 ₽
11

12-30119 WASHER, (.875 Inch Outside Diameter)

WASHER, (.875 Inch Outside Diameter)

120 ₽
12

11-43528 NUT, (M12)

NUT, (M12)

940 ₽
13

88238A10 CABLE ASSEMBLY, Ground, To Swivel Bracket

CABLE ASSEMBLY, Ground, To Swivel Bracket

600 ₽
14

10-41508 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel

260 ₽
15

858916T CLAMP

CLAMP

2 130 ₽
16

10-889833025 SCREW, (M8 x 25 MM)

SCREW, (M8 x 25 MM)

270 ₽
17

8M0039082 CAP

CAP

1 130 ₽
18

23-859550 BUSHING

BUSHING

7 230 ₽
19

17-24873 PIN, Alignment

PIN, Alignment

140 ₽
20

22-855622 FITTING

FITTING

1 500 ₽
21

12092A3 SPACER KIT
(X-Long)

SPACER KIT
(X-Long)

57 110 ₽
22

17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
(X-Long)

PIN, Dowel - With Hole (.375 x .625)
(X-Long)

210 ₽
22

17-43044 PIN, Dowel - Without Hole (.375 x .625)
(X-Long)

PIN, Dowel - Without Hole (.375 x .625)
(X-Long)

200 ₽
23

23-813745 SPACER
(X-Long)

SPACER
(X-Long)

450 ₽
24

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
