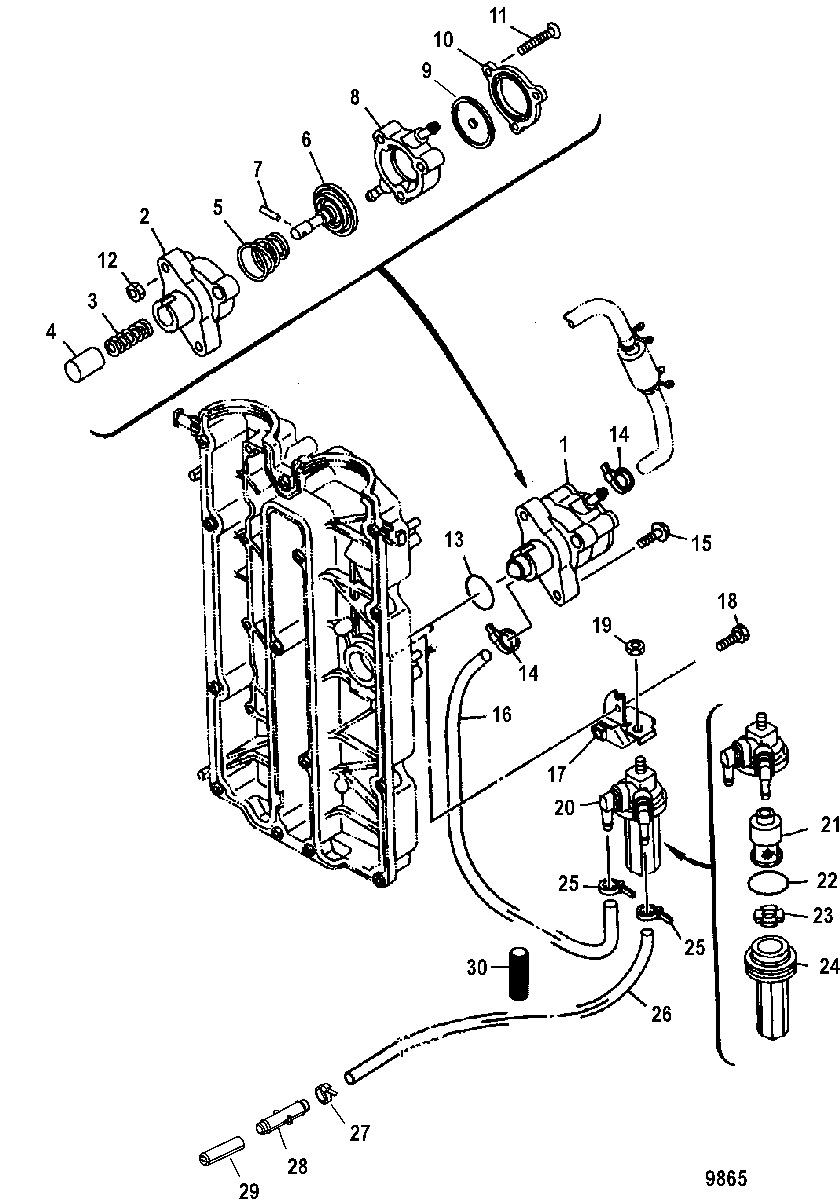

Fuel Pump для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
18M0091468 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
2NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
324-881544 SPRINGSPRING
-
4881545001 PLUNGERPLUNGER
-
524-881546 SPRINGSPRING
-
6881547 DIAPHRAGMDIAPHRAGM
-
717-881548 PINPIN
-
8NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
1110-881550 SCREWSCREW
-
1211-881333 NUTNUT
-
1325-8M0050719 O-RINGO-RING
-
1456762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1510-804256 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
1632-881543001 TUBINGTUBING
-
17881542006 BRACKETBRACKET
-
1810-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1911-82382M NUTNUT
-
2035-881538T02 FILTER ASSEMBLYFILTER ASSEMBLY
-
2135-881540 ELEMENTELEMENT
-
2225-826966T O-RINGO-RING
-
23881541 FLOATFLOAT
-
24881539 CUPCUP
-
2556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
2632-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 55 Inches)
-
2754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2822-822769 CONNECTORCONNECTOR
-
29NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
3032-828547T1 CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk)
-
-27-858732A03 GASKET SET, PowerheadGASKET SET, Powerhead
-
-881310T07 CYLINDER HEAD ASSEMBLY
(75/80/90)CYLINDER HEAD ASSEMBLY
(75/80/90) -
-881310T10 CYLINDER HEAD ASSEMBLY
(100)CYLINDER HEAD ASSEMBLY
(100)
