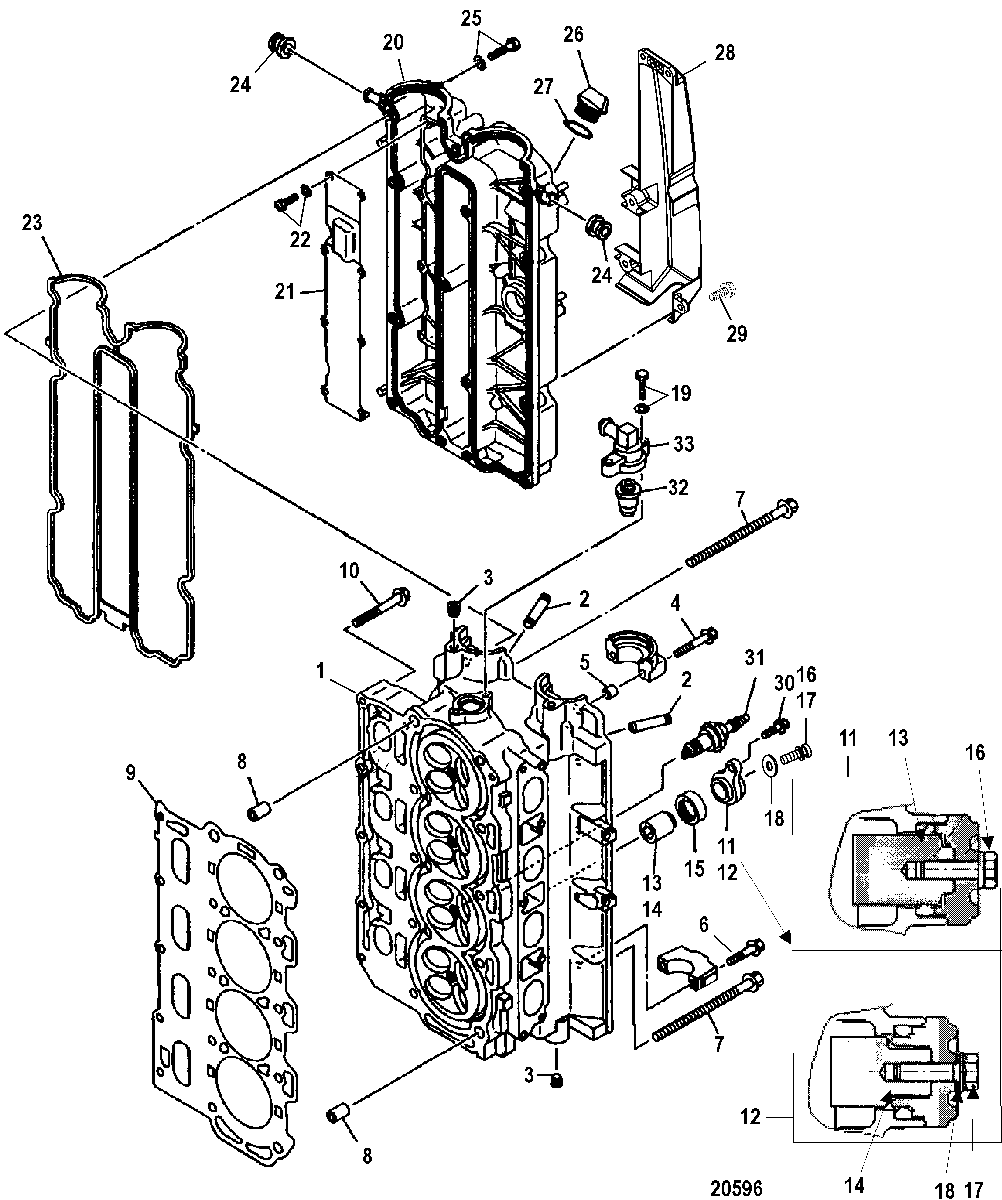

Cylinder Head для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
1881310T04 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
217-804110 PIN, GuidePIN, Guide
-
319-804111 PLUGPLUG
-
410-804112 BOLT, (M7 x 48)BOLT, (M7 x 48)
-
517-804113 PIN, DowelPIN, Dowel
-
610-804114001 BOLT AND WASHERBOLT AND WASHER
-
710-881311 BOLT, (M10 x 145)BOLT, (M10 x 145)
-
823-8M0070515 COLLARCOLLAR
-
927-8041151 GASKETGASKET
-
1010-881312 BOLT, (M8 x 55)BOLT, (M8 x 55)
-
11887847A01 COVER
(Use with Design I Anode)COVER
(Use with Design I Anode) -
1297-804085A01 COVER/ANODE KIT
(Use with Design II Anode)COVER/ANODE KIT
(Use with Design II Anode) -
13887847A01 ANODE
(Design I)ANODE
(Design I) -
1497-804085A01 COVER/ANODE KIT (Included With Reference #12)
(Design II)COVER/ANODE KIT (Included With Reference #12)
(Design II) -
1525-804086 GROMMET (Included With Reference #12)GROMMET (Included With Reference #12)
-
1610-8524741 BOLT, (M6 x 20)
(Use with Design I Anode)BOLT, (M6 x 20)
(Use with Design I Anode) -
1710-84830M BOLT (Included With Reference #12)
(Use with Design II Anode)BOLT (Included With Reference #12)
(Use with Design II Anode) -
1827-95610 GASKET (Included With Reference #12)
(Use with Design II Anode)GASKET (Included With Reference #12)
(Use with Design II Anode) -
1910-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
20881313T02 COVER ASSEMBLY, Cylinder HeadCOVER ASSEMBLY, Cylinder Head
-
21804119 COVER, BreatherCOVER, Breather
-
2210-804120 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
2327-804123001 GASKETGASKET
-
2425-855690 GROMMETGROMMET
-
2510-858530 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
26859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
2725-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
28858752001 COVERCOVER
-
2910-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
3010-881431 BOLT, (M8 x 40)BOLT, (M8 x 40)
-
3133-859495Q SPARK PLUG, (NGK-LFR5A-11)SPARK PLUG, (NGK-LFR5A-11)
-
328556761 THERMOSTAT, 60A°C (140A°F)
(75/80/90)THERMOSTAT, 60A°C (140A°F)
(75/80/90) -
32855676004 THERMOSTAT
(100)THERMOSTAT
(100) -
338041271 THERMOSTAT COVERTHERMOSTAT COVER
-
-27-858732A03 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M0094898 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-881310T07 CYLINDER HEAD ASSEMBLY
(75/80/90)CYLINDER HEAD ASSEMBLY
(75/80/90) -
-881310T10 CYLINDER HEAD ASSEMBLY
(100)CYLINDER HEAD ASSEMBLY
(100)
