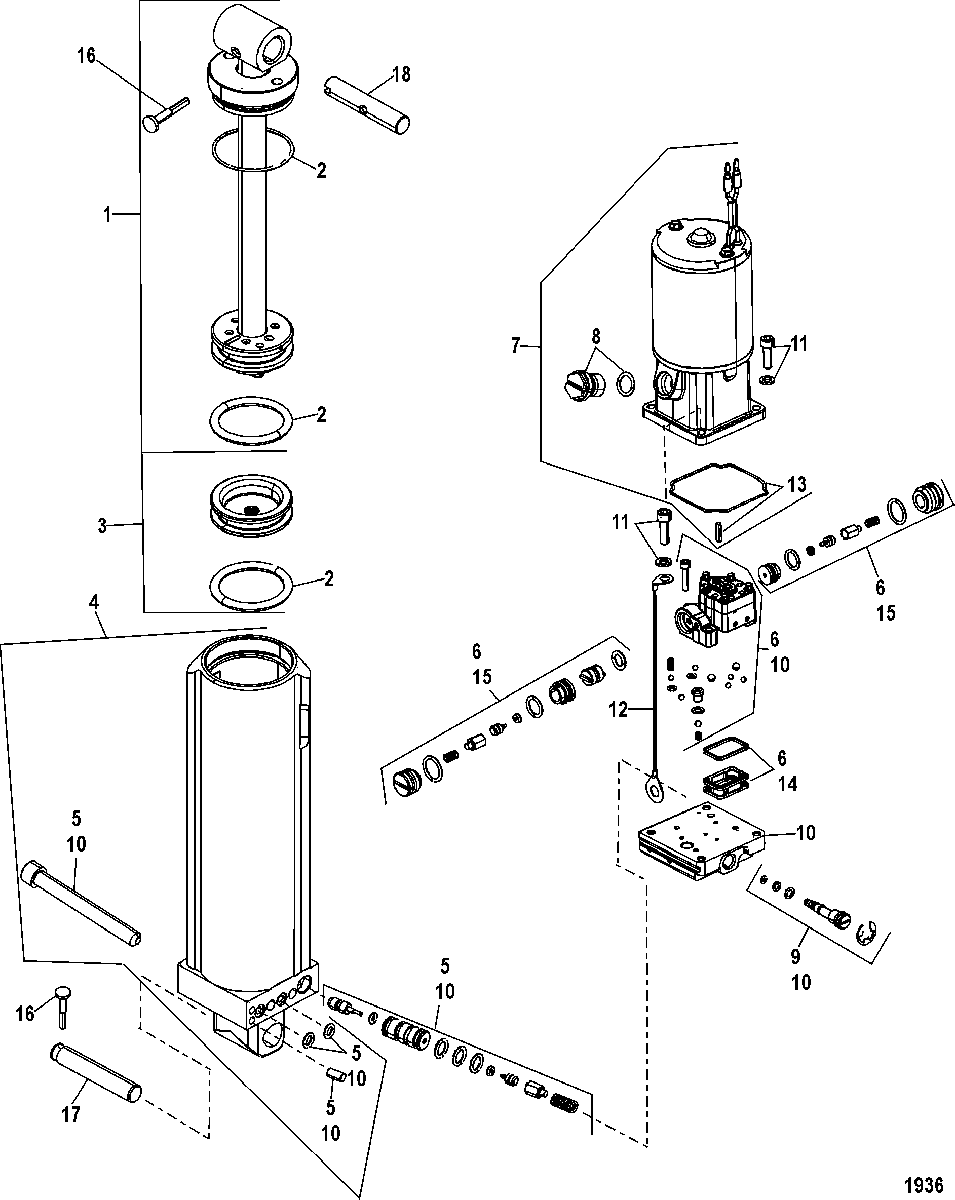

Power Trim Components для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
-8M0090335 PUMP ASSEMBLY, Power TrimPUMP ASSEMBLY, Power Trim
-
18M0089942 SHOCK ROD KITSHOCK ROD KIT
-
225-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
3810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
48M0055015 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
58M0090404 VALVE KIT, Trim LimitVALVE KIT, Trim Limit
-
68M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
7893907A02 MOTOR KITMOTOR KIT
-
822-8134351 PLUGPLUG
-
9893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
108M0055018 MANIFOLD KITMANIFOLD KIT
-
1110-809876A1 SCREW KIT (MOTOR)SCREW KIT (MOTOR)
-
1288238A18 CABLE ASSEMBLYCABLE ASSEMBLY
-
13809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 POPPET KITPOPPET KIT
-
-25-8M0089947 O-RING KIT (COMPLETE TRIM)O-RING KIT (COMPLETE TRIM)
-
1617-821539 PIN, TrilobePIN, Trilobe
-
1717-818898 PIN, AnchorPIN, Anchor
-
1899625002 SHAFTSHAFT
