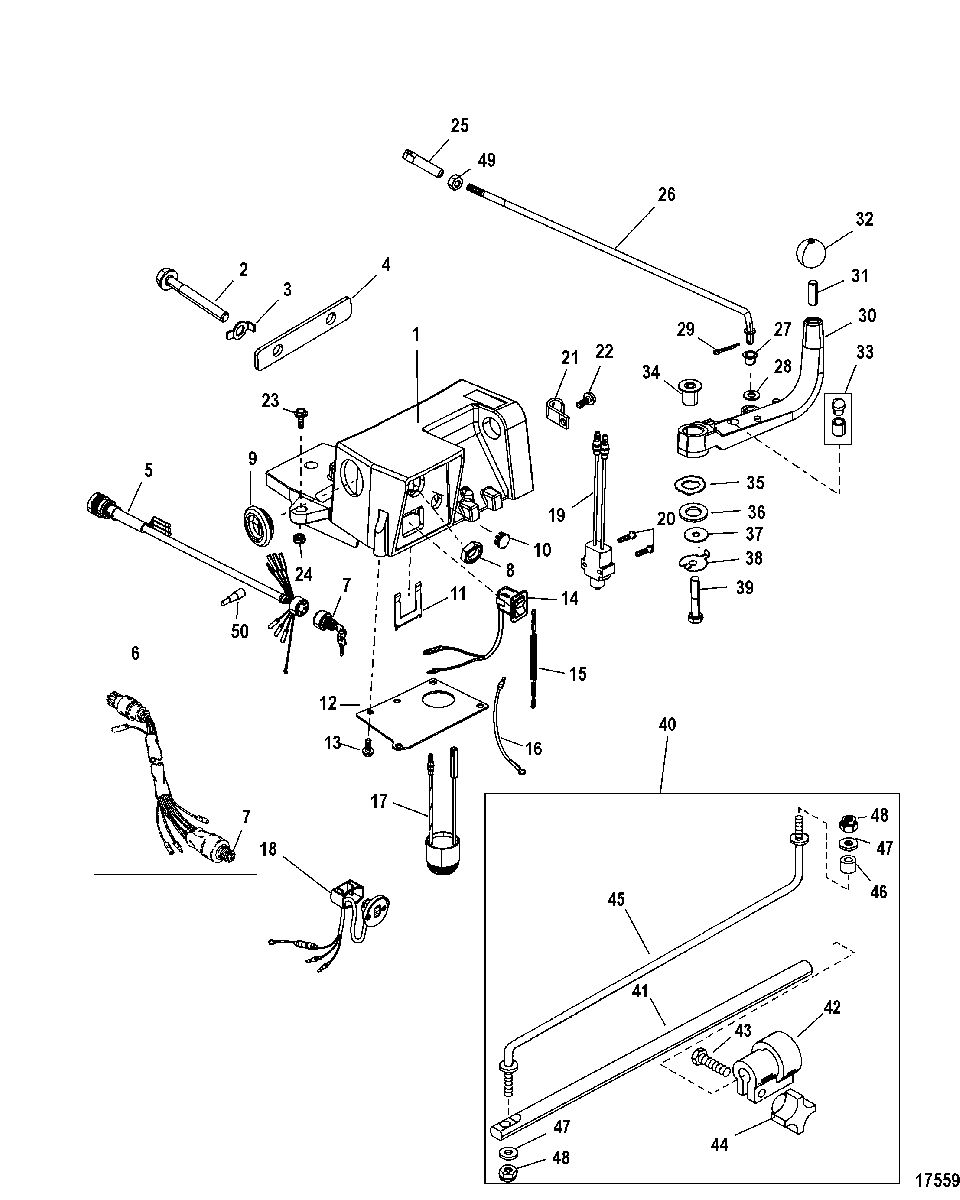

Steering Handle Kit Components для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
-816366A56 STEERING HANDLE KIT
SN# 1B226999 & BelowSTEERING HANDLE KIT
SN# 1B226999 & Below -
-816366A56 STEERING HANDLE KIT
SN# 1B227000 & UpSTEERING HANDLE KIT
SN# 1B227000 & Up -
1816366T10 HANDLE, BracketHANDLE, Bracket
-
210-881261 SCREW, (.313-24 x 3.50)SCREW, (.313-24 x 3.50)
-
314-42981 TAB WASHERTAB WASHER
-
4822263 SPACERSPACER
-
584-12649T08 HARNESS ASSEMBLY
SN# 1B227000 & UpHARNESS ASSEMBLY
SN# 1B227000 & Up -
684-12649A4 HARNESS ASSEMBLY
SN# 1B226999 & BelowHARNESS ASSEMBLY
SN# 1B226999 & Below -
787-88107A5 SWITCH KIT, KeySWITCH KIT, Key
-
811-879755 NUT, Special - Black NylonNUT, Special - Black Nylon
-
9121051 GROMMETGROMMET
-
1019-889730 PLUGPLUG
-
118M0032846 RETAINER, BrassRETAINER, Brass
-
128158041 COVERCOVER
-
1310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1487-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
158M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
1684-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
17889528T01 HORN ASSEMBLYHORN ASSEMBLY
-
1887-18286A19 SWITCH KIT, Trim (25.00 Feet)SWITCH KIT, Trim (25.00 Feet)
-
1987-8M0052927 SWITCHSWITCH
-
2010-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2154-648551 CLAMPCLAMP
-
2210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2310-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
2411-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
2548419T01 ROD ENDROD END
-
26495637 ROD, ShiftROD, Shift
-
2723-26856 BUSHINGBUSHING
-
2812-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
2918-25191 COTTER PINCOTTER PIN
-
308163677 LEVER, ShiftLEVER, Shift
-
3116-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
3298530 KNOBKNOB
-
338M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
3423-8159831 BUSHINGBUSHING
-
3512-823970 WASHERWASHER
-
3612-824610 WASHER, PlasticWASHER, Plastic
-
3712-814803 WASHERWASHER
-
3814-8158051 TAB WASHERTAB WASHER
-
3910-4000357 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
4056-52148A08 CO PILOT ASSEMBLYCO PILOT ASSEMBLY
-
4152148002 PILOT ROD, (15.00 Inches)PILOT ROD, (15.00 Inches)
-
4211-8M0103848 NUT ASSEMBLYNUT ASSEMBLY
-
4310-36137 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
44821621 KNOB, ProngKNOB, Prong
-
45873491 RODROD
-
4623-26841 BUSHINGBUSHING
-
4712-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
4811-826709111 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
4911-64015 NUT, (.250-20)NUT, (.250-20)
-
5013541 PLUG, MalePLUG, Male
-
-NSS NOT SOLD SEPARATE, Decal-ShiftNOT SOLD SEPARATE, Decal-Shift
-
-894911 KEY, Ignition (1A)KEY, Ignition (1A)
-
-894912 KEY, Ignition (1B)KEY, Ignition (1B)
-
-894913 KEY, Ignition (1C)KEY, Ignition (1C)
-
-894914 KEY, Ignition (1D)KEY, Ignition (1D)
-
-894915 KEY, Ignition (1E)KEY, Ignition (1E)
-
-894916 KEY, Ignition (1F)KEY, Ignition (1F)
-
-894917 KEY, Ignition (2A)KEY, Ignition (2A)
-
-894918 KEY, Ignition (2B)KEY, Ignition (2B)
-
-894919 KEY, Ignition (2C)KEY, Ignition (2C)
-
-8949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
-8949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
-8949112 KEY, Ignition (2F)KEY, Ignition (2F)
