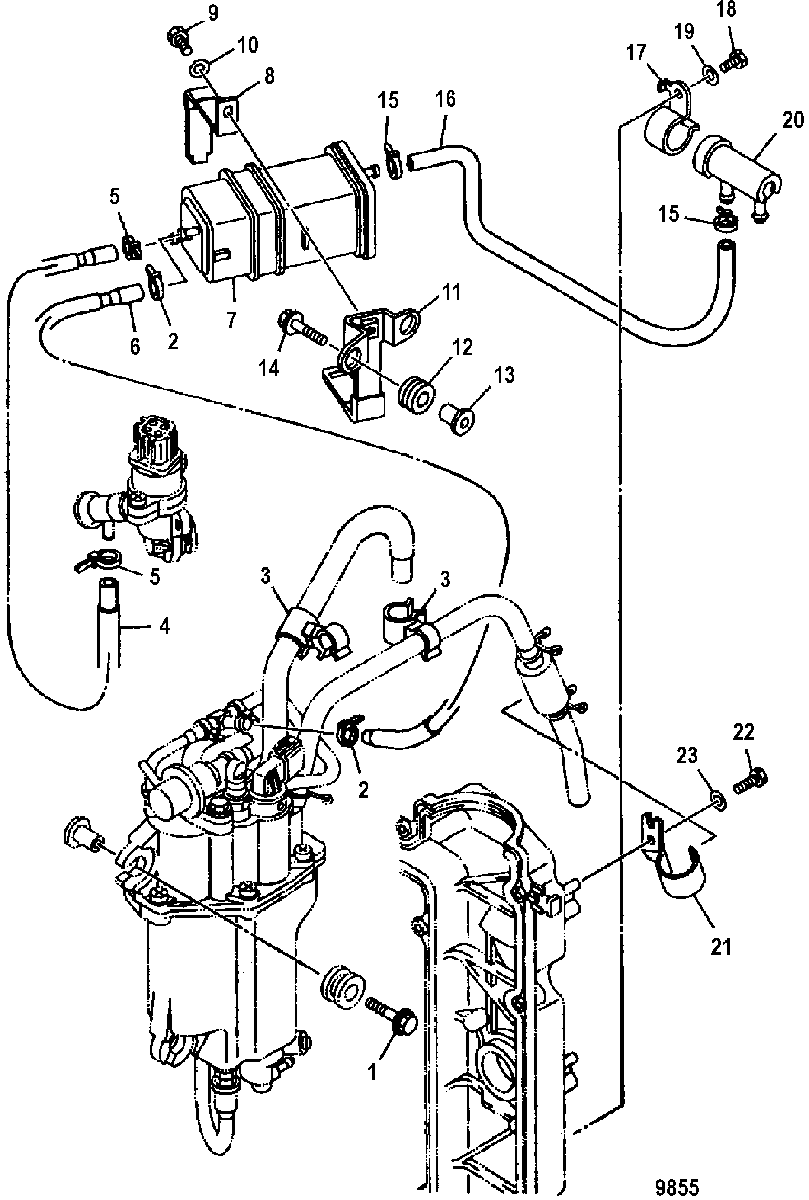

Fuel Hose Routings для Mariner - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
110-852776018 BOLT AND WASHERBOLT AND WASHER
-
256762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
354-881530005 CLAMPCLAMP
-
432-804162005 TUBINGTUBING
-
556762 CLAMPCLAMP
-
632-804162002 TUBING
SN# 1B226999 & BelowTUBING
SN# 1B226999 & Below -
632-804162018 TUBING
SN# 1B227000 & UpTUBING
SN# 1B227000 & Up -
7896354 CANNISTER ASSEMBLYCANNISTER ASSEMBLY
-
8881542004 HOLDERHOLDER
-
910-826957M BOLTBOLT
-
1012-82214M WASHERWASHER
-
11881542005 BRACKETBRACKET
-
1225-804304 GROMMETGROMMET
-
1323-811078M COLLARCOLLAR
-
1410-804270 BOLT, (M6 x 28)BOLT, (M6 x 28)
-
1556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1632-804162003 TUBINGTUBING
-
1754-8M0059039 CLAMPCLAMP
-
1810-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1912-82214M WASHERWASHER
-
2035-888279001 FILTER, FuelFILTER, Fuel
-
218M0059043 BRACKETBRACKET
-
2210-91772M BOLTBOLT
-
2312-82214M WASHERWASHER
