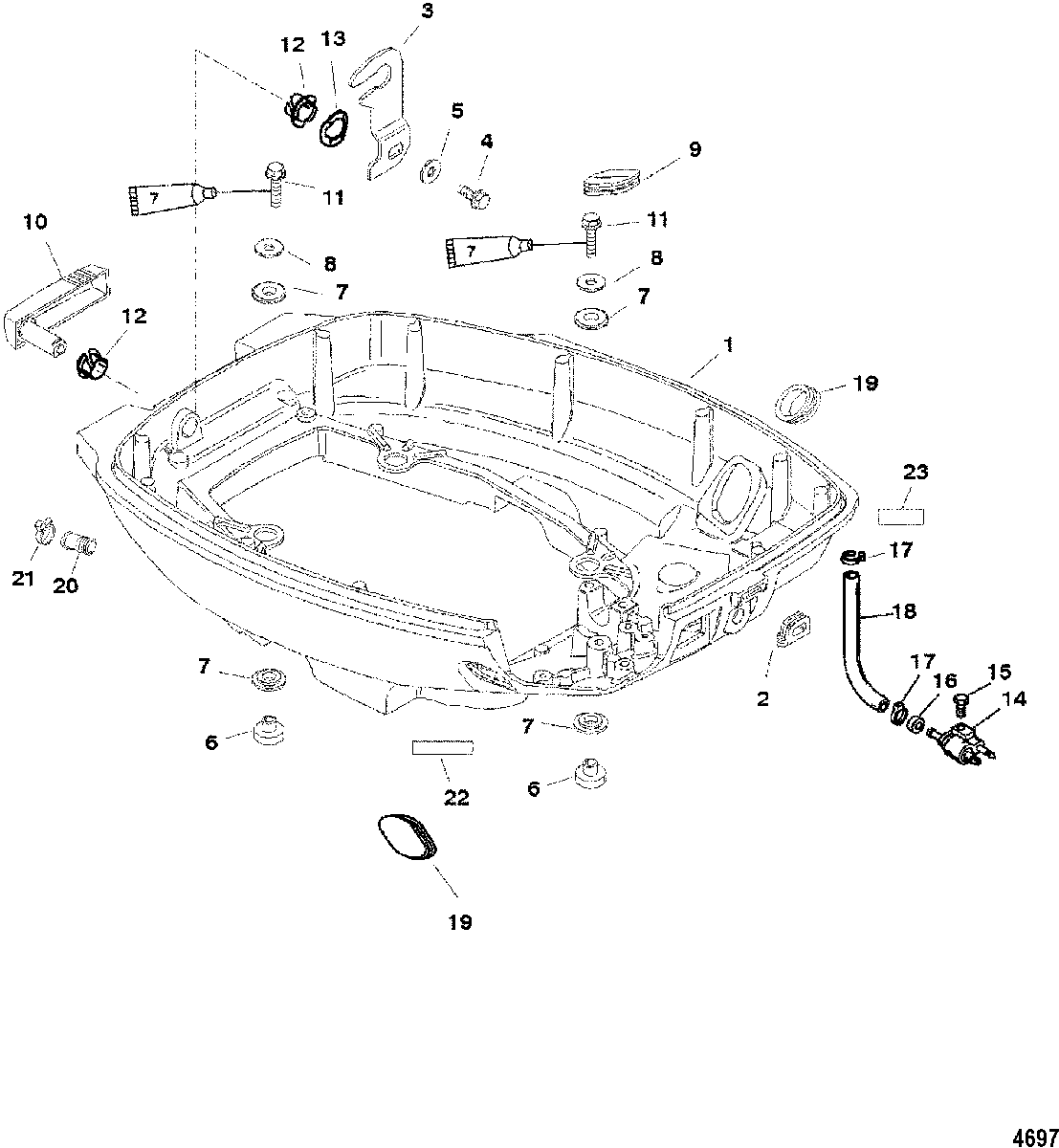

Bottom Cowl для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
14000-835416A1 BOTTOM COWL
(Black)BOTTOM COWL
(Black) -
225-857002 COVERCOVER
-
3852480 LATCH HOOKLATCH HOOK
-
410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
512-4002316 WASHERWASHER
-
623-826618 BUSHINGBUSHING
-
725-828129 GROMMETGROMMET
-
812-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
925-855289T GROMMETGROMMET
-
10825782F1 LEVER, Cowl Latch
(Black)LEVER, Cowl Latch
(Black) -
1110-1993735 SCREW, (M6 x 35 MM)SCREW, (M6 x 35 MM)
-
1223-812707 BUSHINGBUSHING
-
1313-12134 WASHER, WaveWASHER, Wave
-
1422-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
1510-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
1625-18202 GROMMET, Fuel ConnectorGROMMET, Fuel Connector
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1832-85682931 TUBING, (13.00 Inches)
SN# 0T003862 & UpTUBING, (13.00 Inches)
SN# 0T003862 & Up -
1832-9912878 HOSE, (.187) (26.00 Inches Bulk)
(Cut to 21 Inch Length) SN# 0T003861 & BelowHOSE, (.187) (26.00 Inches Bulk)
(Cut to 21 Inch Length) SN# 0T003861 & Below -
19826037 PLUGPLUG
-
2022-813613 FITTINGFITTING
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
22NSS NOT SOLD SEPARATE, Decal Unleaded Fuel
(Bodensee)NOT SOLD SEPARATE, Decal Unleaded Fuel
(Bodensee) -
2337-111851 SHIFT DECAL
(Handle) (Use Where Applicable)SHIFT DECAL
(Handle) (Use Where Applicable)
