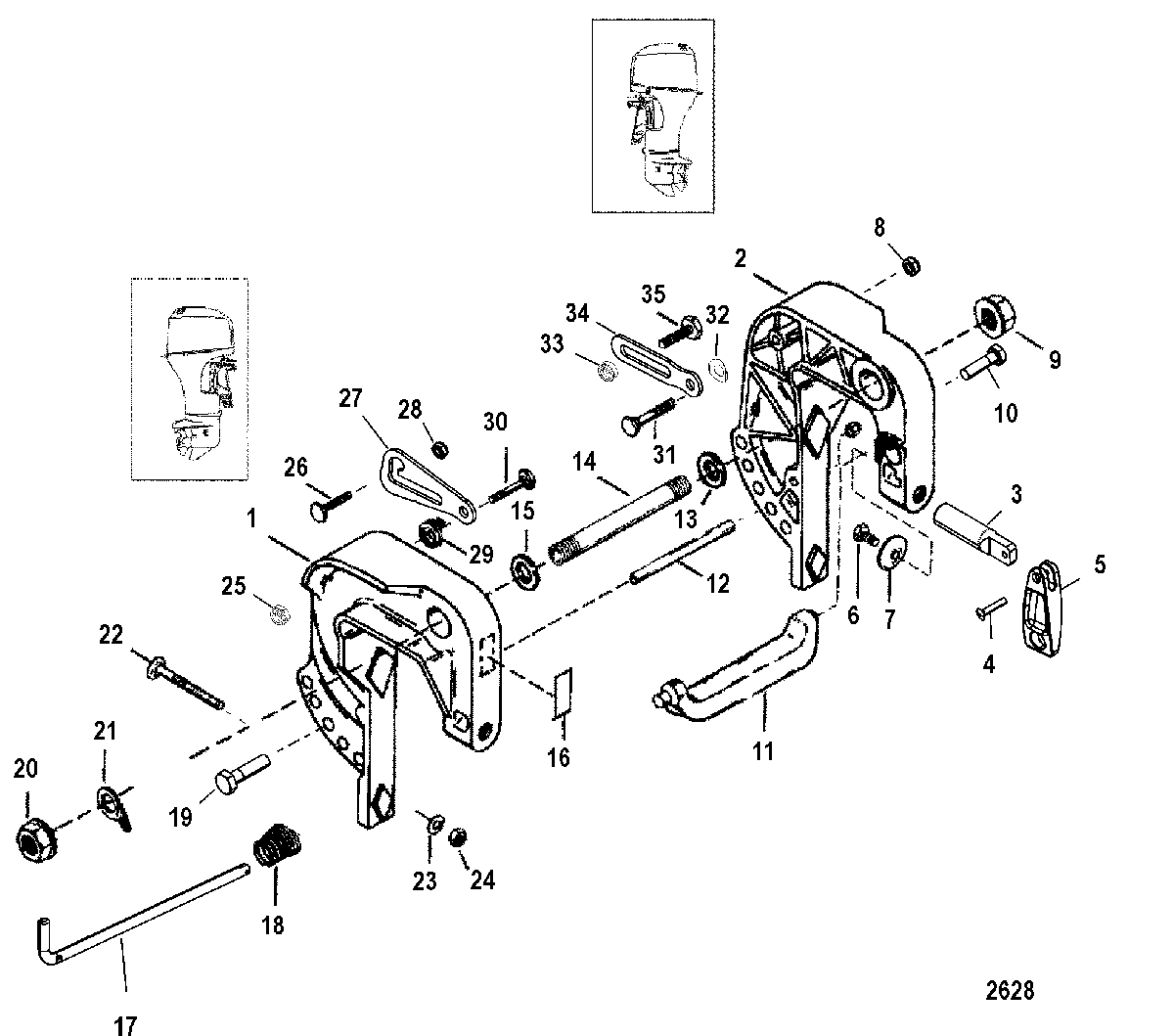

Clamp Bracket для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999

№

Артикул

Название
1

1497-8796A7 BRACKET ASSEMBLY, Transom
(Starboard) (Black)

BRACKET ASSEMBLY, Transom
(Starboard) (Black)

10 620 ₽
2

1497-8794A9 BRACKET ASSEMBLY, Transom
(Port) (Black)

BRACKET ASSEMBLY, Transom
(Port) (Black)

14 370 ₽
3

10-92767A6 THUMB SCREW ASSEMBLY
(2.68) (Not included With Clamp Bracket Replacement)

THUMB SCREW ASSEMBLY
(2.68) (Not included With Clamp Bracket Replacement)

2 300 ₽
3

10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
(3.68)

THUMB SCREW ASSEMBLY, (16 mm)
(3.68)

2 970 ₽
4

NSS NOT SOLD SEPARATE, Rivet

NOT SOLD SEPARATE, Rivet

0 ₽
5

NSS NOT SOLD SEPARATE, Handle

NOT SOLD SEPARATE, Handle

0 ₽
6

10-768042 SHOULDER SCREW, Hex

SHOULDER SCREW, Hex

120 ₽
7

12-818884 WASHER, Thumb Screw

WASHER, Thumb Screw

750 ₽
8

11-826709109 NUT, (.250-28) Stainless Steel

NUT, (.250-28) Stainless Steel

220 ₽
9

11-93164 NUT, (.875)

NUT, (.875)

340 ₽
10

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
11

41042 HANDLE, Carrying

HANDLE, Carrying

1 810 ₽
12

23-818538 SPACER

SPACER

640 ₽
13

12-71421 WASHER, Nylon, Tilt Tube

WASHER, Nylon, Tilt Tube

120 ₽
14

8M0035075 TILT TUBE

TILT TUBE

4 440 ₽
15

12-71421 WASHER, Nylon, Tilt Tube

WASHER, Nylon, Tilt Tube

120 ₽
16

37-8237011 DECAL, Co-Pilot
(Handle Models)

DECAL, Co-Pilot
(Handle Models)

170 ₽
17

17-56373A2 PIN ASSEMBLY, Tilt

PIN ASSEMBLY, Tilt

2 180 ₽
18

24-92995 SPRING

SPRING

320 ₽
19

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
20

11-93164 NUT, (.875)

NUT, (.875)

340 ₽
21

54-8M0085928 CLIP, Safety

CLIP, Safety

640 ₽
22

10-814945 SCREW, (.312-18 x 3.500) Stainless Steel

SCREW, (.312-18 x 3.500) Stainless Steel

440 ₽
23

12-67981 WASHER

WASHER

210 ₽
24

11-815848 NUT, (.312)

NUT, (.312)

480 ₽
25

11-826709109 NUT, (.250-28) Stainless Steel

NUT, (.250-28) Stainless Steel

220 ₽
26

10-41523 SCREW, (.250-28 x 1.00)

SCREW, (.250-28 x 1.00)

400 ₽
27

96965 LEVER, Tilt Stop-Starboard Side

LEVER, Tilt Stop-Starboard Side

3 180 ₽
28

11-826709109 NUT, (.250-28) Stainless Steel

NUT, (.250-28) Stainless Steel

220 ₽
29

24-44581 SPRING, Tilt Stop Lever Screw

SPRING, Tilt Stop Lever Screw

280 ₽
30

10-41524 SCREW, (.250-28 x 1.75)

SCREW, (.250-28 x 1.75)

590 ₽
31

10-41524 SCREW, (.250-28 x 1.75)

SCREW, (.250-28 x 1.75)

590 ₽
32

13-31030 WAVE WASHER, Tilt Stop Strap Screw

WAVE WASHER, Tilt Stop Strap Screw

140 ₽
33

11-826709109 NUT, (.250-28) Stainless Steel

NUT, (.250-28) Stainless Steel

220 ₽
34

90901 STRAP, Tilt Stop-Port Side

STRAP, Tilt Stop-Port Side

1 410 ₽
35

10-41523 SCREW, (.250-28 x 1.00)

SCREW, (.250-28 x 1.00)

400 ₽
