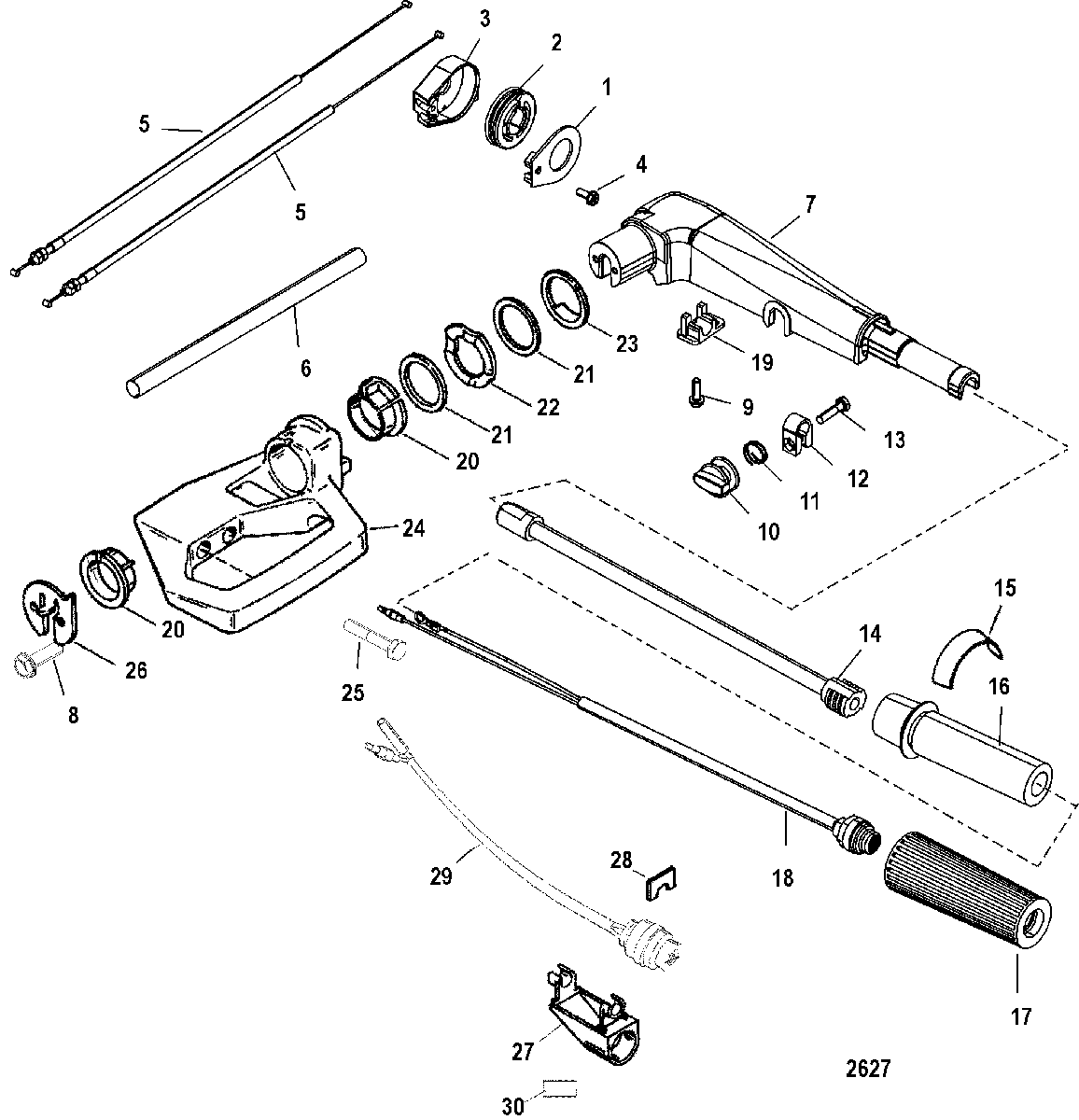

Tiller Handle для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
-821468T65 TILLER HANDLE ASSEMBLY
(Black)TILLER HANDLE ASSEMBLY
(Black) -
1822148A3 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
543242T09 CABLE, ThrottleCABLE, Throttle
-
685-9600910 SLEEVESLEEVE
-
7821468A66 ARM ASSEMBLY, Steering Handle
(Black)ARM ASSEMBLY, Steering Handle
(Black) -
810-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
10821972T KNOB, ThrottleKNOB, Throttle
-
1124-96203 SPRINGSPRING
-
12892995 LOCK, ThrottleLOCK, Throttle
-
1310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
14821463T01 TILLER TUBETILLER TUBE
-
1537-8242003 DECALDECAL
-
16821465 HANDLE, ThrottleHANDLE, Throttle
-
1799589003 GRIPGRIP
-
1887-8M0104613 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
19822441 RETAINERRETAINER
-
2023-823939 BUSHINGBUSHING
-
2112-822145 WASHERWASHER
-
2213-826792 WAVE WASHERWAVE WASHER
-
2312-822146 WASHERWASHER
-
24822841F1 BRACKET, Steering Arm
(Black)BRACKET, Steering Arm
(Black) -
2510-4000384 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
26826648 PLATEPLATE
-
27889734 HOUSING
(Electric Handle) SN# USA-0T800999/BEL-0P267999 & BelowHOUSING
(Electric Handle) SN# USA-0T800999/BEL-0P267999 & Below -
27889734 HOUSING, Switch
(Electric Handle) SN# USA-0T801000/BEL-0P268000 & UpHOUSING, Switch
(Electric Handle) SN# USA-0T801000/BEL-0P268000 & Up -
28824918 CLIP
(Electric Handle)CLIP
(Electric Handle) -
2987-823609A8 SWITCH ASSEMBLY
(Electric Handle)SWITCH ASSEMBLY
(Electric Handle) -
3037-855262 DECAL, Start
(Electric Handle)DECAL, Start
(Electric Handle)
