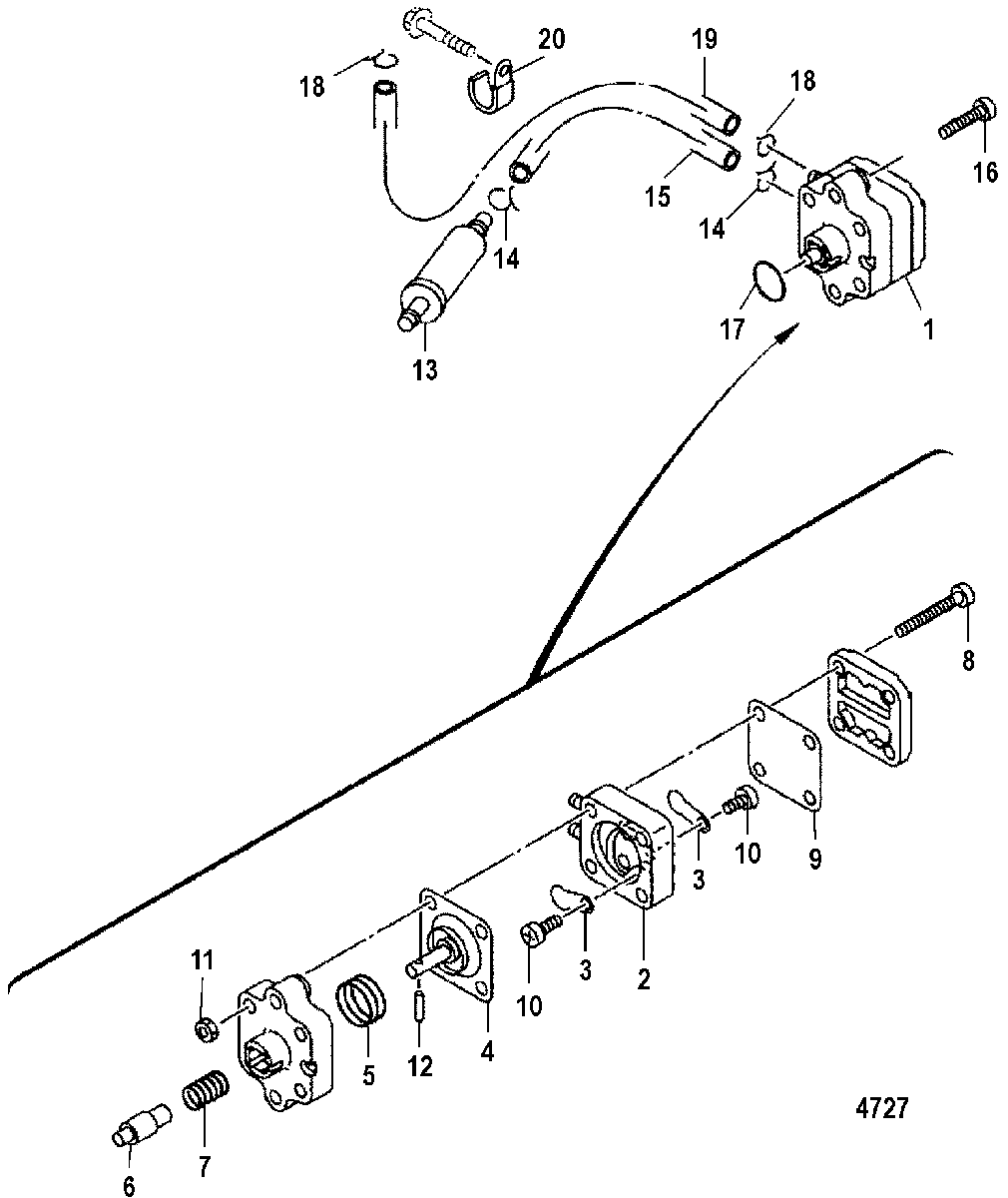

Fuel Pump для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
1835389T02 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
2NSS NOT SOLD SEPARATE, BodyNOT SOLD SEPARATE, Body
-
321-41888M CHECK VALVECHECK VALVE
-
4809561A01 DIAPHRAGMDIAPHRAGM
-
524-8095622 SPRINGSPRING
-
68095632 PLUNGERPLUNGER
-
724-8095623 SPRINGSPRING
-
810-8095641 SCREW, (M4 x 30)SCREW, (M4 x 30)
-
9809561A01 DIAPHRAGMDIAPHRAGM
-
1010-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
1111-8237515 NUT, (M4)NUT, (M4)
-
1217-8095662 PINPIN
-
1335-816296A3 FILTER, Fuel, To Fuel Connector
SN# 0T003862 & UpFILTER, Fuel, To Fuel Connector
SN# 0T003862 & Up -
1335-80365M FILTER, To Fuel Connector
SN# 0T003861 & BelowFILTER, To Fuel Connector
SN# 0T003861 & Below -
1454-816311T TIE STRAP, (8.00 Inches)
SN# 0T003862 & UpTIE STRAP, (8.00 Inches)
SN# 0T003862 & Up -
1454-82047M CLAMP
SN# 0T003861 & BelowCLAMP
SN# 0T003861 & Below -
1532-896273 HOSE, Molded
SN# 0T003862 & UpHOSE, Molded
SN# 0T003862 & Up -
1532-8M0060021 HOSE (2.44 Inches)
SN# 0T003861 & BelowHOSE (2.44 Inches)
SN# 0T003861 & Below -
1610-855683 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1725-825478 O-RINGO-RING
-
1854-82047M CLAMPCLAMP
-
1932-8M0053527 HOSE, To CarbHOSE, To Carb
-
2054-83577M CLAMPCLAMP
-
-27-835427A00 GASKET SET, PowerheadGASKET SET, Powerhead
