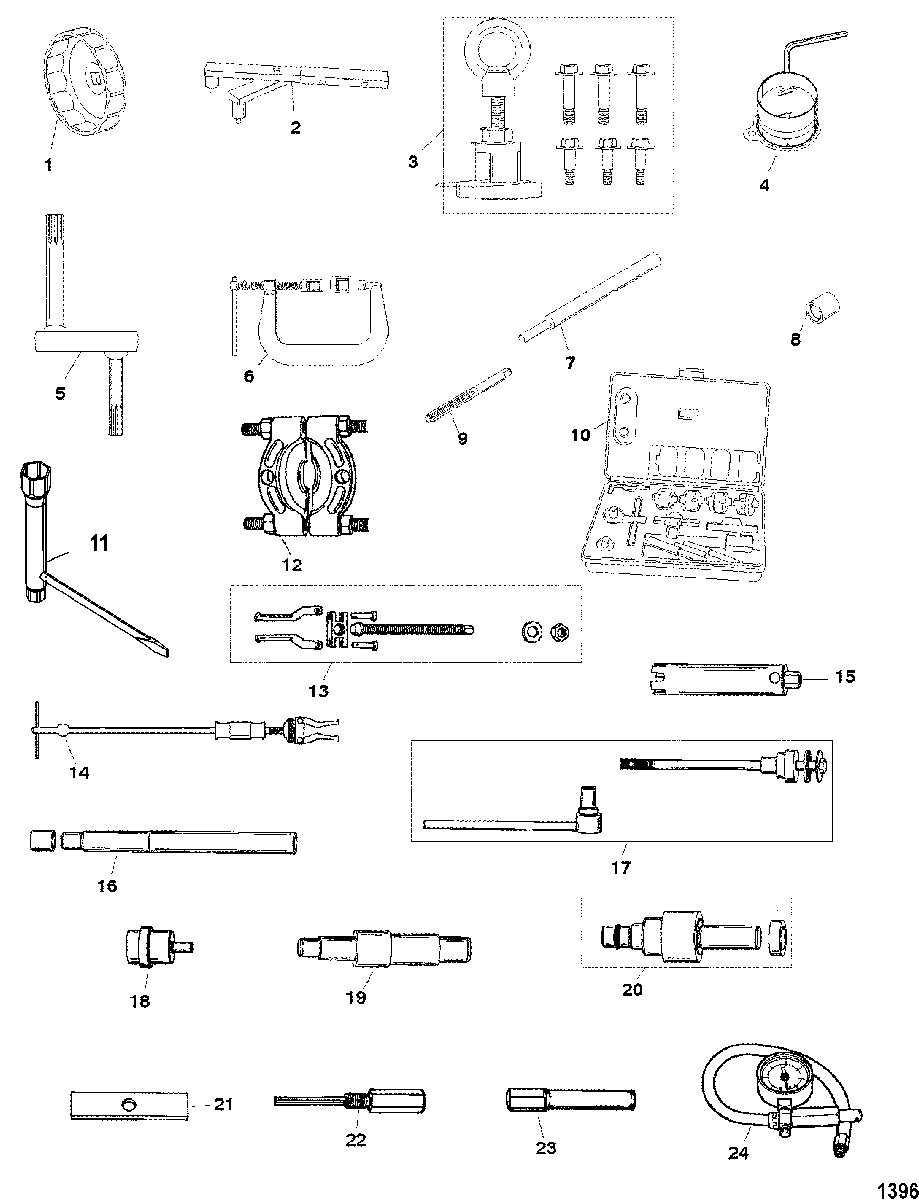

Tools для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, Oil Filter Wrench (Obtain Locally)NOT SOLD SEPARATE, Oil Filter Wrench (Obtain Locally)
-
291-83164M FLYWHEEL PULLERFLYWHEEL PULLER
-
391-24937T01 HOLDER TOOL, FlywheelHOLDER TOOL, Flywheel
-
4FT2997 COMPRESSOR TOOL, Piston RingCOMPRESSOR TOOL, Piston Ring
-
691-809494A1 COMPRESSOR TOOL, Valve SpringCOMPRESSOR TOOL, Valve Spring
-
791-809495001 REMOVER TOOL, Valve GuideREMOVER TOOL, Valve Guide
-
891-809496A1 INSTALLER TOOL, Valve Guide BushingINSTALLER TOOL, Valve Guide Bushing
-
991-809497A1 REAMER TOOL, Valve GuideREAMER TOOL, Valve Guide
-
10NSS NOT SOLD SEPARATE, Valve Seat Cutter Kit (Obtain Locally)NOT SOLD SEPARATE, Valve Seat Cutter Kit (Obtain Locally)
-
1191-828999 WRENCHWRENCH
-
1291-37241 PULLER PLATEPULLER PLATE
-
1391-83165T PULLER ASSEMBLYPULLER ASSEMBLY
-
1491-34569A1 PULLER ASSEMBLY, Slide HammerPULLER ASSEMBLY, Slide Hammer
-
1591-13664 INSTALLER TOOL, Bearing
(Non-Bigfoot)INSTALLER TOOL, Bearing
(Non-Bigfoot) -
1591-93843T1 INSTALLER TOOL, Bearing Carrier
(Bigfoot)INSTALLER TOOL, Bearing Carrier
(Bigfoot) -
1691-824788A1 REMOVAL TOOL, BearingREMOVAL TOOL, Bearing
-
1791-824790A1 INSTALLATION TOOL, Driveshaft BushingINSTALLATION TOOL, Driveshaft Bushing
-
1891-13658T MANDRELMANDREL
-
1991-824787 REMOVAL TOOL, BushingREMOVAL TOOL, Bushing
-
2091-824785T1 INSTALLER TOOL, Bushing And SealINSTALLER TOOL, Bushing And Seal
-
2191-29310 PLATEPLATE
-
22NSS NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG40-4)NOT SOLD SEPARATE, Expanding Rod (Snap-On #CG40-4)
-
23NSS NOT SOLD SEPARATE, Collet (Jaws)(Snap-On #CG40A6)NOT SOLD SEPARATE, Collet (Jaws)(Snap-On #CG40A6)
-
24FT8950 TESTER KITTESTER KIT
