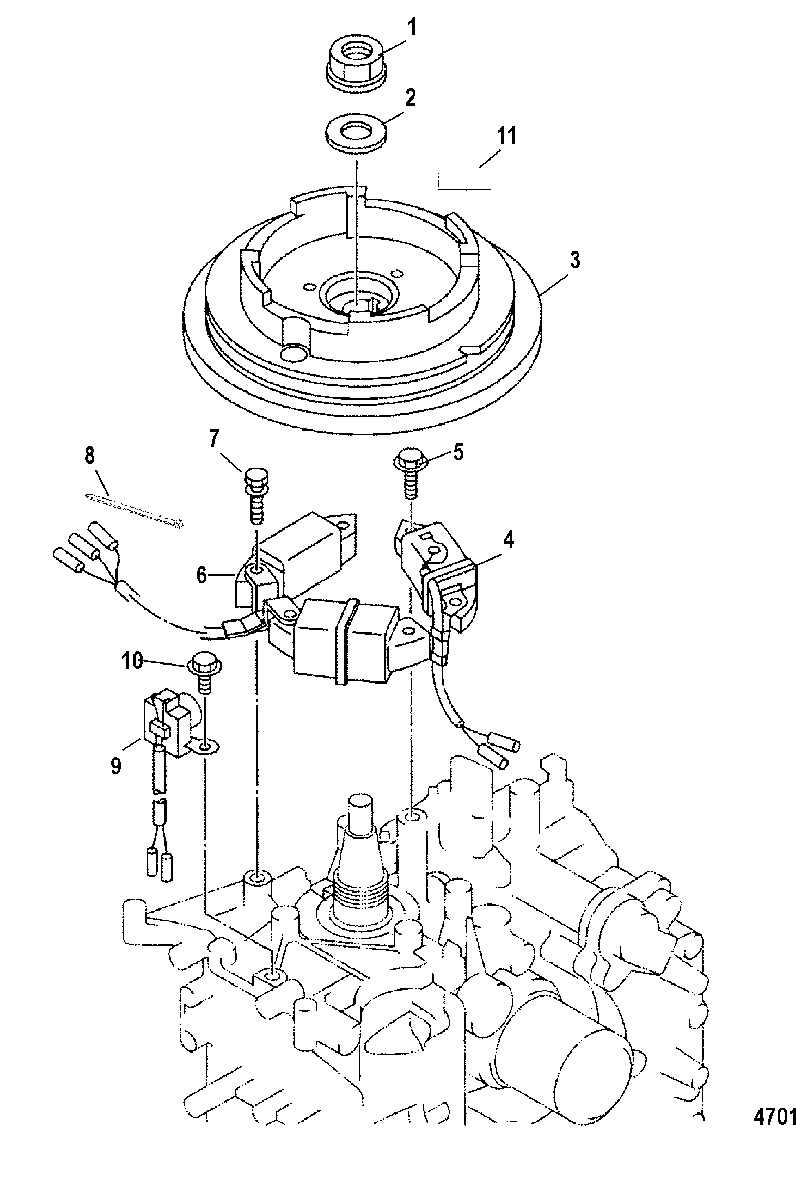

Flywheel для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
111-96650M NUT, (M16)NUT, (M16)
-
212-96651M WASHERWASHER
-
3856031 FLYWHEEL
(Manual)FLYWHEEL
(Manual) -
3835397 FLYWHEEL
(Electric)FLYWHEEL
(Electric) -
4835399T COIL, ChargingCOIL, Charging
-
510-853536 BOLT, (M6 x 25)BOLT, (M6 x 25)
-
6835387 COIL, Lighting
(Manual)COIL, Lighting
(Manual) -
6855944 COIL, Lighting
(Electric)COIL, Lighting
(Electric) -
710-858530 BOLT, (M6 x 30)
(Manual)BOLT, (M6 x 30)
(Manual) -
710-853531 BOLT, (M6 x 40)
(Electric)BOLT, (M6 x 40)
(Electric) -
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
9835395 PULSERPULSER
-
1010-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
11NSS NOT SOLD SEPARATE, Decal-Warning NeutralNOT SOLD SEPARATE, Decal-Warning Neutral
