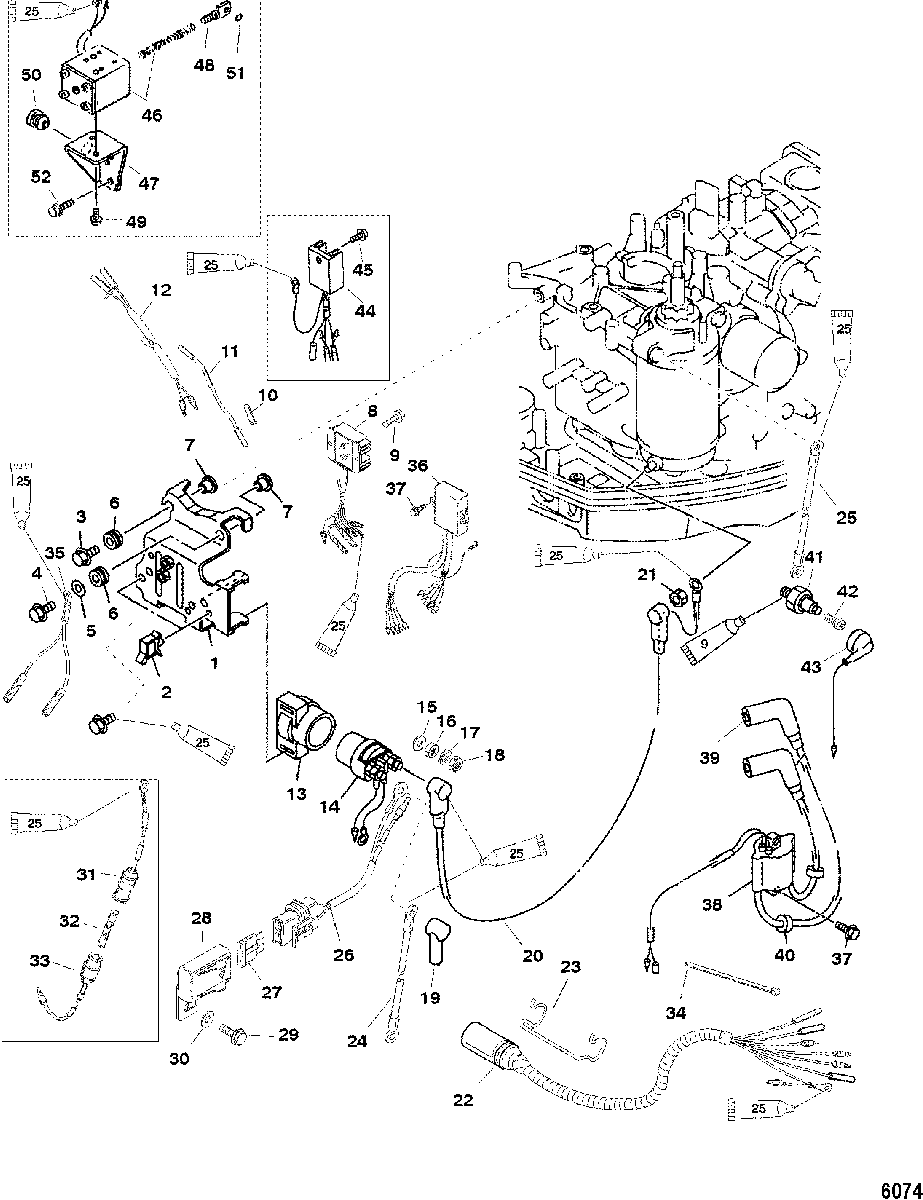

Electrical Components для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
1835403T1 BRACKET
(Electric)BRACKET
(Electric) -
1835403T BRACKET
(Manual)BRACKET
(Manual) -
254-855686 CLAMPCLAMP
-
310-855810 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
410-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
512-855811 WASHERWASHER
-
625-97687M GROMMETGROMMET
-
723-852473 COLLARCOLLAR
-
8854650T2 RECTIFIER/REGULATOR
(Electric)RECTIFIER/REGULATOR
(Electric) -
910-811188T BOLT, (M6 x 16)
(Electric)BOLT, (M6 x 16)
(Electric) -
1013540 CAP, Female
(Electric)CAP, Female
(Electric) -
1013541 PLUG, Male
(Electric)PLUG, Male
(Electric) -
1184-11149A43 CABLE ASSEMBLY, Brown/White
(Electric)CABLE ASSEMBLY, Brown/White
(Electric) -
1284-824372A1 CABLE ASSEMBLY
(Electric)CABLE ASSEMBLY
(Electric) -
138M0010250 BRACKET
(Electric)BRACKET
(Electric) -
1489-8M0098898 RELAY
(Electric)RELAY
(Electric) -
1512-827205 WASHER
(Electric)WASHER
(Electric) -
1611-827204 NUT, (M6)
(Electric)NUT, (M6)
(Electric) -
1713-400256 LOCKWASHER, (M6)
(Electric)LOCKWASHER, (M6)
(Electric) -
1811-400212 NUT, (M6) Stainless Steel
(Electric)NUT, (M6) Stainless Steel
(Electric) -
1985-804284001 BOOT
(Electric)BOOT
(Electric) -
20855742 LEAD WIRE
(Electric)LEAD WIRE
(Electric) -
2111-94330 NUT, (.250-20) Brass
(Electric)NUT, (.250-20) Brass
(Electric) -
2284-859312T1 HARNESS ASSEMBLY, Engine Wiring
(Electric)HARNESS ASSEMBLY, Engine Wiring
(Electric) -
2392753 RETAINER
(Electric)RETAINER
(Electric) -
2484-88439A29 CABLE ASSEMBLY, Battery - Positive
(Electric)CABLE ASSEMBLY, Battery - Positive
(Electric) -
2584-88439A30 CABLE ASSEMBLY, Battery - Negative
(Electric)CABLE ASSEMBLY, Battery - Negative
(Electric) -
2684-859451A1 HARNESS ASSEMBLY, Fuse
(1 Piece Design)HARNESS ASSEMBLY, Fuse
(1 Piece Design) -
2788-812619 FUSE, Yellow - 20 Ampere
(1 Piece Design)FUSE, Yellow - 20 Ampere
(1 Piece Design) -
28828054 COVER, Fuse
(1 Piece Design)COVER, Fuse
(1 Piece Design) -
2910-82130012 SCREW, (M6 x 12)
(1 Piece Design)SCREW, (M6 x 12)
(1 Piece Design) -
3012-29245 WASHER, (.281 x .500 x .060) Stainless Steel
(1 Piece Design)WASHER, (.281 x .500 x .060) Stainless Steel
(1 Piece Design) -
3184-859451A1 CABLE ASSEMBLY, Fuse
(Multi-Piece Design)CABLE ASSEMBLY, Fuse
(Multi-Piece Design) -
3288-79091 FUSE, 20 Ampere
(Multi-Piece Design)FUSE, 20 Ampere
(Multi-Piece Design) -
3384-95084A19 CABLE ASSEMBLY, Fuse
(Multi-Piece Design)CABLE ASSEMBLY, Fuse
(Multi-Piece Design) -
3454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3584-824912A6 CABLE ASSEMBLY
(Handle)CABLE ASSEMBLY
(Handle) -
36835401T1 CDI UNITCDI UNIT
-
3710-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
38855685T COIL ASSEMBLY, Ignition - Includes Leads and BootsCOIL ASSEMBLY, Ignition - Includes Leads and Boots
-
3984-825102A1 HIGH TENSION LEADHIGH TENSION LEAD
-
4025-82069M GROMMETGROMMET
-
41853524 SWITCH, Oil PressureSWITCH, Oil Pressure
-
42NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
43853537 LEAD WIRELEAD WIRE
-
44835406 RECTIFIER/REGULATOR
(Manual)RECTIFIER/REGULATOR
(Manual) -
4510-811188T BOLT, (M6 x 16)
(Manual)BOLT, (M6 x 16)
(Manual) -
4689-853598T SOLENOID ASSEMBLY
(Electric Non/Handle)SOLENOID ASSEMBLY
(Electric Non/Handle) -
47853599T BRACKET
(Electric Non/Handle)BRACKET
(Electric Non/Handle) -
48853601 HOOK WIRE
(Electric Non/Handle)HOOK WIRE
(Electric Non/Handle) -
4910-855739 SCREW, (M5 x 8)
(Electric Non/Handle)SCREW, (M5 x 8)
(Electric Non/Handle) -
5025-91782M GROMMET
(Electric Non/Handle)GROMMET
(Electric Non/Handle) -
5125-82258M O-RING
(Electric Non/Handle)O-RING
(Electric Non/Handle) -
5210-811188T BOLT, (M6 x 16)
(Electric Non/Handle)BOLT, (M6 x 16)
(Electric Non/Handle) -
-802733A98 POWERHEAD ASSEMBLY
(Electric)POWERHEAD ASSEMBLY
(Electric) -
-802733A98 POWERHEAD ASSEMBLY
(Manual) SN# USA-0T178499 & BelowPOWERHEAD ASSEMBLY
(Manual) SN# USA-0T178499 & Below -
-879783A01 POWERHEAD ASSEMBLY
(Manual) SN# USA-0T178500/BEL-0P094500 & UpPOWERHEAD ASSEMBLY
(Manual) SN# USA-0T178500/BEL-0P094500 & Up
