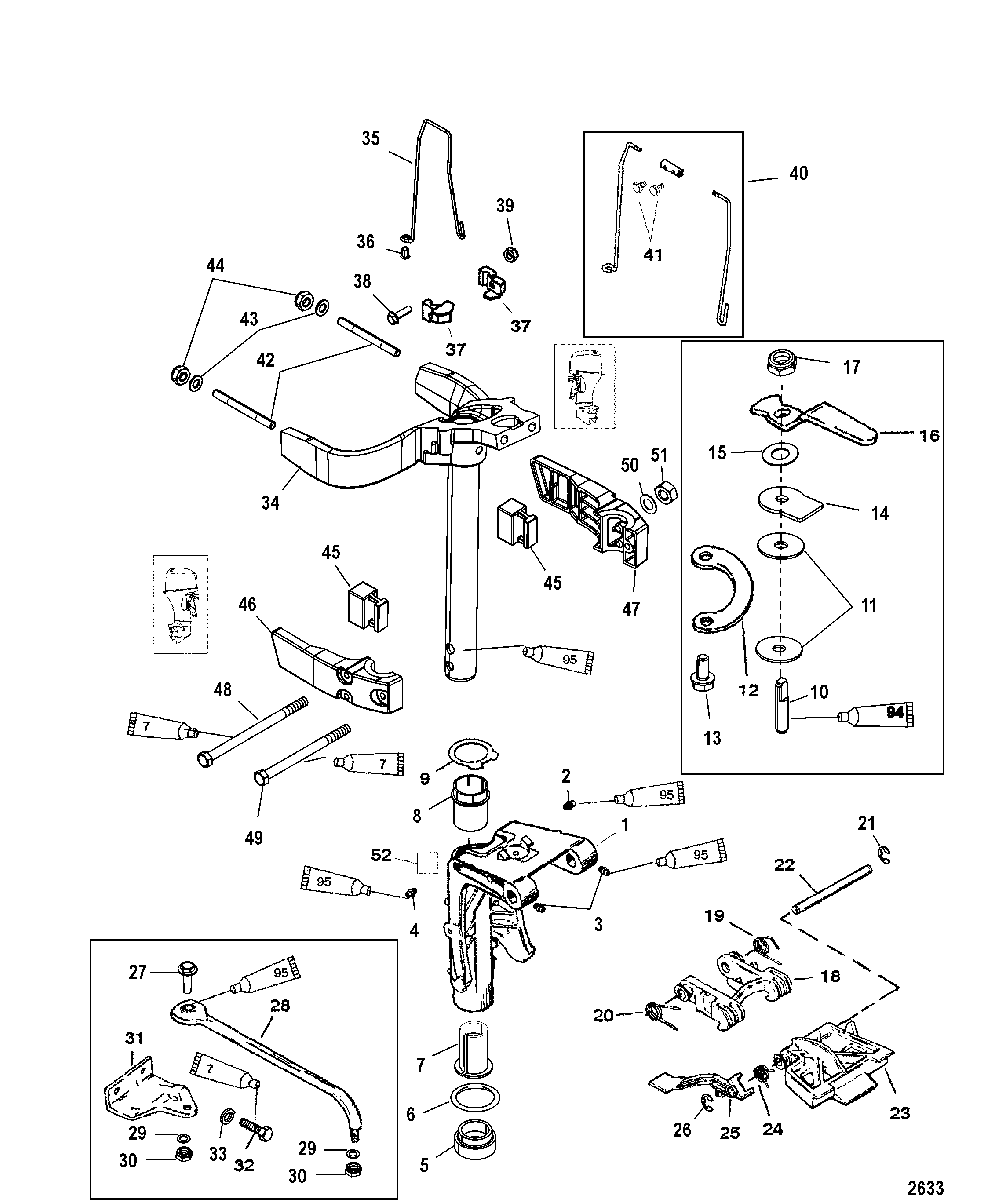

Swivel Bracket для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
13415-822237A3 SWIVEL BRACKET
(Black)SWIVEL BRACKET
(Black) -
222-74036 FITTING, GreaseFITTING, Grease
-
322-74036 FITTING, GreaseFITTING, Grease
-
422-74036 FITTING, GreaseFITTING, Grease
-
523-855628A1 BUSHINGBUSHING
-
6NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
7NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
8NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
9NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
10821961 ROD
(Handle)ROD
(Handle) -
118165621 DISC
(Handle)DISC
(Handle) -
12821958A1 PLATE KIT
(Handle)PLATE KIT
(Handle) -
1310-40011126 SCREW, (M6 x 13) Stainless Steel
(Handle)SCREW, (M6 x 13) Stainless Steel
(Handle) -
14821957 BRAKE PLATE
(Handle)BRAKE PLATE
(Handle) -
1512-29330 WASHER
(Handle)WASHER
(Handle) -
16821959 HANDLE
(Handle)HANDLE
(Handle) -
1711-8M0042636 NUT, (.375-24) Stainless Steel
(Handle)NUT, (.375-24) Stainless Steel
(Handle) -
1898830A4 HOOK ASSEMBLY, Reverse LockHOOK ASSEMBLY, Reverse Lock
-
1924-96018 SPRINGSPRING
-
2024-97427 SPRING
(Non-Handle)SPRING
(Non-Handle) -
2024-879894 SPRING
(Handle)SPRING
(Handle) -
2153-13194 RING, Retaining
(Handle)RING, Retaining
(Handle) -
2217-13195 PIN
(Handle)PIN
(Handle) -
2312756 BRACKET
(Handle)BRACKET
(Handle) -
2424-12754 SPRING
(Handle)SPRING
(Handle) -
2512758 LEVER
(Handle)LEVER
(Handle) -
2653-13194 RING, Retaining
(Handle)RING, Retaining
(Handle) -
2710-849838 SCREW, (.375-24 x 1.25)
(Electric - Non-Handle) SN# USA-0T979999/BEL-0P325499 & BelowSCREW, (.375-24 x 1.25)
(Electric - Non-Handle) SN# USA-0T979999/BEL-0P325499 & Below -
2710-849838 SCREW, (.375-24 x 1.250)
SN# USA-0T980000/BEL-0P325500 & UpSCREW, (.375-24 x 1.250)
SN# USA-0T980000/BEL-0P325500 & Up -
2841323A03 ATTACHING KIT, Steering Link
(Electric - Non-Handle)ATTACHING KIT, Steering Link
(Electric - Non-Handle) -
2912-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(Electric - Non-Handle)WASHER, (.390 x .625 x .062) Stainless Steel
(Electric - Non-Handle) -
3011-8M0042636 NUT, (.375-24) Stainless Steel
(Electric - Non-Handle)NUT, (.375-24) Stainless Steel
(Electric - Non-Handle) -
3196186A2 BRACKET ASSEMBLY
(Black)(Electric - Non-Handle)BRACKET ASSEMBLY
(Black)(Electric - Non-Handle) -
3210-1993325 SCREW, (M10 x 25 MM)
(Electric - Non-Handle)SCREW, (M10 x 25 MM)
(Electric - Non-Handle) -
3313-400248 LOCKWASHER, (M10)
(Electric - Non-Handle)LOCKWASHER, (M10)
(Electric - Non-Handle) -
34854801T2 SWIVEL HEAD ASSEMBLY
(Black)SWIVEL HEAD ASSEMBLY
(Black) -
35858338A1 SHAFT, Reverse LockSHAFT, Reverse Lock
-
3623-F536813 BUSHINGBUSHING
-
378M0036770 GUIDEGUIDE
-
3810-40011109 SCREW, (M5 x 25) Stainless SteelSCREW, (M5 x 25) Stainless Steel
-
3911-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
40858338A3 LINK ROD KIT, Reverse Lock
(May Be Used In Place Of Ref. #35)LINK ROD KIT, Reverse Lock
(May Be Used In Place Of Ref. #35) -
4110-858407 BOLT, (M5 x 6)
(May Be Used In Place Of Ref. #35)BOLT, (M5 x 6)
(May Be Used In Place Of Ref. #35) -
4216-854819 STUD, (M10 x 1.5 x 97)STUD, (M10 x 1.5 x 97)
-
4312-4002320 WASHERWASHER
-
4411-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
458M0039074 MOUNTMOUNT
-
46854729T1 COVER
(Starboard) (Black)COVER
(Starboard) (Black) -
47854728T1 COVER
(Port) (Black)COVER
(Port) (Black) -
4810-19943100 SCREW, (M8 x 100)SCREW, (M8 x 100)
-
4910-1994360 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
5012-36001 WASHERWASHER
-
5111-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
52NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
