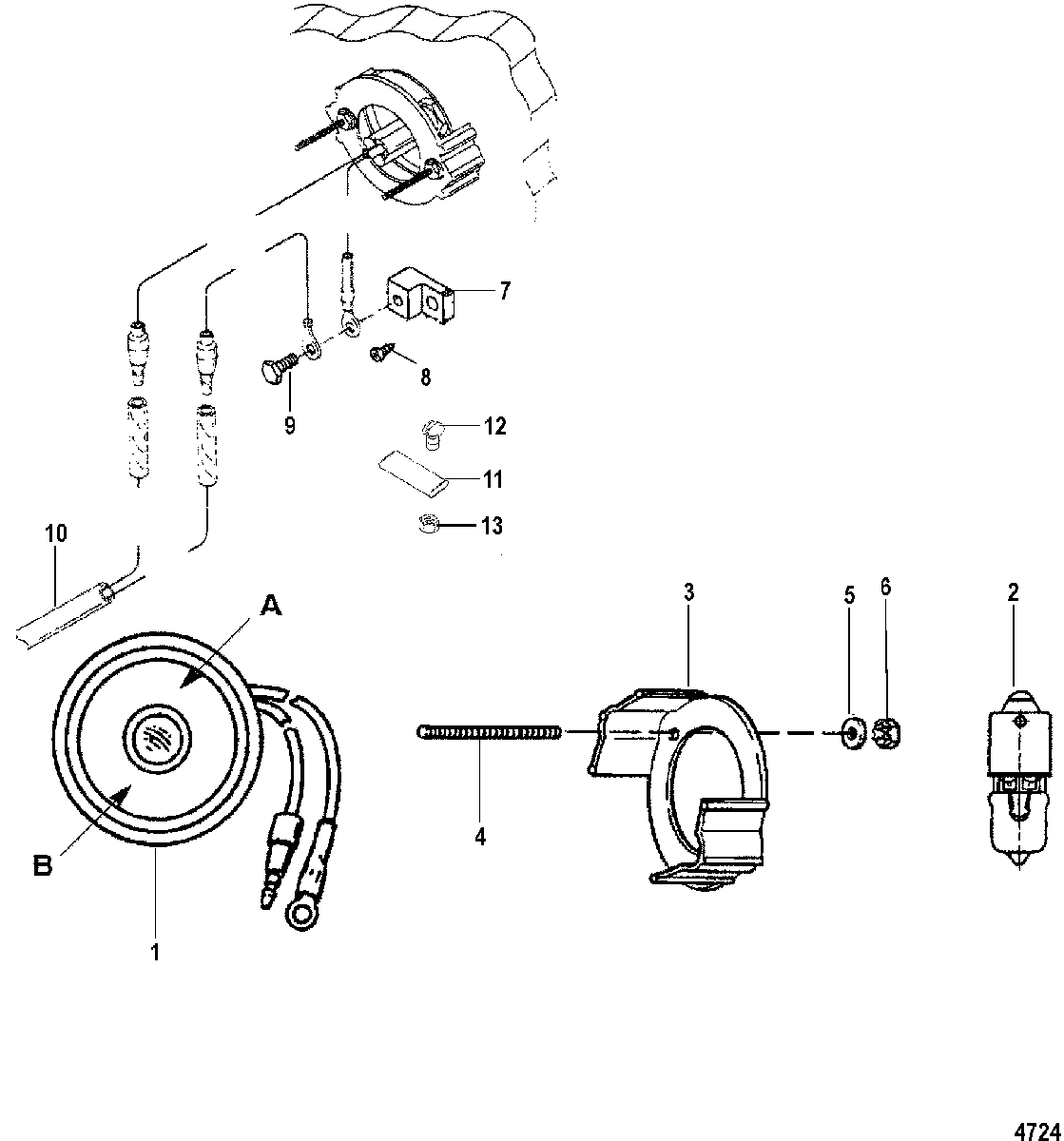

Visual Warning для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
117334A4 PLATE ASSEMBLY, Lamp MountingPLATE ASSEMBLY, Lamp Mounting
-
288-17429 LAMPLAMP
-
376424 BRACKETBRACKET
-
416-55422 STUD, (#10-32 x 2.00)STUD, (#10-32 x 2.00)
-
512-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
786-45915 TERMINAL BLOCKTERMINAL BLOCK
-
810-16324 SCREW, (#8 x .625)SCREW, (#8 x .625)
-
910-878607 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1084-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1185-623594 INSULATOR, (2.00 Inch)INSULATOR, (2.00 Inch)
-
1210-24231 SCREW, (#10-32 x .250)SCREW, (#10-32 x .250)
-
1311-27164 NUT AND LOCKWASHER, (#10-32)NUT AND LOCKWASHER, (#10-32)
