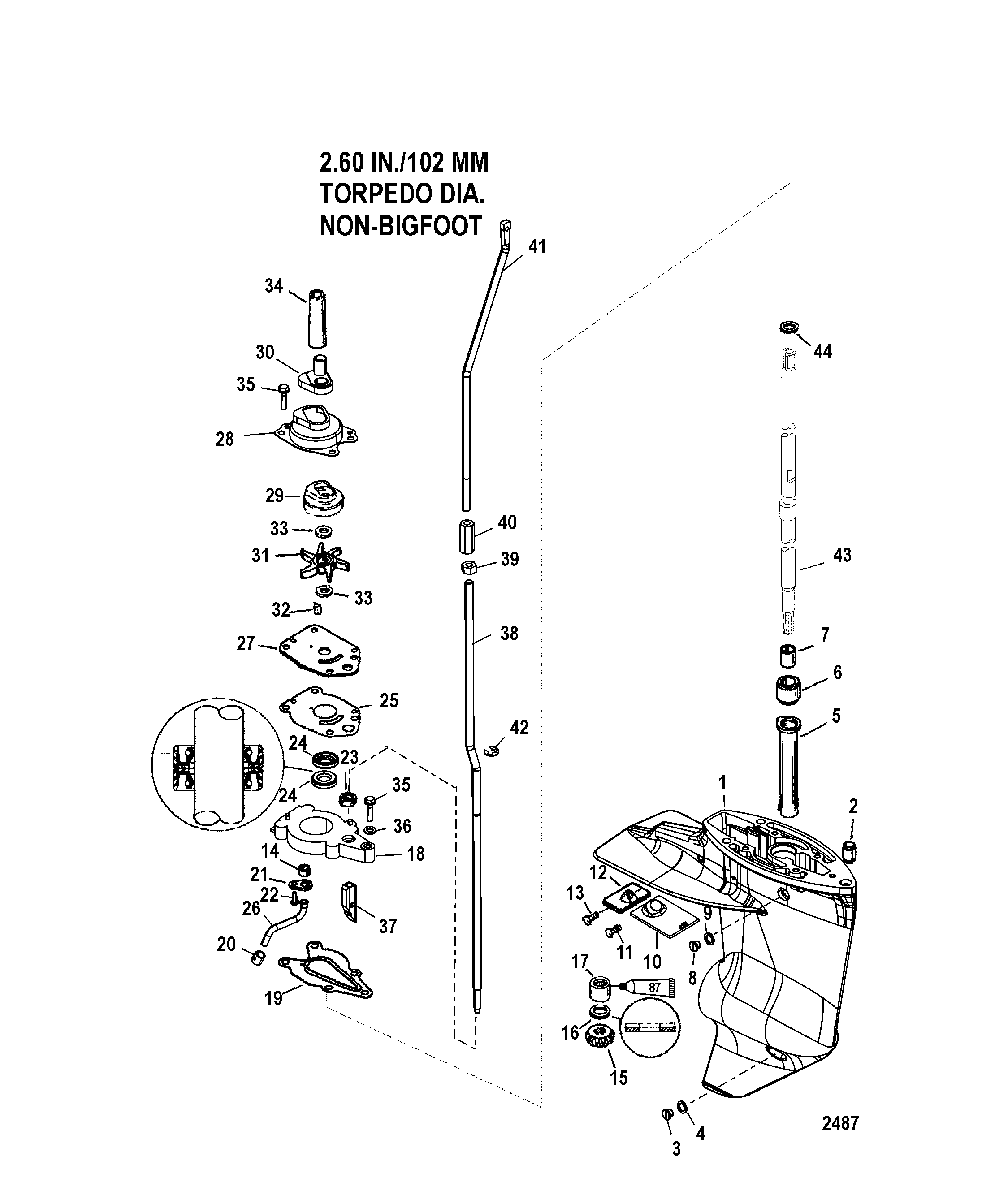

Gear Housing(Driveshaft)(2.00:1 Gear Ratio) для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999

№

Артикул

Название
-

1666-8833T33 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Short - Black)

GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Short - Black)

148 900 ₽
-

1666-8833T35 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Long - Black)

GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Long - Black)

176 040 ₽
1

1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
(Basic - Black)

GEAR HOUSING ASSEMBLY, Basic-Black
(Basic - Black)

28 880 ₽
2

23-12009 BUSHING, (.31 x .45 x .50)

BUSHING, (.31 x .45 x .50)

170 ₽
3

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
3

22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
SN# USA-0T979999/BEL-0P325499 & Below

FITTING KIT, Magnetic, Plug Fill/Drain
SN# USA-0T979999/BEL-0P325499 & Below

1 720 ₽
3

22-8M0058389 PLUG KIT, Drain (Magnetic)
SN# USA-0T980000/BEL-0P325500 & Up

PLUG KIT, Drain (Magnetic)
SN# USA-0T980000/BEL-0P325500 & Up

1 720 ₽
4

12-191833 SEAL

SEAL

60 ₽
5

822244A1 SLEEVE ASSEMBLY

SLEEVE ASSEMBLY

4 630 ₽
6

23-823944 SLEEVE

SLEEVE

1 600 ₽
7

23-823943 BUSHING

BUSHING

2 100 ₽
8

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
9

12-191833 SEAL

SEAL

60 ₽
10

35-421991 SCREEN

SCREEN

640 ₽
11

10-13954 SCREW, (.250-14 x .88)

SCREW, (.250-14 x .88)

290 ₽
12

97-42121Q02 ANODE ASSEMBLY

ANODE ASSEMBLY

1 330 ₽
13

10-13954 SCREW, (.250-14 x .88)

SCREW, (.250-14 x .88)

290 ₽
14

26-42133 SEAL

SEAL

190 ₽
15

43-8219251 GEAR, Pinion - 13-26

GEAR, Pinion - 13-26

4 260 ₽
16

12-41369 WASHER, Thrust

WASHER, Thrust

570 ₽
17

31-22756 BEARING, Roller

BEARING, Roller

2 650 ₽
18

46-42040T5 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

4 500 ₽
19

27-192043 GASKET

GASKET

350 ₽
20

26-33613 SEAL

SEAL

690 ₽
21

42375 RETAINER

RETAINER

150 ₽
22

10-48408 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

200 ₽
23

25-822236 QUAD RING

QUAD RING

330 ₽
24

26-413651 SEAL, Oil

SEAL, Oil

870 ₽
25

27-19202001 GASKET, Water Pump Plate
SN# USA-0T979999/BEL-0P325499 & Below

GASKET, Water Pump Plate
SN# USA-0T979999/BEL-0P325499 & Below

680 ₽
25

27-19202001 GASKET
SN# USA-0T980000/BEL-0P325500 & Up

GASKET
SN# USA-0T980000/BEL-0P325500 & Up

680 ₽
26

32-42185A1 TUBE ASSEMBLY, Water

TUBE ASSEMBLY, Water

1 330 ₽
27

42200 FACE PLATE

FACE PLATE

1 180 ₽
28

46-42089A2 COVER ASSEMBLY

COVER ASSEMBLY

5 520 ₽
29

NSS NOT SOLD SEPARATE, Insert

NOT SOLD SEPARATE, Insert

0 ₽
30

26-421021 SEAL

SEAL

500 ₽
31

47-42038Q02 IMPELLER
SN# USA-0T800999/BEL-0P267999 & Below

IMPELLER
SN# USA-0T800999/BEL-0P267999 & Below

2 820 ₽
31

47-42038Q02 IMPELLER
SN# USA-0T801000/BEL-0P268000 & Up

IMPELLER
SN# USA-0T801000/BEL-0P268000 & Up

2 820 ₽
32

28-42376A2 KEY ASSEMBLY

KEY ASSEMBLY

250 ₽
33

NSS NOT SOLD SEPARATE, Washer

NOT SOLD SEPARATE, Washer

0 ₽
34

444671 GUIDE

GUIDE

660 ₽
35

10-82684430 SCREW, (M6 x 30)

SCREW, (M6 x 30)

210 ₽
36

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
37

42039 CAM

CAM

2 330 ₽
38

855280 SHIFT SHAFT
(Short)

SHIFT SHAFT
(Short)

8 860 ₽
38

855281 SHIFT SHAFT
(Long)

SHIFT SHAFT
(Long)

12 990 ₽
39

11-400212 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

170 ₽
40

822419 COUPLER

COUPLER

1 940 ₽
41

8529941 SHIFT SHAFT (Upper)

SHIFT SHAFT (Upper)

5 970 ₽
42

53-42389 E RING

E RING

100 ₽
43

45-825537 DRIVESHAFT
(Short)

DRIVESHAFT
(Short)

24 100 ₽
43

45-825843 DRIVESHAFT
(Long)

DRIVESHAFT
(Long)

28 380 ₽
44

12-822248 THRUST WASHER

THRUST WASHER

480 ₽
-

26-41365A3 SEAL KIT

SEAL KIT

6 820 ₽
-

46-42089A5 PUMP KIT, Water

PUMP KIT, Water

5 380 ₽
