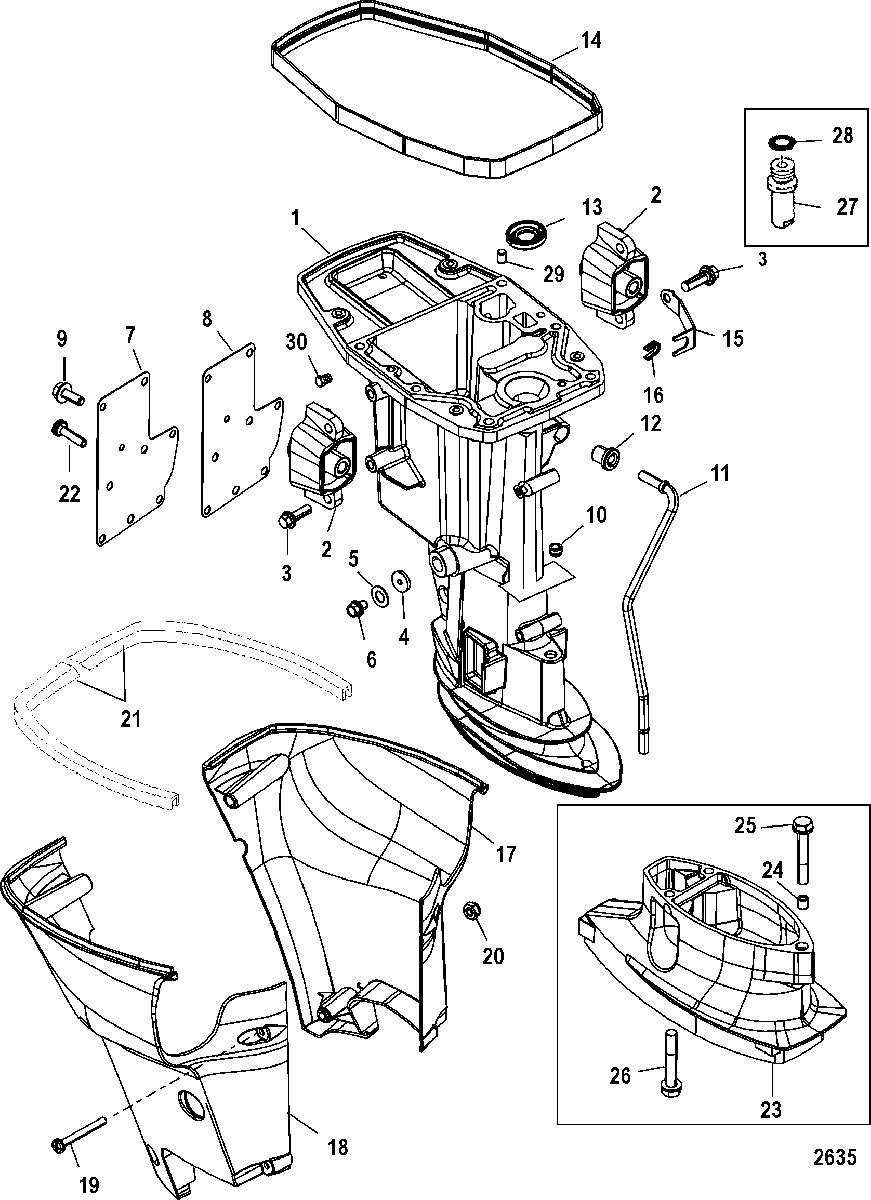

Driveshaft Housing для Mariner - 9.9 (4-STROKE) (323 cc) 0G760300 THRU 1B226999
-
№АртикулНазвание
-
11505-852995F1 HOUSING, Driveshaft
(Short Non-Bigfoot) (Long Bigfoot)HOUSING, Driveshaft
(Short Non-Bigfoot) (Long Bigfoot) -
11506-835409T1 HOUSING, Driveshaft
(Long Non-Bigfoot)(X-Long BigfootI)HOUSING, Driveshaft
(Long Non-Bigfoot)(X-Long BigfootI) -
2835410T2 MOUNT, Upper
SN# USA-0T800999/BEL-0P267999 & BelowMOUNT, Upper
SN# USA-0T800999/BEL-0P267999 & Below -
2835410T2 MOUNT, Upper
SN# USA-0T801000/BEL-0P268000 & UpMOUNT, Upper
SN# USA-0T801000/BEL-0P268000 & Up -
2856157T MOUNT, Upper
(Bigfoot)MOUNT, Upper
(Bigfoot) -
310-8136911 SCREW, (M8 x .98)SCREW, (M8 x .98)
-
4826276 BUMPERBUMPER
-
527-828816 GASKETGASKET
-
68288181 PLUG, DrainPLUG, Drain
-
7853577T COVERCOVER
-
827-854617 GASKETGASKET
-
910-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1026-827947 SEALSEAL
-
1132-852993 TUBE, Water
(Short)TUBE, Water
(Short) -
1132-855260 TUBE, Water
(Long)TUBE, Water
(Long) -
1132-855252 TUBE, Water
(Long Bigfoot)TUBE, Water
(Long Bigfoot) -
1132-855253 TUBE, Water
(X-Long Bigfoot)TUBE, Water
(X-Long Bigfoot) -
1226-8272411 SEALSEAL
-
1326-413651 SEAL, OilSEAL, Oil
-
14852432 SEALSEAL
-
15856179 BRACKETBRACKET
-
16856196 SLEEVESLEEVE
-
17850862F2 COVER
(Port) (Black)COVER
(Port) (Black) -
18850863F2 COVER
(Starboard) (Black)COVER
(Starboard) (Black) -
1910-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
2011-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
218224211 BUMPERBUMPER
-
2225-855299 GROMMETGROMMET
-
23853963F1 ADAPTOR
(Black) (Bigfoot)ADAPTOR
(Black) (Bigfoot) -
2423-12009 BUSHING, (.31 x .45 x .50)
(Bigfoot)BUSHING, (.31 x .45 x .50)
(Bigfoot) -
2510-82407110 SCREW, (M8 x 50)
(Bigfoot)SCREW, (M8 x 50)
(Bigfoot) -
2610-8240717 SCREW, (M8 x 30)
(Bigfoot)SCREW, (M8 x 30)
(Bigfoot) -
27825578A1 RELIEF VALVE ASSEMBLYRELIEF VALVE ASSEMBLY
-
2825-825579 O-RINGO-RING
-
2917-82364M PIN, DowelPIN, Dowel
-
3022-68307 PLUGPLUG
