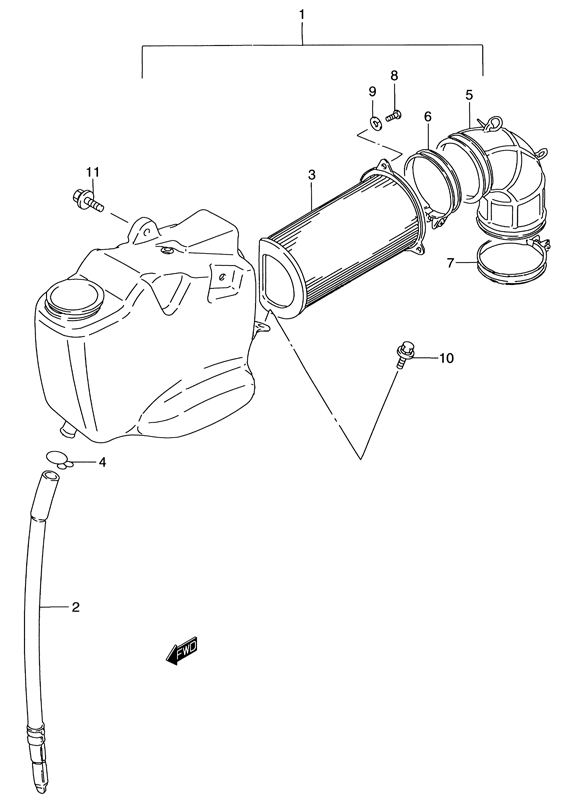

AIR CLEANER (FRONT) для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
113700-38A01 CLEANER ASSY., AIR (FRONT)CLEANER ASSY., AIR (FRONT)
-
213870-11458 ...TUBE, DRAIN...TUBE, DRAIN
-
313780-38A01 ...FILTER ASSY....FILTER ASSY.
-
409401-13409 ...CLIP...CLIP
-
513881-38A00 ...TUBE, OUTLET...TUBE, OUTLET
-
609402-56208 ...CLAMP...CLAMP
-
709402-58208 ...CLAMP...CLAMP
-
802112-04083 ...SCREW...SCREW
-
908321-01043 ...LOCK WASHER...LOCK WASHER
-
1001580-06163 BOLTBOLT
-
1101580-06203 BOLTBOLT
