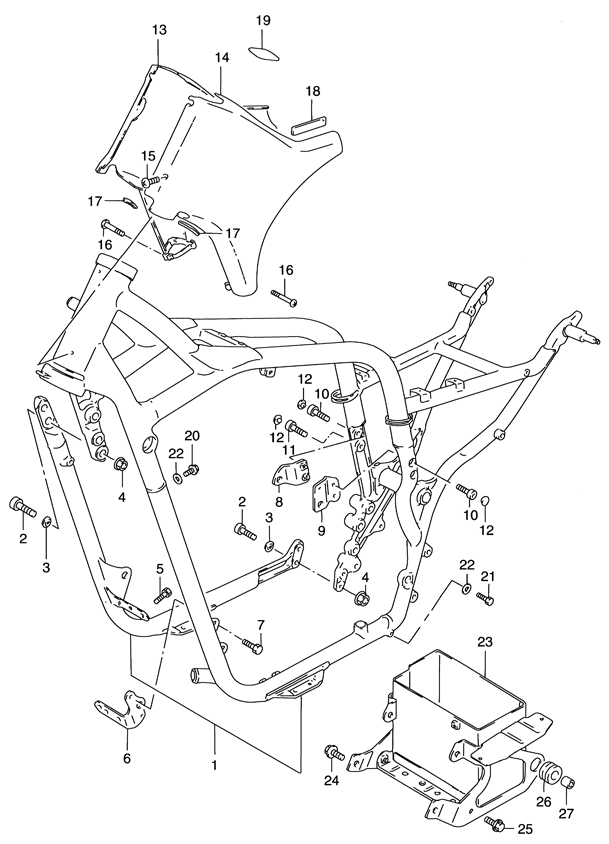

FRAME для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
1-141101-39813-33J FRAME SET (33J - BLACK)FRAME SET (33J - BLACK)
-
1-241101-39813-19A FRAME SET (19A - RED)FRAME SET (19A - RED)
-
209106-10019 ...BOLT (REAR)...BOLT (REAR)
-
309164-10010 ...WASHER...WASHER
-
408319-31103 ...NUT...NUT
-
501551-08203 ...BOLT (FRONT)...BOLT (FRONT)
-
641920-38A00-019 PLATE, NO.1 - LEFT (019 - BLACK)PLATE, NO.1 - LEFT (019 - BLACK)
-
701570-08163 BOLTBOLT
-
841950-38A11-019 PLATE, NO.1 - LEFT (019 - BLACK)PLATE, NO.1 - LEFT (019 - BLACK)
-
941960-38A10-019 PLATE, NO.3 - LEFT (019 - BLACK)PLATE, NO.3 - LEFT (019 - BLACK)
-
1009106-08070 BOLT (UPPER)BOLT (UPPER)
-
1107130-08303 BOLT (LOWER)BOLT (LOWER)
-
1209250-06004 CAPCAP
-
13-147350-38A01-33J COVER, FRAME HEAD, RIGHT (33J - BLACK)COVER, FRAME HEAD, RIGHT (33J - BLACK)
-
13-247350-38A01-19A COVER, FRAME HEAD - RIGHT (19A - RED)COVER, FRAME HEAD - RIGHT (19A - RED)
-
14-147360-38A01-33J COVER, FRAME HEAD - LEFT (33J - BLACK)COVER, FRAME HEAD - LEFT (33J - BLACK)
-
14-247360-38A01-19A COVER, FRAME HEAD - LEFT (19A - RED)COVER, FRAME HEAD - LEFT (19A - RED)
-
1502142-06103 SCREWSCREW
-
1602112-04253 SCREWSCREW
-
1768241-38A10 MOLDING, HEAD COVERMOLDING, HEAD COVER
-
1833652-07D00 CUSHION, FRAME HEAD COVERCUSHION, FRAME HEAD COVER
-
1947358-38A00 TAPE, FRAME HEAD COVERTAPE, FRAME HEAD COVER
-
2009360-06015 BOLT, AIR DUCTBOLT, AIR DUCT
-
2101550-06103 BOLT, DRAINBOLT, DRAIN
-
2209168-06004 GASKETGASKET
-
2341540-38A12 HOLDER, BATTERYHOLDER, BATTERY
-
2401551-10163 BOLTBOLT
-
2501550-06163 BOLTBOLT
-
2609320-12031 CUSHIONCUSHION
-
2709301-08009 SPACERSPACER
