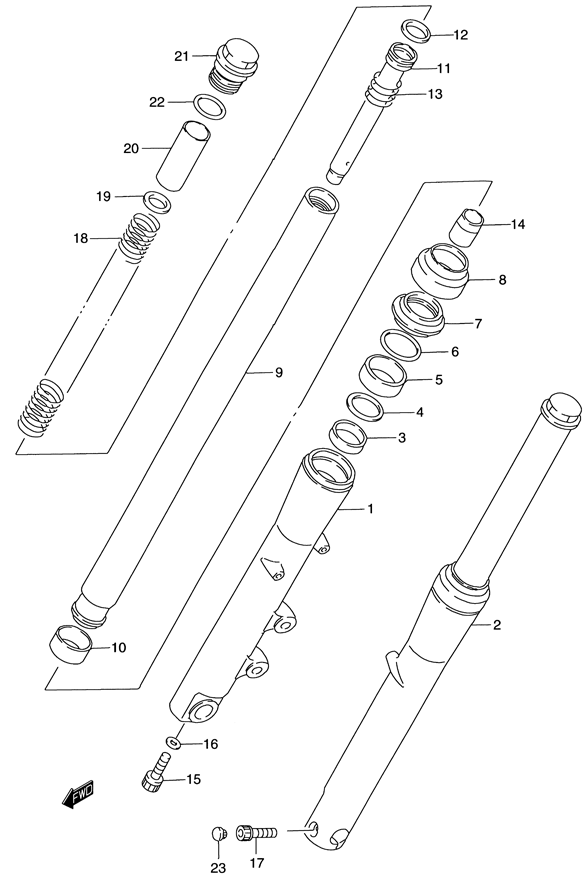

SUSPENSION - FRONT FORK для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
1A51103-39A70 DAMPER ASSY., FORK (FRONT/RIGHT)DAMPER ASSY., FORK (FRONT/RIGHT)
-
1B51104-39A70 DAMPER ASSY., FORK (FRONT/LEFT)DAMPER ASSY., FORK (FRONT/LEFT)
-
1-251131-39A70 ...TUBE (OUTER/RIGHT)...TUBE (OUTER/RIGHT)
-
2-251141-39A70 ...TUBE (OUTER/LEFT)...TUBE (OUTER/LEFT)
-
351152-39A40 ...BUSH, GUIDE...BUSH, GUIDE
-
451168-39A00 ...SPACER, SEAL...SPACER, SEAL
-
551153-19D00 ...OIL SEAL...OIL SEAL
-
651156-32B00 ...RING, STOPPER...RING, STOPPER
-
751173-19D00 ...DUST SEAL...DUST SEAL
-
851572-38B00 ...COVER, CASE...COVER, CASE
-
951110-39A41 ...TUBE (INNER)...TUBE (INNER)
-
1051121-39A40 ...BUSH, SLIDE...BUSH, SLIDE
-
1151146-39A00 ...PIPE, SEAT...PIPE, SEAT
-
1251196-32B00 ...RING, PISTON...RING, PISTON
-
1351177-32B00 ...SPRING, REBOUND...SPRING, REBOUND
-
1451195-38B00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1551147-48130 ...BOLT...BOLT
-
1651148-36011 ...GASKET...GASKET
-
1707130-08357 ...BOLT (LEFT)...BOLT (LEFT)
-
1851171-39A00 ...SPRING...SPRING
-
1951172-32B00 ...JOINT, SPRING...JOINT, SPRING
-
2051176-39A00 ...SPACER, SPRING...SPACER, SPRING
-
2151351-39A00 ...BOLT, INNER TUBE...BOLT, INNER TUBE
-
2251117-39A00 ...O-RING...O-RING
-
2309250-06009 CAPCAP
