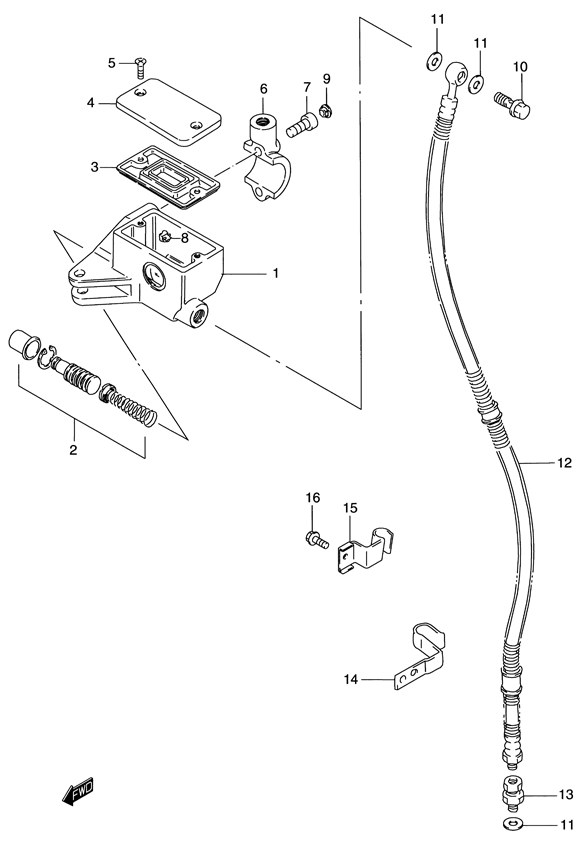

BRAKE - FRONT MASTER CYLINDER для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
159600-24B50 CYLINDER ASSY., MASTER (FRONT)CYLINDER ASSY., MASTER (FRONT)
-
259600-04810 ...PISTON AND CUP SET...PISTON AND CUP SET
-
359667-49460 ...DIAPHRAGM...DIAPHRAGM
-
459669-24B00 ...CAP...CAP
-
502122-04127 ...SCREW...SCREW
-
659671-38A00 ...HOLDER...HOLDER
-
707130-06207 ...BOLT...BOLT
-
859664-48B00 ...PROTECTOR...PROTECTOR
-
909250-05008 CAPCAP
-
1009360-10039 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
1109161-10009 WASHERWASHER
-
1259480-38A63 HOSE, BRAKE (FRONT)HOSE, BRAKE (FRONT)
-
1359290-43500 ADAPTER, BRAKE HOSEADAPTER, BRAKE HOSE
-
1559268-38A30 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
1601547-06107 BOLTBOLT
