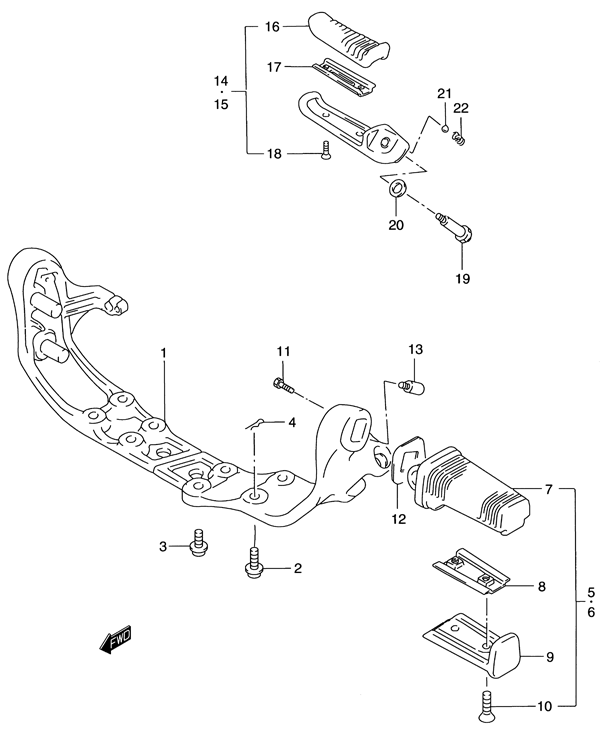

FOOTREST для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
143510-38E01 BRACKET, FOOTREST (FRONT)BRACKET, FOOTREST (FRONT)
-
209106-08064 BOLT (OUTER)BOLT (OUTER)
-
307120-08203 BOLT (INNER)BOLT (INNER)
-
409385-08005 PINPIN
-
543501-38B11 FOOTREST ASSY. (FRONT/RIGHT)FOOTREST ASSY. (FRONT/RIGHT)
-
643502-38B11 FOOTREST ASSY. (FRONT/LEFT)FOOTREST ASSY. (FRONT/LEFT)
-
743551-38B00 ...RUBBER...RUBBER
-
843580-38B10 ...PLATE, FOOTREST...PLATE, FOOTREST
-
943585-38B11 ...COVER...COVER
-
1009127-05018 ...SCREW...SCREW
-
1102112-35123 SCREW, RUBBER STOPSCREW, RUBBER STOP
-
1243546-38B01 WASHER, FOOTREST (FRONT)WASHER, FOOTREST (FRONT)
-
1343641-38B00 BOLTBOLT
-
14-243600-38E00 FOOTREST ASSY., PILLION (RIGHT)FOOTREST ASSY., PILLION (RIGHT)
-
15-243700-38E00 FOOTREST ASSY., PILLION (LEFT)FOOTREST ASSY., PILLION (LEFT)
-
1643612-38A00 ...RUBBER, PILLION FOOTREST...RUBBER, PILLION FOOTREST
-
1743632-38A00 ...PLATE, RUBBER STOPPER...PLATE, RUBBER STOPPER
-
1809127-05017 ...SCREW...SCREW
-
1909111-06050 BOLTBOLT
-
2008221-08164 SHIMSHIM
-
2106111-07004 BALLBALL
-
22-209440-05005 SPRINGSPRING
