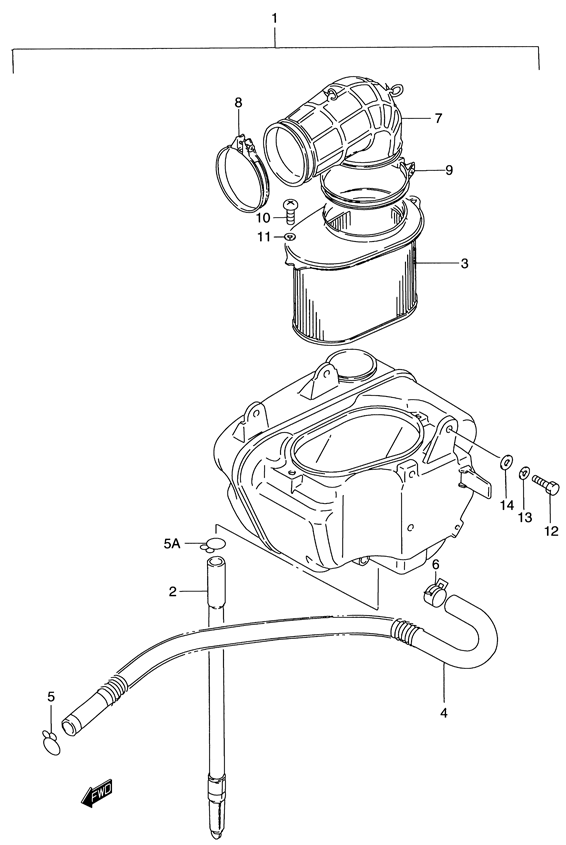

AIR CLEANER (REAR) для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
113700-38A51 CLEANER ASSY., AIR (REAR)CLEANER ASSY., AIR (REAR)
-
213870-11458 ...TUBE, DRAIN...TUBE, DRAIN
-
313780-38A51 ...FILTER ASSY....FILTER ASSY.
-
413850-38A50 ...TUBE SET, BREATHER...TUBE SET, BREATHER
-
509401-14301 ...CLIP...CLIP
-
5A09401-13409 ...CLIP...CLIP
-
609401-14404 ...CLIP...CLIP
-
713881-38A50 ...TUBE, OUTLET...TUBE, OUTLET
-
809402-58208 ...CLAMP...CLAMP
-
909402-78207 ...CLAMP...CLAMP
-
1002112-05083 ...SCREW...SCREW
-
1108321-01053 ...LOCK WASHER...LOCK WASHER
-
1201500-06207 BOLTBOLT
-
1308321-01067 LOCK WASHERLOCK WASHER
-
1409160-06019 WASHERWASHER
