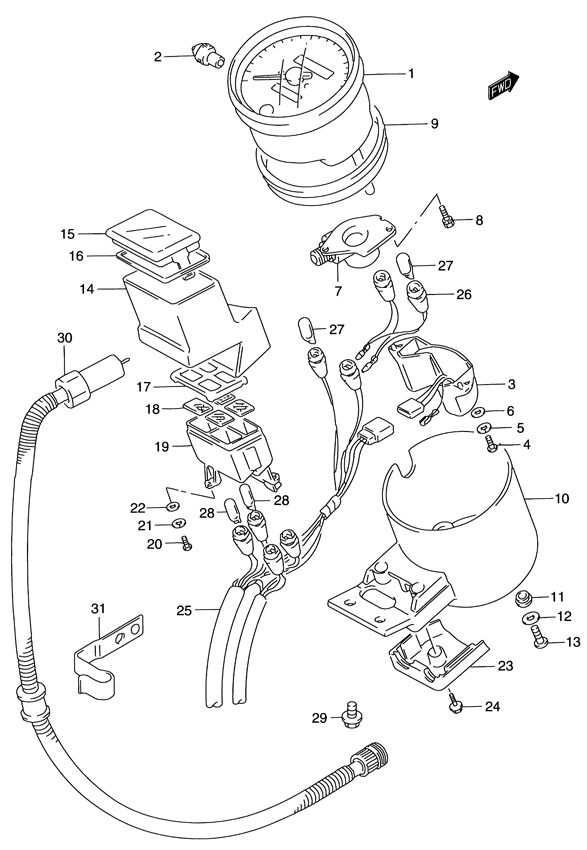

SPEEDOMETER для Suzuki VS800GL Y - 2000 года выпуска
-
№АртикулНазвание
-
1-334110-39AP0 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
1-534110-39AN0 SPEEDOMETER (KILO) (CANADA)SPEEDOMETER (KILO) (CANADA)
-
234124-39A10 KNOB, TRIPKNOB, TRIP
-
334490-39A10 UNIT, WATER TEMP WARNINGUNIT, WATER TEMP WARNING
-
402112-03083 SCREWSCREW
-
508321-21033 LOCK WASHERLOCK WASHER
-
608322-01033 WASHERWASHER
-
734131-19B00 BOX, METER GEARBOX, METER GEAR
-
802112-34103 SCREWSCREW
-
934288-39A00 CUSHION, METERCUSHION, METER
-
1034193-39A20 COVER, METERCOVER, METER
-
1134189-05A30 CUSHIONCUSHION
-
1234181-38A00 WASHERWASHER
-
1302112-04087 SCREWSCREW
-
1436381-39A20 BOX, PILOT LAMPBOX, PILOT LAMP
-
1536393-39AJ0 LENS, PILOT BOXLENS, PILOT BOX
-
1636395-38A00 CUSHIONCUSHION
-
1736386-38A00 PLATE, PILOT LENSPLATE, PILOT LENS
-
1836300-38850 LENS SET, PILOT LAMPLENS SET, PILOT LAMP
-
1936382-38B30 CASE, PILOT LAMPCASE, PILOT LAMP
-
2002112-03083 SCREWSCREW
-
2108321-21033 LOCK WASHERLOCK WASHER
-
2208322-01033 WASHERWASHER
-
2334152-39A21 COVER, PILOT BOXCOVER, PILOT BOX
-
2402112-74083 SCREWSCREW
-
2534173-39AC0 SOCKET, METER NO.1SOCKET, METER NO.1
-
2634174-39AJ0 SOCKET, METER NO.2SOCKET, METER NO.2
-
2709471-12103 BULB (12V,3W)BULB (12V,3W)
-
2809471-12108 BULB (12V,1.7W)BULB (12V,1.7W)
-
2902162-06163 SCREWSCREW
-
3034910-39A10 CABLE ASSY., SPEEDOMETERCABLE ASSY., SPEEDOMETER
-
3134938-38A02 GUIDE, METER CABLEGUIDE, METER CABLE
